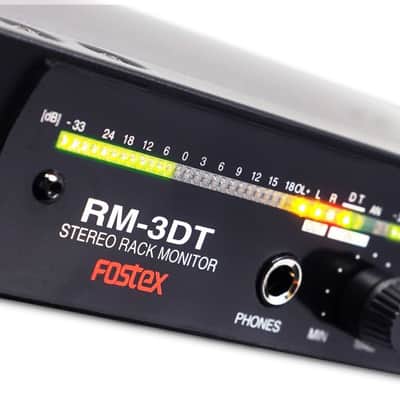

The Fostex RM-3DT is the Dante-equipped sibling of the RM-3: a 1U EIA rack stereo powered monitor with balanced analog and Dante network inputs in the same footprint as the conventional RM-3. It plays either or both channels from any two-channel Dante stream (44.1 / 48 / 88.2 / 96 kHz), with the same 110 x 40 mm drivers, 10W + 10W Class-D amp, and 26-dot LED meter.

Inputs and Monitoring

• Dante: RJ45, 2-channel; select either or both channels
• Analog: Balanced XLR (+4/0 dBu)
• Thru: Balanced XLR
• Headphones: 1/4" stereo, 20 mW + 20 mW into 32 Ω
• Meter: 26-dot LED (VU, VU+PEAK, VU+PEAK HOLD, PEAK+PEAK HOLD); four brightness levels

Specifications

• Drivers: 2 x 110 x 40 mm magnetically shielded elliptical cone
• Amplifier: 10W + 10W Class-D
• Frequency response: 200 Hz - 20 kHz
• SPL: 84 dB/W (1 m)
• THD: < 0.1%
• Dante sample rates: 44.1 / 48 / 88.2 / 96 kHz
• Power: AC 100-240V, 10W (standby < 0.5W)
• Dimensions (W x H x D): 482 x 44 x 284 mm (19.0" x 1.73" x 11.2"), including projections
• Weight: 3.5 kg (7.72 lb)

In the Box

• Fostex RM-3DT rack monitor
