The Fostex 6301NX is a compact 4" active monitor in the long-running 6301 series used in broadcast and production rooms since the early 1980s. This N-series revision pairs a sealed aluminum die-cast enclosure with a 20W Class-D amplifier, a dedicated 4" full-range driver, and auto standby that drops below 0.5W after about 25 minutes of quiet input. The NX is the transformer-balanced analog input version, with XLR balanced and 1/4" TS unbalanced on the rear.

Design

Controls sit flush on the face so the speaker is harder to knock offline or change level by accident. Width and height match earlier 6301B-H units for drop-in replacement. Optional EB-6301 wall bracket (sold separately) adds angled mounting.

Specifications

• Type: Sealed active monitor (aluminum die-cast)
• Driver: 4" (10 cm) full-range cone
• Amplifier: 20W Class-D
• Frequency response: 70 Hz - 15 kHz
• Max SPL: 98 dB
• Sensitivity: 85 dB/W (1 m)
• THD: 0.05% (1 kHz, 1W)

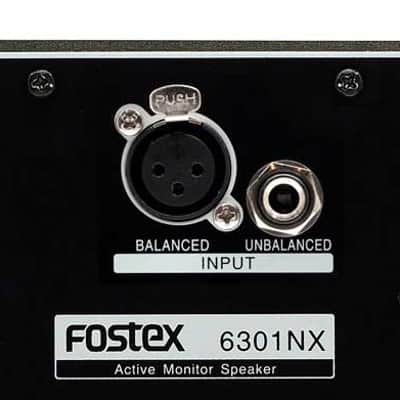

• Inputs: XLR-3-31 transformer-balanced (+4 dBu); 1/4" TS unbalanced (-14 dBV)
• Input impedance: 10 kΩ min
• Power: AC 100-240V, 10W (standby < 0.5W)
• Dimensions (W x H x D): 120 x 189 x 120 mm (4.72" x 7.44" x 4.72")
• Weight: 2.27 kg (5.00 lb)
• Sold as: Single

In the Box

• Fostex 6301NX active monitor
• IEC power cable (approx. 2 m)
