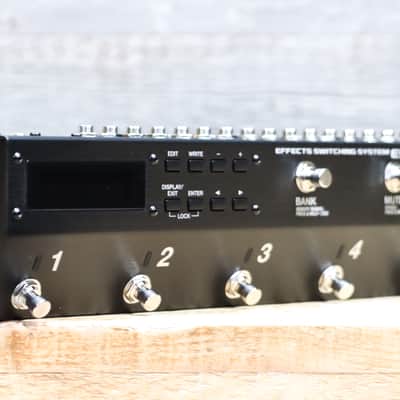

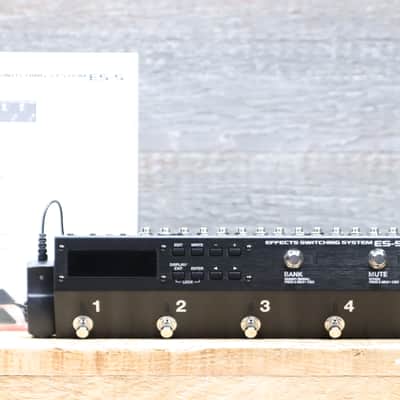

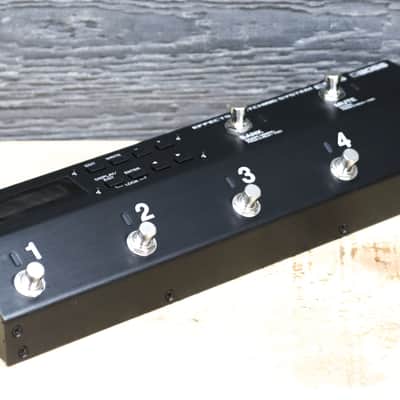

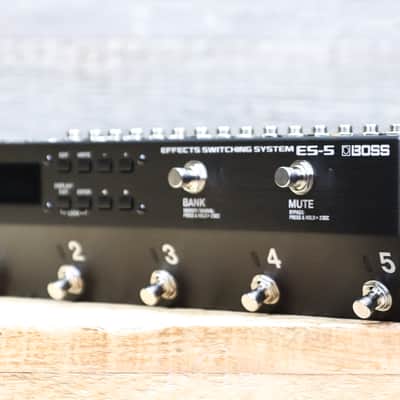

Up for sale a Boss ES-5 Effects Switching System Five-Loop Programmable Switching System w/Box - #Z3L6890!  We are an Authorized Dealer of Boss Products!  This effect pedal is an Open Box in Excellent Cosmetic Condition and it comes with the Full Manufacturer's Warranty*.  On this one, there are few scratches, marks, barely few tiny nicks, tiny paint chips and few other imperfections here and there (see 9th to 16th pictures), but really nothing major.  Unit comes with its AC Adaptor and Owner's Manual in its Original Box.

-

BOSS ES-5 EFFECTS SWITCHING SYSTEM

Unlimited Possibilities in Limited Space

Based on the same concept and features as the flagship ES-8, the ES-5 is pared down to offer more practical and essential use options for typical guitarists and bassists, and is drastically reduced in size to fit ready-made, standard-size boards. The innovation in creativity of pedalboard systems made possible by the ES-8 has become more available and affordable. Expand your board just by one size and incorporate the ES-5, then you are in for a whole new world of musical expression, not just another utility tool. From this day on, the use of stompboxes will never be the same.

-

FEATURES:

- Programmable switching system with five loops

- Analog circuit design to protect your pure tone

- Unprecedented routing flexibility with the ability to change the routing order and create a parallel effect chain

- External control parameters such as delay time can be saved for each patch

- Buffers can be turned on/off individually for the input and output and stored in each patch; level variability for output buffer

- Highly reliable footswitches with switch-noise mute capability

- Backlit LCD display shows detailed information at a glance

- 200 patch memories provide unmatched capability for actively gigging musicians

- Completely customizable pedal function assignments

- Pro-level practicality and creativity in a compact body

-

SPECIFICATIONS:

Modes : Memory mode/Manual mode

Loops : 5

Patch Memory : 200

Nominal Input Level : INPUT, RETURN 1--5: -10 dBu

Maximum Input Level : INPUT, RETURN 1--5: +13 dBu

Input Impedance : INPUT: 1 M ohm (Buffer: On)

Nominal Output Level : SEND 1--5, OUTPUT, TUNER: -10 dBu

Maximum Output Level : SEND 1--5, OUTPUT, TUNER: +13 dBu

Output Impedance : OUTPUT, TUNER: 1 k ohm (Mixer: On)

Recommended Load Impedance : 10 k ohms or greater

Controls:

- NUMBER 1--5 switch, BANK switch, MUTE switch

- EDIT button, WRITE button, - button, + button, DISPLAY/EXIT button

- ENTER button, Cursor left button, Cursor right button

Display : 16 characters, 2 lines (backlit LCD)

Indicator : NUMBER 1--5 indicator, BANK (MEMORY/MANUAL) indicator, MUTE indicator

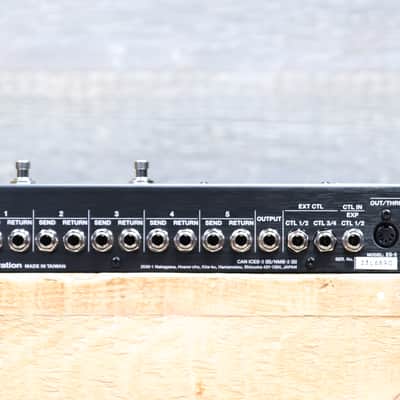

Connectors:

- INPUT jack

- SEND 1--5 jacks

- RETURN 1--5 jacks

- OUTPUT jack

- TUNER jack: 1/4-inch phone type

- EXT CTL CTL 1/2, CTL 3/4 jacks, CTL IN EXP CTL 1/2 jack: 1/4-inch TRS phone type

- MIDI connectors (IN, OUT/THRU)

- DC IN jack

Power Supply : AC adaptor

Current Draw : 125 mA

Accessories : AC adaptor, Rubber foot x 4, Owner's manual, Leaflet "USING THE UNIT SAFELY"

SIZE AND WEIGHT:

- Width : 337 mm, 13-5/16 inches

- Depth : 97 mm, 3-⅞ inches

- Height : 68 mm, 2-11/16 inches

Weight : 1.3 kg / 2 lbs 14 oz.

-

*The full manufacturer's warranty is only valid through us.

All our items are fully verified by our pro technician and/or adjusted by our pro luthier before being very carefully packed by our pro service team here at the shop prior to shipment, buy with confidence!

---------------------------------------------------------------------

Canadian customers must pay any applicable sales taxes.

Please refer to the shipping and payments details for prices.

**Depending on where you are located in Canada, free shipping may not apply to certain heavy or oversize orders.
 You can contact us for confirmation before buying.
