THE WIZARD 12" Lead / Rhythm Guitar Speaker- British

SKU:122317A-U

The Eminence Wizard guitar speaker will put a spell on your tone. Very articulate, but with a hint of grit. Nice sustain and exceptionally good tight bottom. Classic Rock tones of the 60s and 70s.

Characteristics

Series: Redcoats

Model: The Wizard

Application: 12" Open or Closed Back

Configuration: 1, 2, or 4 X 12"

Low End Response: Aggressive

Low End Shape: Fat/Chunky

Mid-Range Response: Aggressive

Mid-Range Shape: Warm

High-End Response: Aggressive

Volume/Power: Loudest

Overall Coloration*: Very articulate, but with a hint of grit. Nice sustain and exceptionally good tight bottom. Cross between Private Jack and The Governor

Break-up Modes: Medium

Power Range: Up to 75 watts

Instrument*: Lead/Rhythm Guitar

Genre of Music*: Classic Rock tones of the 60's and 70's

SPECIFICATION

Nominal Basket Diameter: 12", 305 mm

Nominal Impedance*: 8Ω

Power Rating*: 75W

Resonance: 89 Hz

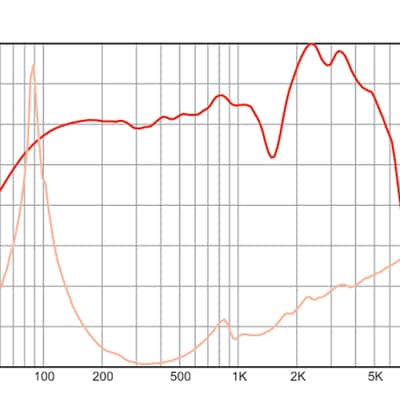

Usable Frequency Range: 80 Hz - 5.3 kHz

Sensitivity*: 102.8 dB

Magnet Weight: 56 oz.

Gap Height: 0.312", 7.9 mm

Voice Coil Diameter: 1.75", 44 mm

THIELE & SMALL PARAMETERS

Resonant Frequency (fs): 89 Hz

DC Resistance (Re): 6.13Ω

Coil Inductance (Le): 0.38m H

Mechanical Q (Qms): 11.48

Electromagnetic Q (Qes): 0.49

Total Q (Qts): 0.47

Compliance Equivalent Volume (Vas): 41.5 liters / 1.47 cu.ft.

Peak Diaphragm Displacement Volume (Vd): 41.6 cc

Mechanical Compliance of Suspension (Cms): 0.11 mm/NBL Product (BL)14.4 T-M

Diaphragm Mass Inc. Airload (MMs): 30 grams

Efficiency Bandwidth Product (EBP): 181

Maximum Linear Excursion (Xmax): 0.8 mm

Surface Area of Cone (Sd)519.5 cm2

Maximum Mechanical Limit (Xlim): N/A

MOUNTING INFORMATION

Recommended Enclosure Volume

• Sealed Acceptable
• Vented N/a

Driver Volume Displaced: 0.079 cu.ft. / 2.25 liters

Overall Diameter: 12.03", 305.6 mm

Baffle Hole Diameter: 11.07", 281.2 mm

Front Sealing Gasket: Yes

Rear Sealing Gasket: Yes

Mounting Holes Diameter: 0.25", 6.4mm

Mounting Holes B.C.D: 11.59", 294.4mm

Depth: 5.2", 132.1 mm

Net Weight: 11.1 lbs, 5.03 kg

Shipping Weight: 12.5 lbs, 5.67 kgs

MATERIALS OF CONSTRUCTION

Coil Construction Copper voice coil

Coil Former Nomex former

Magnet Composition Ferrite magnet

Core Details Non-vented core

Basket Materials Pressed steel basket

Cone Composition Paper cone

Cone Edge Composition Paper cone edge

Dust Cap Composition Zurette dust cap
