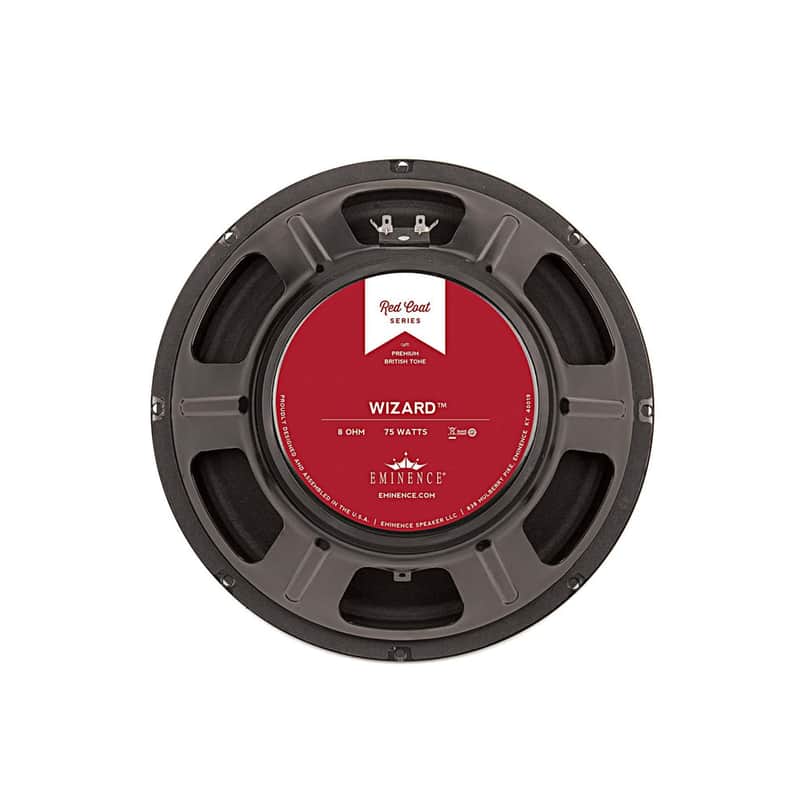

THE WIZARD 12" Lead / Rhythm Guitar Speaker- BritishSKU:122317A-UThe Eminence Wizard guitar speaker will put a spell on your tone. Very articulate, but with a hint of grit. Nice sustain and exceptionally good tight bottom. Classic Rock tones of the 60s and 70s.CharacteristicsSeries: RedcoatsModel: The WizardApplication: 12" Open or Closed BackConfiguration: 1, 2, or 4 X 12"Low End Response: AggressiveLow End Shape: Fat/ChunkyMid-Range Response: AggressiveMid-Range Shape: WarmHigh-End Response: AggressiveVolume/Power: LoudestOverall Coloration*: Very articulate, but with a hint of grit. Nice sustain and exceptionally good tight bottom. Cross between Private Jack and The GovernorBreak-up Modes: MediumPower Range: Up to 75 wattsInstrument*: Lead/Rhythm GuitarGenre of Music*: Classic Rock tones of the 60's and 70'sSPECIFICATIONNominal Basket Diameter: 12", 305 mmNominal Impedance*: 8ΩPower Rating*: 75WResonance: 89 HzUsable Frequency Range: 80 Hz - 5.3 kHzSensitivity*: 102.8 dBMagnet Weight: 56 oz.Gap Height: 0.312", 7.9 mmVoice Coil Diameter: 1.75", 44 mmTHIELE & SMALL PARAMETERSResonant Frequency (fs): 89 HzDC Resistance (Re): 6.13ΩCoil Inductance (Le): 0.38m HMechanical Q (Qms): 11.48Electromagnetic Q (Qes): 0.49Total Q (Qts): 0.47Compliance Equivalent Volume (Vas): 41.5 liters / 1.47 cu.ft.Peak Diaphragm Displacement Volume (Vd): 41.6 ccMechanical Compliance of Suspension (Cms): 0.11 mm/NBL Product (BL)14.4 T-MDiaphragm Mass Inc. Airload (MMs): 30 gramsEfficiency Bandwidth Product (EBP): 181Maximum Linear Excursion (Xmax): 0.8 mmSurface Area of Cone (Sd)519.5 cm2Maximum Mechanical Limit (Xlim): N/AMOUNTING INFORMATIONRecommended Enclosure VolumeSealed AcceptableVented N/aDriver Volume Displaced: 0.079 cu.ft. / 2.25 litersOverall Diameter: 12.03", 305.6 mmBaffle Hole Diameter: 11.07", 281.2 mmFront Sealing Gasket: YesRear Sealing Gasket: YesMounting Holes Diameter: 0.25", 6.4mmMounting Holes B.C.D: 11.59", 294.4mm Depth: 5.2", 132.1 mm Net Weight: 11.1 lbs, 5.03 kg Shipping Weight: 12.5 lbs, 5.67 kgsMATERIALS OF CONSTRUCTIONCoil Construction Copper voice coil
Coil Former Nomex former
Magnet Composition Ferrite magnet
Core Details Non-vented core
Basket Materials Pressed steel basket
Cone Composition Paper cone
Cone Edge Composition Paper cone edge
Dust Cap Composition Zurette dust cap
PriceC$210.73
+ C$109.01 Shipping
Only 1 left
Grab it before it's gone
