All the World's YOUR Stage

When it comes to portable live sound solutions, it doesn't get any better than STAGEPAS. With impressive power and sound quality, intuitive control, and a comprehensive array of flexible features, including a new Bluetooth® wireless audio streaming function, this all-in-one PA system builds on the STAGEPAS legacy of providing everything you need to transform any environment into your own personal stage.

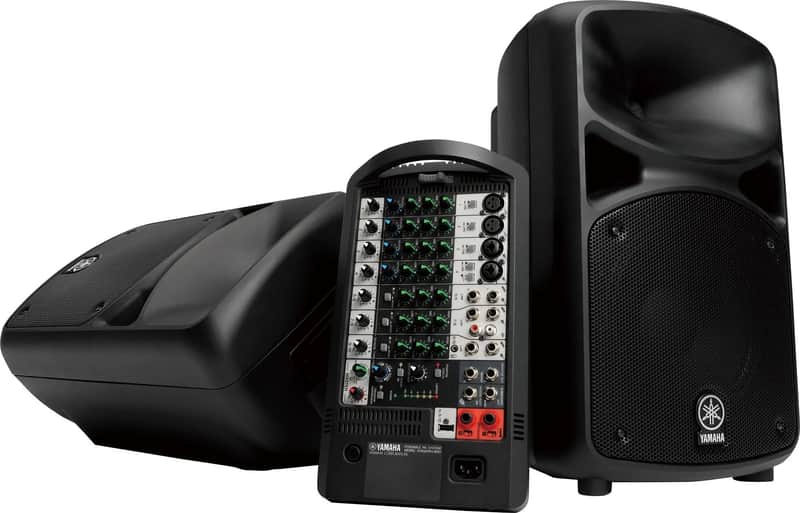

680-watt, portable PA system with 10-channel powered mixer, two 10" speakers, a Bluetooth input, SPX digital reverbs, an onboard feedback suppressor and versatile EQ.

• 680W (340W + 340W) power output
• High quality speakers (LF:10" woofer/ HF:1.4" voice coil compression driver)

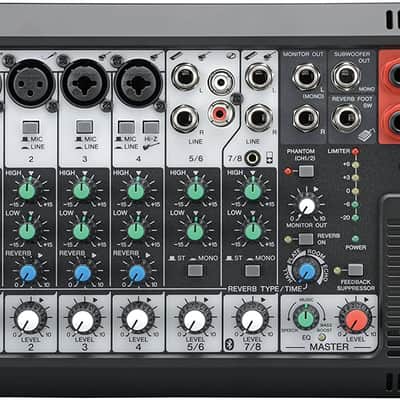

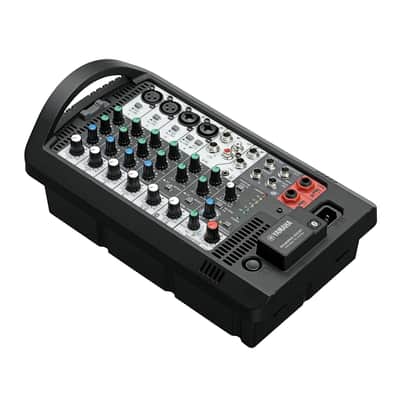

• Detachable 10-channel mixer (4 mono/line + 6 mono / 3 stereo line)
• Bluetooth audio streaming
• 1-Knob Master EQ™ with virtual bass boost
• High resolution SPX digital reverbs (4 types, parameter control)
• Onboard feedback suppressor
• Great-sounding 3-band channel EQ
• Switchable stereo/ mono inputs
• Hi-Z (high impedance) inputs
• Phantom power
• Monitor and Subwoofer outputs
• Optional reverb footswitch

STAGEPAS 400BTSTAGEPAS 600BT
STAGEPAS 400BTSTAGEPAS 600BTOutlineTypePowered mixer with 2 passive speakersPowered mixer with 2 passive speakersMixing capabilityMixing channels810Input channel functionsHi-Z switch: CH4, ST/MONO switch: CH5/6-7/8Hi-Z switch: CH4, ST/MONO switch: CH5/6-9/10Output channel functionsFeedback suppressor, 1-Knob Master EQ™Feedback suppressor, 1-Knob Master EQ™I/OInputs4 mono mic / line + 4 mono / 2 stereo line4 mono mic / line + 6 mono / 3 stereo linePhantom power+30V (CH1, 2)+30V (CH1, 2)OutputsSPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPFSPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPFBluetoothBluetooth Ver.4.1, A2DP v1.2, Maximum Range: Approx. 10 mBluetooth Ver.4.1, A2DP v1.2, Maximum Range: Approx. 10 mControl and othersReverb foot switchReverb foot switchInput Channel FunctionHi-ZCH4CH4EQ HIGHHIGH Shelving: 8 kHzHIGH Shelving: 8 kHzEQ LOWLOW Shelving: 100 HzLOW Shelving: 100 HzEQ MID-MID peaking: 2.5 kHzOn-board processorsDSPSPX digital reverb (4 program, parameter control)SPX digital reverb (4 program, parameter control)On-board amplifiersMaximum output power @4ohms400W (200 W + 200 W) (Dynamic), 360W (180W + 180W) (Continuous)680W (340 W + 340 W) (Dynamic), 560W (280W + 280W) (Continuous)General specificationsSpeaker typeTwo-way bass-relfex speakersTwo-way bass-relfex speakersFrequency range (-10dB)55 Hz - 20 kHz55 Hz - 20 kHzNominal coverageH90°90°V60°60°Floor Monitor Angle50°50°ComponentsLF8" (20 cm) cone10" (25 cm) coneHF1" (2.54 cm) voice coil compression driver1.4" (3.56 cm) voice coil compression driverMaximum output level (1m; on axis)125 dB SPL / speaker129 dB SPL / speakerPower requirements100 V - 240 V 50 Hz/60 Hz100 V - 240 V 50 Hz/60 HzPower consumption30 W (Idle), 70 W (1/8 Power)35 W (Idle), 100 W (1/8 Power)Pole socket34.8-35.2 mm pole socket with StageLok™34.8-35.2 mm pole socket with StageLok™AccessoriesCover panel, Power cord (2m), 2 x Speaker cables (6m), 12 x Non-skid pads, 2 x Ferrite Cores, 2 x Cable tiesCover panel, Power cord (2m), 2 x Speaker cables (6m), 12 x Non-skid pads, 2 x Ferrite Cores, 2 x Cable tiesOptionsYamaha BMS10A (mic stand adaptor) for mixer mount, FC5 (foot switch) for reverb ON/OFFYamaha BMS10A (mic stand adaptor) for mixer mount, FC5 (foot switch) for reverb ON/OFFOthersHandle: 1 x TopHandle: 1 x TopDimensions (W x H x D)Speaker 289 x 472 x 275 mm, Mixer 308 x 180 x 116 mmSpeaker 335 x 545 x 319 mm, Mixer 348 x 197 x 135 mmWeight18.3 kg (40.3 lbs) (2 x Speaker 7.7kg + Mixer 2.9kg)25.6 kg (56.4 lbs) (2 x Speaker 10.9 kg + Mixer 3.8 kg)
