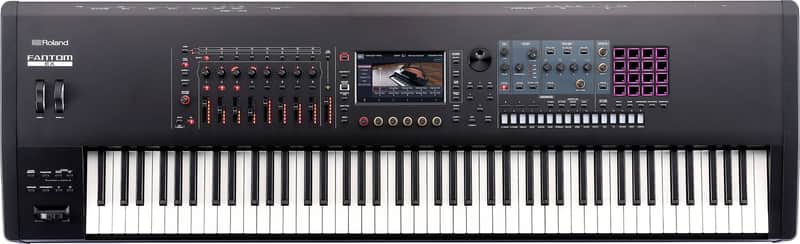

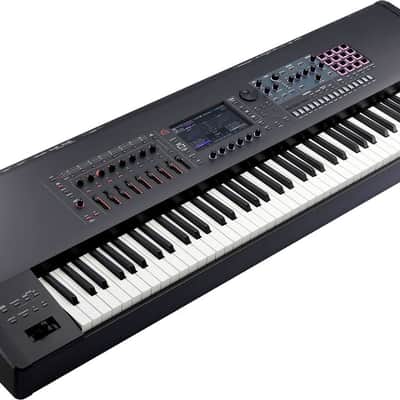

The Roland FANTOM-8EX is an 88-key flagship synthesizer workstation that pairs Roland's premium PHA-50 hammer-action keyboard with the full FANTOM EX sound engine platform. With five advanced sound engines, a 7" color touchscreen, 11 preinstalled expansion titles, and over 7,000 sounds housed in a metal chassis, the FANTOM-8EX is the top-tier model in the FANTOM EX lineup, built for pianists and keyboardists who demand weighted keys without compromising synthesis power.

PHA-50 Hammer-Action Keyboard

The FANTOM-8EX features 88 PHA-50 keys with a wood and plastic hybrid structure, escapement, ebony/ivory feel surfaces, and channel aftertouch. This hammer-action keybed delivers the realistic piano response that pianists require, with graded weighting from heavy in the bass to light in the treble. It provides the most expressive playing experience in the FANTOM EX lineup, making it the natural choice for performers who rely on nuanced dynamics and acoustic piano realism.

Internally, the FANTOM-8EX is identical to the rest of the EX series. Five sound engines deliver the full Roland sound palette: ZEN-Core (up to 256-voice polyphony), ACB (component-level analog circuit modeling), V-Piano (physically modeled grand pianos), SuperNATURAL (acoustic and electric instruments), and VTW (tonewheel organ). Eleven expansion titles are preinstalled, including JUPITER-8, SH-101, and JX-3P ACB Expansions; n/zyme and JD-800 Model Expansions; the German Concert V-Piano Expansion 01; and more.

The n/zyme wavetable engine, dual CV/Gate outputs for modular integration, a 6-in/32-out USB audio interface (24-bit/48 kHz), and a 16-track sequencer with TR-REC round out a complete production and performance platform. Studio-grade effects include the Shimmer Reverb and Modulation Reverb algorithms developed specifically for the EX series.

Specifications

• Keyboard: 88 keys, PHA-50 hammer-action (Wood and Plastic Hybrid Structure, Escapement, Ebony/Ivory Feel, channel aftertouch)
• Sound Engines: ZEN-Core, ACB, V-Piano, SuperNATURAL, VTW Organ, n/zyme
• Polyphony: 256 voices (ZEN-Core)
• Sounds: 7,000+ tones, 90+ drum kits
• Parts: 16 zones (internal + external), up to 4 sound layers each
• Scenes: 128 x 4 banks
• Effects: Multi-effect per part, 2 insert effects, 6 drum part compressors, Master Compressor, Master EQ, 90 effect types including Shimmer Reverb and Modulation Reverb
• Sequencer: 16 MIDI tracks, Realtime/Step/TR-REC recording

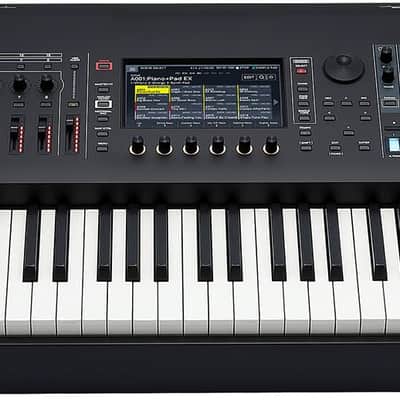

• Display: 7" color touchscreen
• Audio Interface: USB, 24-bit/48 kHz, 6 inputs / 32 outputs
• Connections: Main Out (1/4" + XLR), Sub Out (4 x 1/4"), Headphones (1/4"), Mic Input (2 x XLR-1/4" combo), MIDI In/Out/Thru, 2 x CV Out, 2 x Gate Out, 4 x USB-A, 1 x USB-B, 3 Foot Pedal jacks
• Dimensions: 56-7/16" x 17-5/16" x 6-1/16" (1,432 x 439 x 153 mm)
• Weight: 61 lbs 2 oz (27.7 kg)

In the Box

• Roland FANTOM-8EX Synthesizer
• Power Cable
• Operating Instructions
