Yorkville EXM400 Compact Portable PA System

The Yorkville EXM400 Compact Portable PA System features a powered 10" subwoofer with an integrated mixer, two satellite speakers with 2x 3.5" drivers each, pole-through conductors (no extra speaker cables), Bluetooth playback, and onboard 24-bit digital effects. The complete system weighs 43 lb (19.5 kg) and assembles up to 78" (198 cm) tall.

System Layout

The subwoofer / mixer module is the system hub. Two high-efficiency satellites mount on the included two-piece pole stands, which carry signal through the poles. Tops can nest together for transport, and a padded gig bag holds both satellites and the pole segments. An optional EXM400SATKIT adds a second pair of satellites for wider coverage.

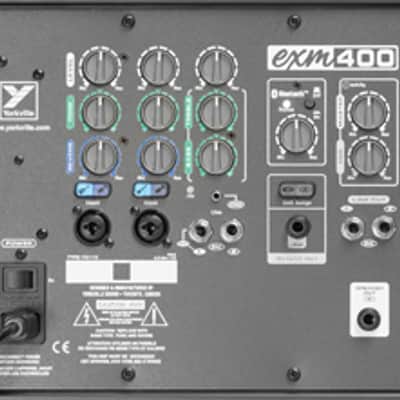

Mixer and Connectivity

• Channels 1 and 2: XLR / 1/4" combo inputs with level, tone, and reverb
• Channel 3: dual 1/4" and 1/8" TRS stereo with level, treble, and bass
• Bluetooth: dedicated streaming level control
• Masters: sub level and master level
• Effects: 24-bit room reverb, hall reverb, and delay

Specifications

• System type: Powered compact PA (active sub + satellites)
• Power: 400 W program (800 W peak)
• Max SPL: 121 dB continuous
• Frequency response: 50 Hz - 20 kHz (±3 dB)
• Crossover: 240 Hz
• Subwoofer: 1x 10" (250 W program, Class D)
• Satellites: 2x 3.5" drivers each (75 W program per channel, Class AB)
• HF dispersion: 150° x 60°
• Enclosure: ABS
• Subwoofer dimensions (D x W x H): 14.5" x 15.5" x 14.5" (36.8 x 39.3 x 36.8 cm)
• Assembled system height: up to 78" (198 cm)
• Weight (complete system): 43 lb (19.5 kg)
• Made in: Canada

In the Box

• EXM400 powered subwoofer / mixer
• 2 satellite speakers
• 2 two-piece speaker poles with through-conductors
• Mic stand adapter for satellite mounting
• Padded nylon gig bag for satellites and poles
• IEC power cable
