The ADAM Audio Sub12 is a 12" active studio subwoofer that extends any near or midfield monitoring system down to 22 Hz with 115 dB peak SPL. The heavy-duty woofer with extended cone travel and 2" voice coil is driven by a 200W PWM amplifier with over 90% efficiency. A down-firing bass reflex tube avoids ventilation noise, and an additional output allows daisy-chaining multiple subwoofers.
Amplification & Performance
- Driver: 12" paper cone, 2" voice coil
- Amplifier: 200W RMS / 300W music (PWM)
- Frequency response: 22 Hz to 150 Hz
- Max SPL: 115 dB at 1m
- THD: 1% above 60 Hz
- Crossover: Variable 50 to 150 Hz
Controls
- Level: -60 to +6 dB
- Phase: 0/180 degree switch
- High-pass filter: 85 Hz switchable
- Power mode: Signal-on / continuous

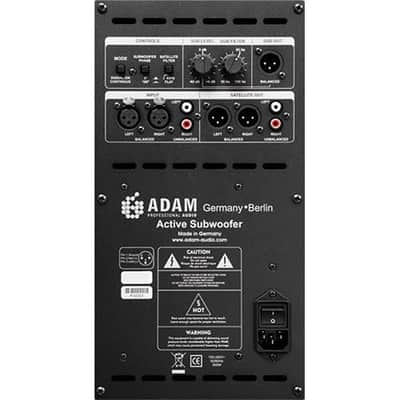

Connectivity
- Inputs: XLR balanced / RCA unbalanced
- Outputs: XLR balanced / RCA unbalanced (daisy-chain capable)
Specifications
- Dimensions: 600 x 360 x 450 mm (23.5 x 14 x 17.5")
- Weight: 26 kg (57.3 lb)
- Warranty: 5 years (2 + 3 with registration)
