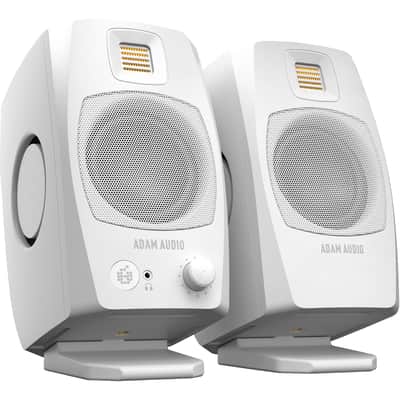

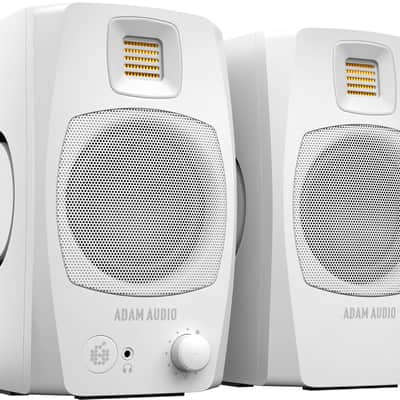

The ADAM Audio D3V is a fully active desktop monitoring system sold as a pair: one powered monitor and one passive partner connected via a dedicated link cable. Each cabinet houses a 3.5" aluminum woofer and 1.5" D-ART ribbon tweeter, flanked by dual 3.5" passive radiators that extend bass response to 45 Hz. USB-C provides plug-and-play digital audio from computers and mobile devices; balanced 1/4" TRS inputs cover traditional analog connections.

Drivers & Amplification

• Woofer: 3.5" single-piece aluminum, ferrite magnet
• Tweeter: 1.5" D-ART (Desktop Accelerated Ribbon Tweeter)
• Passive radiators: 2x 3.5" per monitor (dual-sided)
• Woofer amplifier: 2x 80W (per channel)
• Tweeter amplifier: 2x 40W (per channel)
• Total peak power: 240W system

Connectivity

• Digital: USB-C (class-compliant USB 1.1, 16-bit/48 kHz)
• Analog: 2x balanced 1/4" TRS
• Headphone: 3.5 mm TRS mini-jack (front panel, 32 Ohm)
• Power: External PSU, 100-240V / 50/60 Hz

Features

• Front panel: Multi-function volume knob (volume, input selection, mute, standby)
• Room compensation: 3-position switches on rear panel
• Mounting: Detachable 15-degree angled feet (included) or 3/8" mic stand thread
• Cabinet: Injection-molded PC-ABS with steel woofer grille

Specifications

• Frequency response: 45 Hz to 23.2 kHz (-6 dB)
• Crossover: 4 kHz
• Internal processing: 28-bit, 48 kHz
• Latency: 4.0 ms
• Dimensions (per monitor): 200 x 115 x 150 mm (7.9 x 4.5 x 5.9"), 240 mm (9.5") height with stand
• Weight: 3.58 kg total pair (7 lb 14 oz)
• Color: White

In the Box

• D3V active monitor + passive monitor
• 2m link cable
• 15-degree angled feet (2 pairs)
• Desktop pads
• 1m USB-C cable + USB-C to USB-A adapter
• External power supply (cable sold separately)
