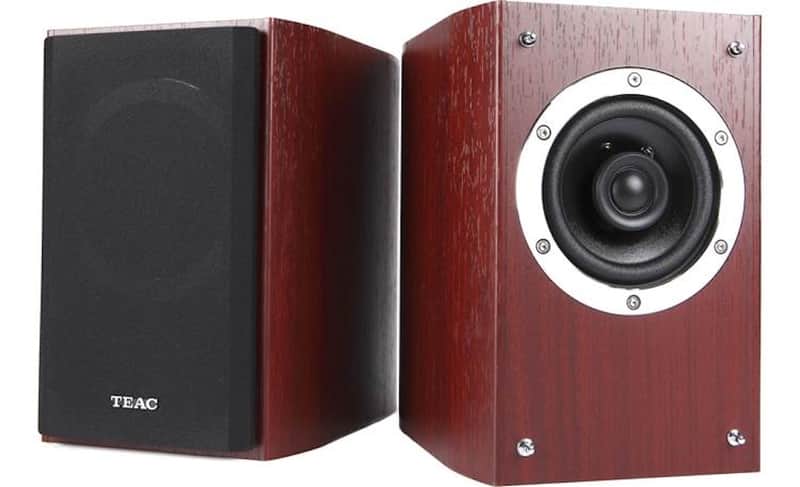

TEAC LS-301CH mid-2000's - Cherry

TEAC LS-301 Bookshelf speakers (Cherry)

Product info:

• bass-reflex (ported) design
• recommended power: 20-50 watts
• frequency response: 65-40,000 Hz
• impedance: 6 ohms
• sensitivity 85 dB
• 3/4" soft dome tweeter
• 4" resin-coated fiber cone woofer
• coaxially mounted woofer and tweeter for exceptional stereo imaging
• binding post connectors
• 6-3/8"W x 9-1/16"H x 8-5/16"D
• weight: 6 lbs. (each)
• manufacturer's warranty: 1 year

Teac LS-301 Overview

The cherry LS-301 Coaxial 2-Way Speaker System from Teac is designed for use in high-resolution audio systems such as Teac's AI-301DA pre-main amplifier. Its coaxial design features a 10cm woofer and 2cm tweeter that are positioned on the same axis. It is capable of 85dB of output.

Coaxial Speaker for High Resolution Audio SystemsThe LS-301 coaxial loudspeaker allows users to create a high-resolution audio system when partnered with the Teac's AI-301DA pre-main amplifier, as well as other amplifiers. Compact enough to set up on a desktop, this coaxial loudspeaker's woofer and tweeter are positioned on the same axis to create a sense of sonic cohesivenessAir Direct Center Pole SystemA high-resolution sound source, offering sound quality superior to CD, demands a talented loudspeaker. In a coaxial design, where the woofer - emitting powerful kinetic energy - and the tweeter - emitting high frequency sound - are both mounted on the same framework, that framework needs to be sturdy and inert. The Air Direct Center Pole System converts the kinetic energy from the woofer into cone movements that deliver sound. However, just as importantly, the system also suppresses and minimizes its own effect upon the tweeter, allowing the HF driver to work at its bestWoofer and TweeterThe woofer uses a pulp cone that's been enhanced with a special resin coating to reproduce heavy, low-pitched frequencies with depth. In the crossover network, a film condenser is used to achieve sound quality, along with an air-core coil in the woofer. The network is carefully positioned so that it is not affected by the magnetic fields emitted by the tweeter coilBanana Plug Compatible, Gold-Plated Speaker TerminalsGold-plated (to avoid corrosion effects) speaker terminals can accommodate all standard speaker cables, up to and including 8 AWG. The terminals also accept banana plugsRear Bass ReflexA bass reflex port is fitted in the rear of the housing. The internal flow of air has been modeled to produce the optimal bass reflex effectRemovable saran (synthetic fiber) grille
