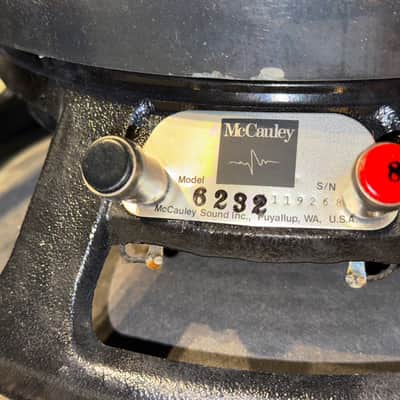

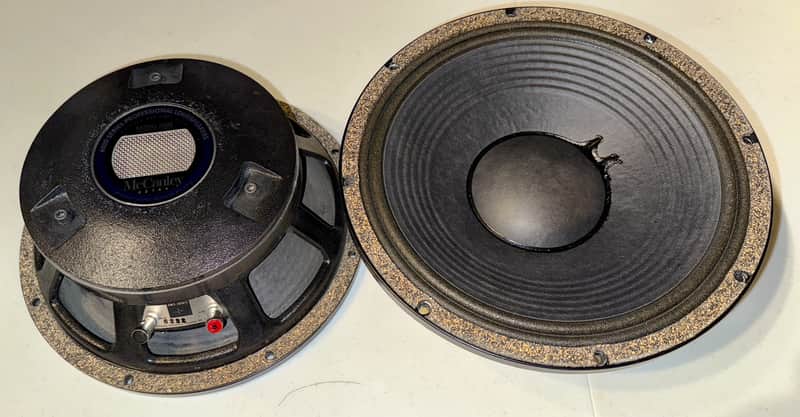

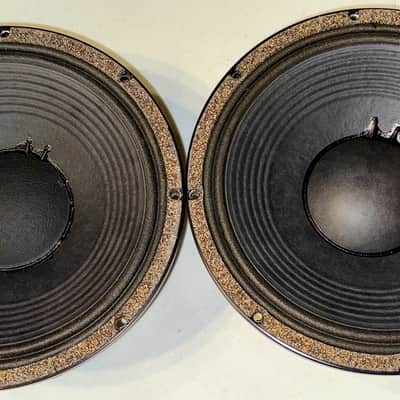

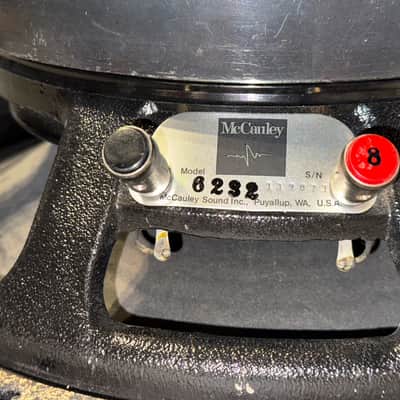

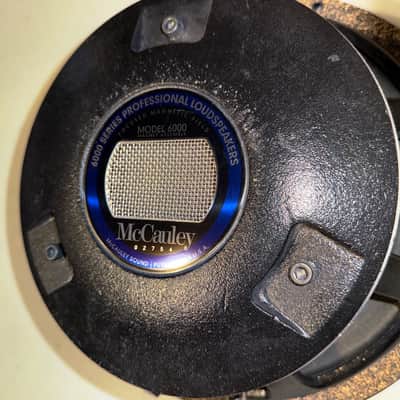

Two 12" McCauley 6232 12″ Speakers. New Price is $ 462 each
8 ohms, 400 Watts, 25Hz-2kHz, 12.125″ x 4.6″ x 12.125″, 4″ voice coil
The 6232 12" transducer is an high performance woofer designed to reproduce extended low frequency material. The 6232's superb power handling capabilites combined with it's tight, punchy response characteristics make it ideal for loading into compact full range systems or discrete subwoofer systems.
4" InWound Voice Coil 6000 Series Magnet Assembly Cast Aluminum Basket Field Servicable Basket Assembly InWound Large Vent Nickel Plated Brass Terminal Posts Once-Piece Backplate / Pole Piece Twin Frontside / Backside Gaskets
Performance Freq. Response (-3dB) 25Hz - 2kHz
Power Handling (RMS) Full Range 400W Max Peak SPL Full Range 125.021dB Max Continuous SPL Full Range 119.021dB Sensitivity Full Range 93dB Theile Small Free Air Resonance (Fs) 35 4� DC Coil Resistance (Re/Dcr) 5.9� Electrical Losses (Qes) 0.43 Mechanical Losses (Qms) 9.06 Total Quality Factor (Qts) 0.41 Equivalent Volume of Air (Vas) 3.75ft�
106.19L Effective Piston Area (Sd) 82.6in.�
532.9cm� Excursion -- Max BL (Xmax) 0.33in.
8.38mm Volumn Displacement (Vd) 27.3in.�
0.45L Inductance of V.C. (Le) 1.6mH BL Factor 15.3Tm Effective Moving Mass 0.078kg
2.75oz. Nominal Efficiency 0.011% Flux Density 13500 gauss Physical Bolt Circle Diameter 11.45in.
290.83mm Effective Piston Diameter 10.25in.
260.35mm Front Mount Baffle Cutout Diameter 10.91in.
277.11mm Driver Diameter 12in.
304.8mm Dimensions Product Dimensions 12.125in. x 4.6in. x 12.125in.
307.97mm x 116.84mm x 307.97mm Net Weight 19.84lbs.
9kg. Shipping Dimensions 16in. x 7in. x 16in.
406.4mm x 177.8mm x 406.4mm Shipping Weight 22lbs.
9.98kg. Design Properties Characteristics Cone Driver Magnet Assembly Weight 17lbs.
7.71kg. Gap Depth 0.295in.
7.49mm Voice Coil Diameter 4in.
101.6mm
