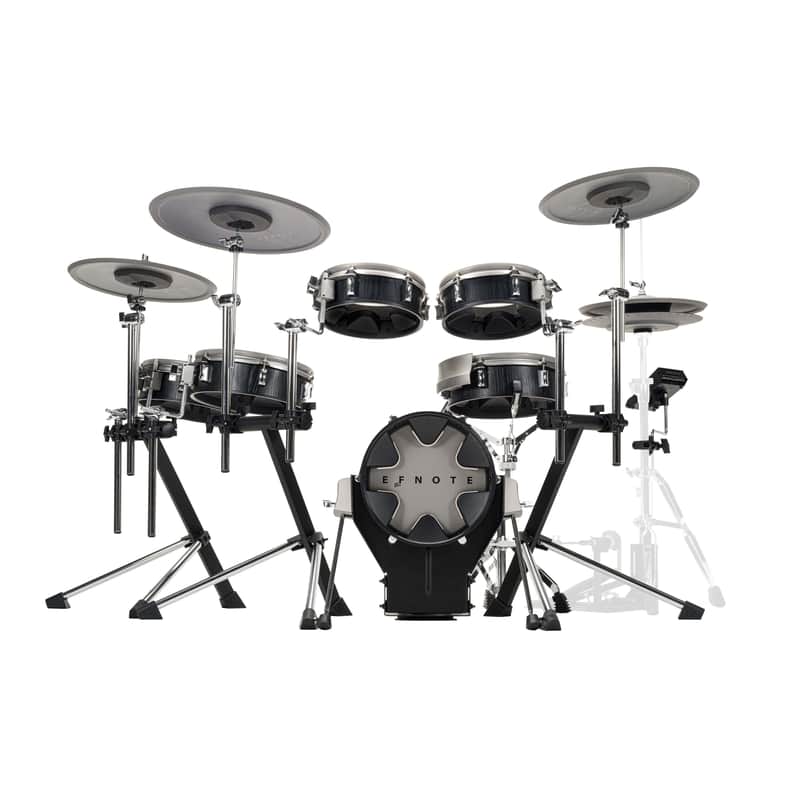

EFNOTE 3X Electronic Drum Set, Black Oak

KICK PEDAL, HI-HAT STAND & THRONE NOT INCLUDED

EFNOTE 3X : The Ultimate Performance

The Full Spec

• Specially full-expanded based on EFNOTE 3
• 6-piece shell and 4-piece cymbal set
• Dignified black oak-ish finish
• Full stereo drum/cymbal sounds
• USB Audio/MIDI, Bluetooth, Remote App available

Hi-Tuned Performance

• 14" 2-piece hi-hat cymbal
• 16"/18" full-sized cymbals
• 12" mesh snare pad
• 4x 10"/12" mesh tom pad
• 12" mesh kick pad
• Innovative independent rack stands

  Drums & Cymbals

Finest Hi-Hat Cymbals

• 14" top/bottom cymbals
• World's first multi-optical sensing to capture the motions in 3D
• Tru-Motion™ technology for expressiveness leap
• 360° free-swinging top/bottom cymbal design

18" Full Ride Cymbal

• 18" ride cymbal, 3-zone (bow/edge/cup)
• Multi-sensored 360° play/choke area
• 360° free-swinging design
• Responsive thin edge

3-Zone Crash Cymbals

• 2x 16" crash cymbal, 3-zone (bow/edge/cup)
• Multi-sensored 360° play/choke area
• 360° free-swinging design
• Responsive thin edge

EFNOTE 3X does not support the Crash 1 cup when the Tom 4 is used.

Beautiful Cymbal Surface

• Elegant warm-gray surface with fine engravings
• Clean silicone rubber surface that is resistant to drumstick marks

Monocoque Drum Shells

• 10 x 3.5" and 12 x 4", 6 lugs, 2ply mesh drum heads
• Monocoque FRP shell for stiffness and durability
• Multi-sensor for hotspotless and high-resolution sounding
• Suspended tom mount

Independent Side-Rim

• Easy, intuitive and reliable
• No switch operation required
• Elegant arc design

Solid and Stable Kick

• 12 x 4", 6 lugs, 2ply mesh drum head
• Monocoque FRP shell for stiffness and durability
• Stable multi-sensing for single/double beater(s)
• Rugged spars with rubber/spike tips

λ (Lambda) Tripods

• Easy and flexible setup with independent rack stand design
• Stable metal tripod stands

Sound Module

Ultra-Compact Sound Module

• Ultra-small form factor with uncompromised features
• Metal chassis and aluminum finish
• High quality DAC and audio circuit
• High power headphone amplifier
• Touch screen intuitive user interface

ELISE™ Sensing Processor

• Capturing drummer's intentions from each stroke
• Low latency, wide dynamic-range, consistent and stable sensing
• Optimized for EFNOTE multi-sensor drum/cymbal/hi-hat pads

Full-Scale Acoustic Sound

• Full stereo acoustic drum/cymbal samples recorded by EFNOTE
• Tru-Aco™ sound technology provides real drum/cymbal sound behaviors
• Raw sound without resynthesis

For Training

• Multi-function metronome with beat LED indicator
• Built-in metronome speaker for daily training without headphones
• On-board drum recording function (15 tracks)
• Stroke Analyzer
• Rhythm Box feature provides over 90 basic drum beats

For Recording

• USB 8-ch individual audio outputs with Mac / Windows (ASIO)
• USB 2-ch audio inputs for playback
• Analog 4-ch audio outputs
• USB MIDI in/out with individual MIDI channels
• MIDI output (5-pin DIN)

For Small Gigs

• Setlist feature enables you to configure kit order with tempo for each song
• Kick and Snare can be output individually with analog 4-ch outputs
• Click and Audio-In can be assigned only for headphones
• High-power headphones output
• MIDI output (5-pin DIN)

Stroke Analyzer

• "Stroke Scope" displays your strike points on time-line
• "Accuracy Score" estimates your strike accuracy

Sound Edit

• Tuning, Muffling, 2-band EQs for each pad
• Pad layer function can overlay two sounds
• User Inst Library enables you to store 128 customized instruments
• On-board reverb
• Dedicated level control screen

Flexible Audio Routing

• 10-ch output buses
• Flexible output routing for each pad
• Output assignable click
• Output: 4-ch analog / 8-ch USB
• Input: Analog / Bluetooth / 2-ch USB

Bluetooth®

• Bluetooth audio-in provides you to play along with Spotify™ / YouTube™ with your smartphone
• Bluetooth MIDI
• EFNOTE Tools App for control remotely

  EFNOTE Tools App

Carry Data with You

You can backup, restore, and share drum kit data and trigger settings with your smartphone.

Get New Drum Kits

Visit the official Kit Library to get the new drum kit data. There you will surely find ideas that inspire your creativity.

Adjust Remotely

For small gigs, drummers often cannot rely on FOH engineers. Now you can remotely adjust the each pad level while playing back your beat with the built-in recorder.

Swap Sounds

The Swap feature makes it easy to swap each sound of toms or cymbals. It helps you changing the set up and editing kits.
