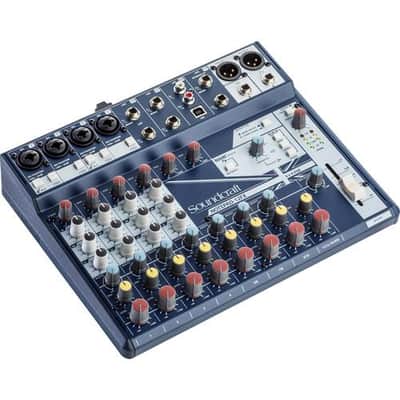

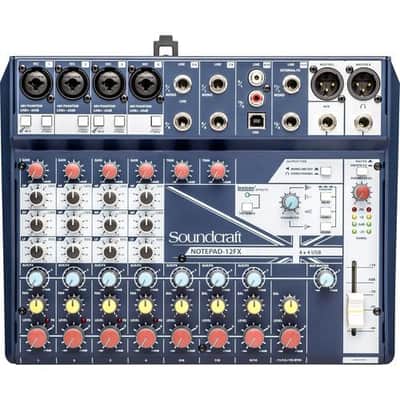

The Notepad-12FX from Soundcraft is a small-format, 12-channel analog mixing console with an integrated 4x4 USB audio interface and built-in Lexicon effects, well suited for music production, podcasts, video production, interviews, rehearsals, writing sessions, and mobile events. The mixer combines professional-grade analog components such as four microphone preamps with combo XLR-1/4" inputs, 3-band EQ, and 100 Hz high-pass filters. Additionally, inputs 1 and 3 offer Hi-Z instrument inputs for incorporating guitars and other high-impedance instruments.

Channels 1-8 include gain/trim controls, and all channels feature an aux send, a pan knob, and level controls. Channels 5/6 and 7/8 feature 1/4" line-level inputs, while channels 9/10 include stereo RCA inputs. Channels 11/12 include 1/4" inputs and double as an external FX return for feeding an outboard effects processor. Outputs include Master L/R on XLR, a 1/4" aux send, and a dedicated 1/4" headphone output with selectable monitoring of the master bus or USB return 3/4. The on-board effects include delay with tap-tempo, reverb, chorus, and karaoke. The master section offers a master fader and four LED meters with -20, 0, +6 dB, and peak settings. The Notepad-12FX features a durable metal enclosure and ships with an external power supply.

Features

• Soundcraft-quality sound from professional microphone preamps
• Easily record, edit, and play back from your Mac or Windows computer with an integrated USB audio interface—simply plug-and-play with your Mac (Windows computers require Soundcraft driver installation)
• Sweeten your mix with HARMAN digital signal processing including Lexicon reverb, echo, and delay
• Getting a great mix is easy with a familiar channel-strip layout that includes EQ, aux send, master fader level, and rotary headphone-volume control
• Durable metal enclosure that’s built to last

Specifications

• Inputs Mic/Line (Channels 1-4): 4 x combo XLR-1/4" / 6.35 mm
• Line (Channels 5-6): 2 x 1/4" / 6.35 mm
• Line (Channels 7-8): 2 x 1/4" / 6.35 mm
• Line (Channels 9-10): 2 x RCA
• Line / External FX (Channels 11-12): 1/4" / 6.35 mm
• Outputs Master (L/R): 2 x XLR
• Aux: 1 x 1/4" / 6.35 mm
• Headphone: 1 x 1/4" / 6.35 mm
• Controls Gain (Channels 1-4): 4 x Gain knobs
• Trim (Channels 5/6 & 7/8): 2 x Trim knobs
• Aux Send (Channels 1-4, 5/6, 7/8, 9/10): 7 x Aux/FX knobs
• Pan (Channels 1-4, 5/6, 7/8, 9/10, 11/12-FX RTN): 8 x pan knobs
• Level (Channels 1-4, 5/6, 7/8, 9/10, 11/12-FX RTN): 8 Level knobs
• Master Level: 1 x fader
• Aux Master: 1 x Aux Master knob
• Headphone Level: 1 x knob
• Parameter: 1 x Parameter knob for FX
• Tap Tempo: 1 x button
• Output Type: Button for mono line out or stereo headphones
• Headphone Input: 1 x button for Master or USB Return 3/4
• EQ Controls 3-Band EQ (Channels 1-4)
• HF: ±12 at 12 kHz
• MF: ±12 at 2.5 kHz
• LF: ±12 at 80 Hz
• Effects Karaoke
• Delay
• Chorus
• Reverb
• USB Connector: Type-B
• Sound Card: USB 4 x 4
• Indicator LEDs Meters: 4 x LED (-20, 0, +6 dB, Peak)
• Delay Tap Tempo: 1 x LED
• Dimensions Not specified by manufacturer
• Weight Not specified by manufacturer
• Packaging Info
• Package Weight 4.75 lb
• Box Dimensions (LxWxH) 13.5 x 12.0 x 3.5"
