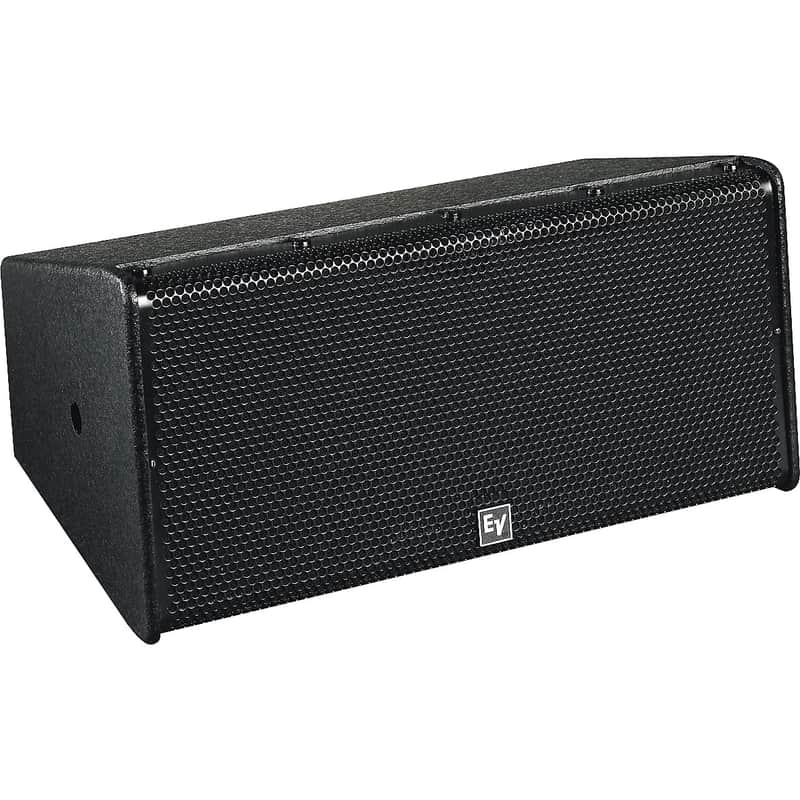

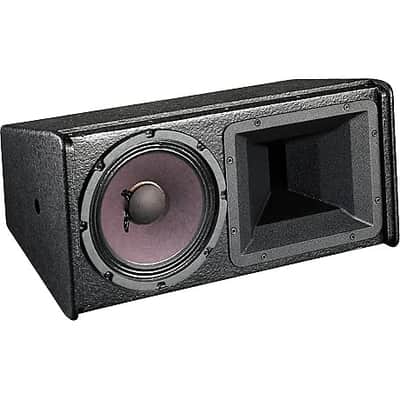

Electro-Voice Xi-1082 8-inch Two-way Full-range Loudspeaker

Electro-Voice Xi-1082 8-inch Two-way Full-range Loudspeaker

• Ultra-compact, low profile
• Wide-range reproduction, maximized intelligibility
• Optimal under-balcony enclosure angles
• Suited for front-of-stage and near-field use
• Trapezoidal enclosure, vented for extended LF
• 1.25-inch DH3/2010A titanium diaphragm HF driver
• Two 3/8-inch mounting bracket inserts
• Compatible with OmniMount(R) Series 100
• EVCoat finish
• Available in Black or White
• Mounting bracket available separately

Axial Sensitivity (SPL, 1 W @ 1 m) 90 dB LF/HF Chassis Size 203.2 mm (8") Color Black, White, Unfinished Directivity Index 11.2 dB (+1.8/-2.7 dB) 2.000 - 20,000 Hz Input Connections Barrier Strip (Single) Long-Term Power Handling 175 W LF/HF Short-Term Power Handling 700 W LF/HF Speaker Type Full-range Transformer No Frequency Response (-3 dB) 50 - 20000 Hz Internal Crossover Yes Recommended High-Pass Frequency 60 - 80 Hz 12 dB/octave Max. SPL/1m (calc) 118 dB LF/HF Coverage (Nominal -6 dB) H 90 ° Const.-dir. horn Coverage (Nominal -6 dB) V 40 ° Const.-dir. horn Rotatable Horn No System Power Handling (Continuous/Program/Peak) 175 Watts LF Transducer 8-inch HF Transducer 1-inch (DH3/2010A) Crossover Frequency 3500 Hz passive Nominal Impedance (Passive) 8 Ω LF/HF Minimum Impedance 5.8 Ω LF/HF Flying Optional Outdoor No Height 235 mm (9.25") Width 488 mm (19.21") Depth 285 mm (11.22") Weight Net 13.3 kg (29.32 lbs)
