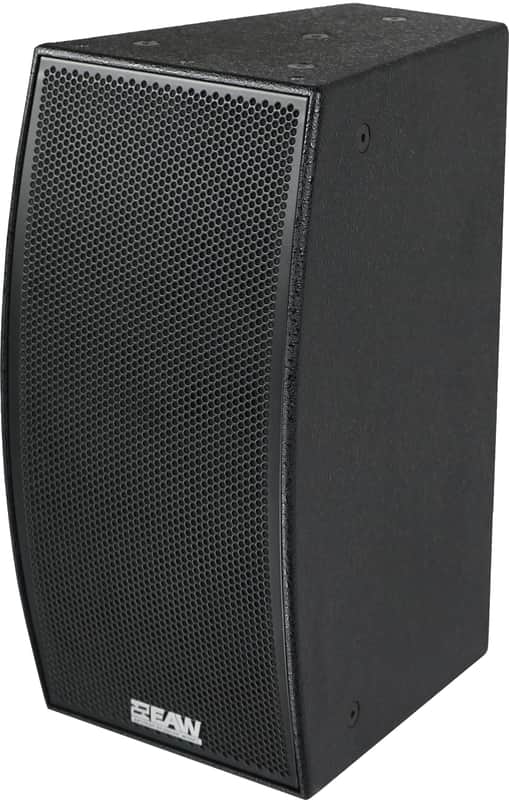

The new MKD800 loudspeaker series is engineered to deliver the high output, broadband pattern control and exceptional fidelity that is required by real-world applications from stadiums to intimate music clubs.
Features
- High-output, passive two-way performance
- 2in voice coil compression driver with extended bandwidth
- Precision EAW signature broadband pattern control
- Flexible mounting, weather protection, color & transformer options
Specifications
- Frequency Response: 62Hz - 19kHz
- Max SPL: 135 dB
- Operating Mode: Passive - LF/HF
-
Subsystem
- 2 x 8in Cone, 2in Voice Coil, Vented
- 1 x 1in Exit, 2in Compression Driver, Horn Loaded
- Nominal Beamwidth: Horizontal 90°, Vertical 60°
- Power Handling: 800W @ 8ohms
- Connections: Barrier Strip, NL4 Input/Loop
-
Dimensions
- Height: 21 in (535 mm)
- Width: 11 in (279 mm)
- Depth: 14.3 in (363 mm)
- Weight: 45 lbs (20 kg)
