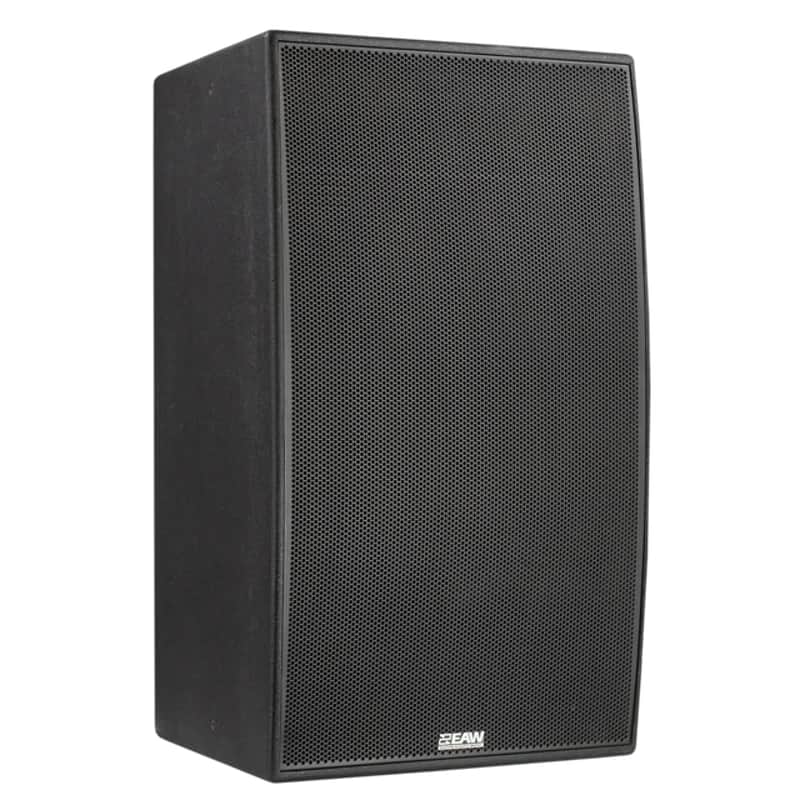

EAW MKD1596 2 x 15in 3-Way Full Range Loudspeaker 90° x 60° (Black)

The MKD1500 series loudspeaker is engineered to deliver the high output, broadband pattern control and exceptional fidelity that is required by real-world applications from stadiums to intimate music clubs.

MKD builds on EAW's long standing tradition of exceptional installation focused loudspeakers developed in partnership with consultants and sound system integrators worldwide. The compact durable Baltic birch enclosure provides for easy installation with an array of M10 mounting points. MKD also offers weather protection options, custom colors, and a gently curved front allow for concealed installations in the most visually sensitive environments.

MKD utilizes the design tenets and core technologies deployed in our QX series by deploying a pair of spaced low frequency transducers centered around a large format rotatable horn.

Features

• High output bi-amplified two-way performance
• High performance coaxial compression driver with extended bandwidth
• Precision EAW signature broadband pattern control
• Flexible mounting, weather protection color options

Specifications

• Frequency Response: 45Hz - 18kHz
• Max SPL: 145dB
• Operating Mode: Bi-Amp
• Subsystem:
  • LF Transducer, Loading 2 x 15in Cone, 4in Voice Coil
  • MF Transducer, Loading 1 x 2in Exit, 4in Voice Coil, Compression Midrange, Horn Loaded
  • HF Transducer, Loading 1 x 2in Exit, 2.5in Voice Coil, Compression driver, Horn Loaded
• Nominal Beamwidth: 45° Horizontal x 45° Vertical
• Power Handling: LF - 1600W @ 4ohms, MF/HF - 250W @ 8ohms
• Connections: Terminal block
• Dimensions: 37H x 23W x 24D
• Weight: 130lbs (59kg)
