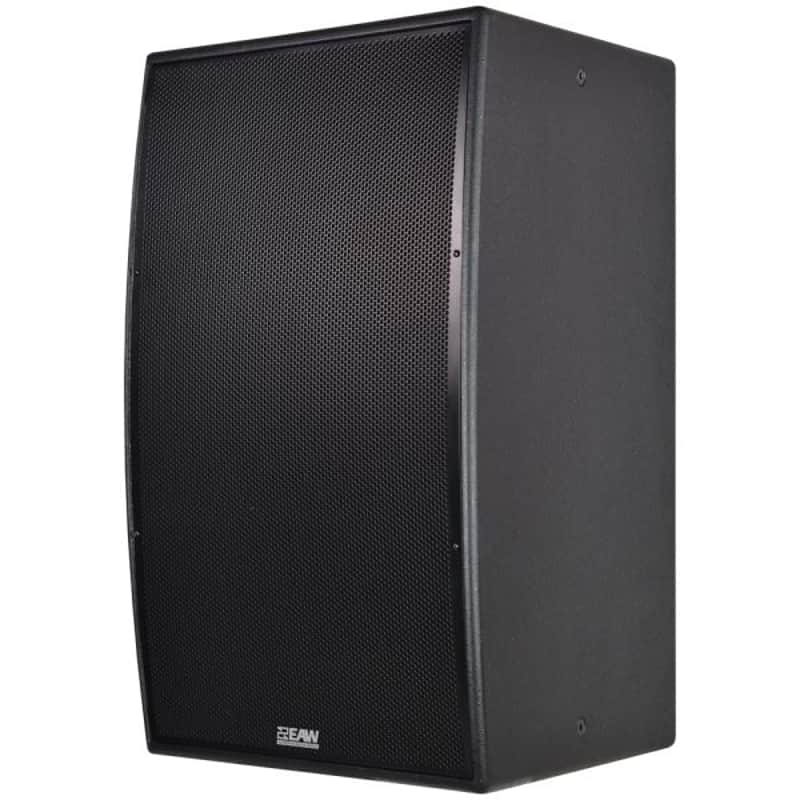

EAW MKD1264-WP 2 x 12in 3-Way Full Range Loudspeaker 60° x 45° Weatherproof (Black)

The EAW MKD1264-WP is a powerful 1200W passive 2-way installation loudspeaker engineered to provide exceptional performance, high-output sound, and precise broadband pattern control. Designed for use in demanding professional environments, from large stadiums to intimate music clubs, the MKD1264-WP is ideal for installations that require both superior sound quality and controlled dispersion. With dual 12-inch low-frequency transducers and a pair of high-performance compression drivers, the MKD1264-WP delivers dynamic, clear, and balanced sound across a wide frequency range. The speaker's black finish ensures it integrates seamlessly into various professional audio settings, offering a sleek and durable appearance.

Part of EAW's MKD installation series, the MKD1264-WP utilizes the core design principles and advanced technologies found in EAW's QX series. The speaker features a pair of spaced low-frequency transducers that work together with large-format rotatable horns to provide excellent broadband pattern control. EAW's beamwidth-matched crossover technology allows the transducers to operate an octave lower than standard drivers, improving low-frequency response and ensuring smooth, clear sound reproduction across the entire frequency range. The speaker has a nominal beamwidth of 60° horizontal and 45° vertical, providing broad, even coverage, making it ideal for a wide variety of installations. With a maximum SPL of 147 dB and a flat SPL of 141 dB, the MKD1264-WP can produce powerful sound in both large and acoustically challenging spaces. Its operating range spans from 47Hz to 20kHz, ensuring full-range sound performance with exceptional clarity and detail.

The MKD1264-WP is built for both performance and ease of installation. Its durable Baltic birch enclosure provides strength and rigidity, ensuring optimal acoustic performance while maintaining a lightweight design for easier integration into various setups. The speaker includes 12 M10 mounting points, making it easy to rig securely in a wide range of environments. Mounted horizontally or vertically using the optional U-bracket or M10 eyebolts, the MKD1264-WP is designed for flexibility in both temporary and permanent installations. The speaker is IP56-rated, providing weather protection for outdoor applications or locations exposed to the elements. With custom color options and a gently curved front design, the MKD1264-WP can be discreetly integrated into visually sensitive environments, making it ideal for installations where both sound quality and aesthetics are crucial. It also supports both passive and bi-amp operating modes, allowing for versatile system integration and optimization.

Features

• 1200W passive 2-way loudspeaker with dual 12-inch cone drivers, 2-inch exit, 4-inch voice coil compression midrange, and 2-inch exit, 2.5-inch voice coil compression high-frequency driver
• QX-inspired design for extended bandwidth, improved low-frequency response, and superior clarity
• Nominal beamwidth of 60° horizontal x 45° vertical for even and controlled sound coverage
• Max SPL of 147 dB and flat SPL of 141 dB for high-output sound in large venues
• Operating range from 47Hz to 20kHz with axial sensitivity of 93 dB
• High-fidelity sound with calculated axial output of 120 dB average (132 dB peak)
• Flexible passive and bi-amp operating modes for customized system integration
• 12 M10 mounting points for secure rigging and easy installation
• IP56-rated for weather protection, making it suitable for both indoor and outdoor use
• Custom color options and gently curved front for discreet, visually sensitive installations
• Dimensions: 32 x 22.7 x 20.6 inches, Net weight: 104 lbs, Shipping weight: 125 lbs
• Input connector: Terminal block for secure, reliable connections

Specifications

Performance

• Max SPL: 147 dB
• Flat SPL: 141 dB
• Operating Range: 47 Hz to 20 kHz
• Nominal Beamwidth: 60° Horizontal x 45° Vertical
• Nominal Phase: +15° from ideal high-pass filter
• Input Impedance: LF = 8Ω, HF = 8Ω, LF/HF = 8Ω

Accelerated Life Test

• LF/MF/HF: 1200W @ 8Ω
• LF: 1200W @ 8Ω
• MF/HF: 140W @ 8Ω

Configuration

• LF Transducer, Loading: 2 x 12-inch Cone, 3-inch Voice Coil, Vented
• MF Transducer, Loading: 1 x 2-inch Exit, 4-inch Voice Coil, Compression Midrange, Horn Loaded
• HF Transducer, Loading: 1 x 2-inch Exit, 2.5-inch Voice Coil, Compression Driver, Horn Loaded
• Operating Modes: Passive, Bi-Amp

Physical

• Physical/Rigging: 12 x M10 Mounting Points
• Dimensions (HWD): 32 x 22.7 x 20.6 inches
• Net Weight: 104 lbs
• Shipping Weight: 125 lbs
• Mounting Accessories: U-Bracket, M10 Kit
• Input Connector: Terminal block
