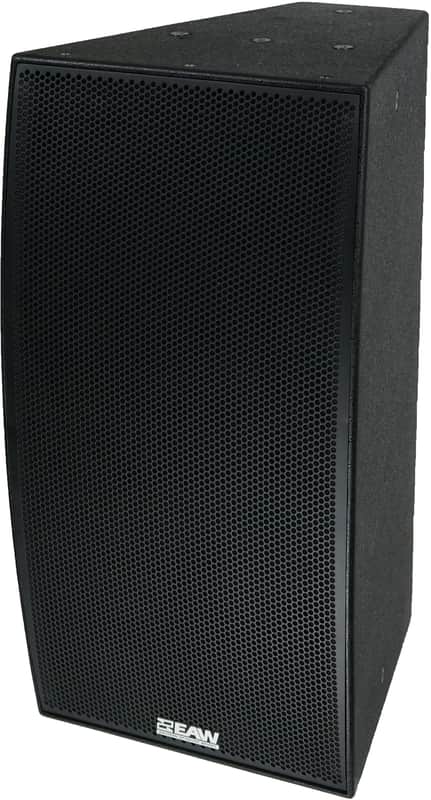

The new MKD 1000 loudspeaker series is engineered to deliver the high output, broadband pattern control and exceptional fidelity that is required by real-world applications from stadiums to intimate music clubs.
Features
- High output passive or bi-amplified two-way performance
- QX inspired 4in voice coil compression driver with extended
- Precision EAW signature broadband pattern control
- Flexible mounting, weather protection, color and transformer options
Specifications
- Frequency Response: 57Hz - 20kHz
- Max SPL: 141dB
- Operating Mode: Passive, Bi-Amp
- Subsystem
- 2 x 10in Cone, 2.5in Voice Coil, Vented
- 1 x 1.4in Exit, 4in Neodynium Compression Driver, Horn Loaded
- Nominal Beamwidth: Horizontal 120°, Vertical 60°
- Power Handling
- LF/HF (External Crossover) 1000W @ 8ohms
- LF/HF (Internal Crossover) 700W @ 8ohms
- LF 700W @ 8ohms
- HF 100W @ 8ohms
- Connections: Barrier Strip
- Dimensions
- Height: 27.2 in (690 mm)
- Width: 14.8 in (377 mm)
- Depth: 16.8 in (426 mm)
- Weight: 70 lbs (27 kg)
