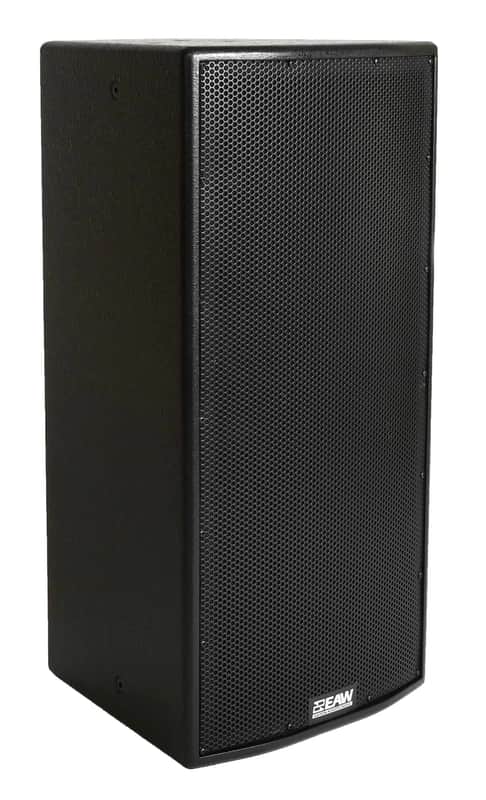

EAW MK2366i 12in 2-Way Full Range Loudspeaker 60° x 60° (Black)

The MK Series is EAW’s state-of-the-art, passive, two-way systems specifically engineered for permanent installation.

The series includes three sub-series each of which shares a common enclosure as well as three dedicated subwoofer systems. All MK Series systems feature large-format HF horns that maintain pattern control throughout the crossover region, enabling EAW’s beamwidth matching crossover technology that improves performance through the crossover region.

Specifications

• Frequency Response: 65hz - 17khz
• Max SPL: 139 dB
• Operating Mode
• Amplifier Channels: Single-amp LF/HF; Bi-amp LF, HF
• External Signal Processing: High pass filter; DSP w/2-way filters
• Subsystem
• LF - 1x 12 in. cone
• HF - 1x 1.4 in. exit, 3 in. voice coil compression driver
• Nominal Beamwidth
• Horizontal: 60
• Vertical: 60
• Power Handling
• Full Range: 600W @ 8ohms
• LF: 600W @ 8ohms
• HF: 150W @ 8ohms
• Connections: Barrier Strip
• Dimensions
• Height: 30 in (762 mm)
• Width: 15.54 in (394.7 mm)
• Depth: 14.75 in (374.7 mm)
• Weight: 60 lbs (27.2 kg)
