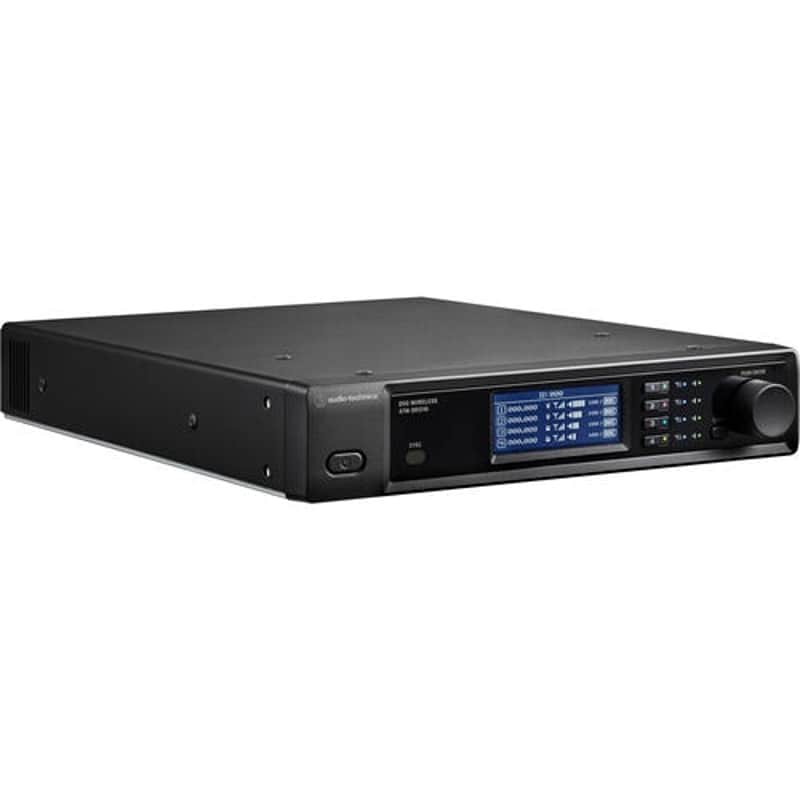

Audio-Technica ATW-DR3240DANDF2 D50 4-Channel Dante Receiver (DF2)

The Audio-Technica ATW-DR3240DANDF2 is a D50 four-channel digital UHF receiver with primary and secondary Dante ports in band DF2 (470 to 608 MHz). The half-rack chassis runs four D50 transmitters at once.

Diversity modes are Antenna Combining and MRC True Diversity. Audio is high-resolution digital with AES-256 encryption. Each channel has a high-pass filter, four-band EQ, and compressor. Audio-Technica LINK lets up to four receivers share one antenna pair. Power is AC adapter or PoE+ (PoE+ can also back up the AC supply).

Specifications

• Band: DF2: 470 to 608 MHz
• Channels: 4
• Network: Primary and secondary Dante
• Audio: 48 kHz; AES-256
• Delay: Standard 2.1 ms typical; HD mode 3.3 ms typical
• Operating range: 100 m (328') typical, open range with no interfering signals
• Dimensions: 210 mm (8.3") W × 288.2 mm (11") D × 42.5 mm (1.7") H
• Weight: 2.1 kg (4.6 lb) without accessories
• Power: AC adapter or PoE+

In the Box

• ATW-DR3240DAN receiver
• Two whip antennas
• AC adapter (AD-SA1230XA) and AC cable
• Rack-mount adapters
• Rubber feet
• Fixing screws
• BNC cable kit
