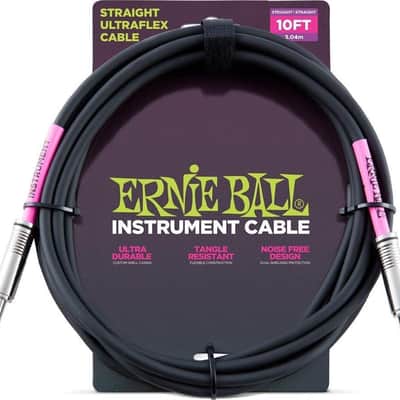

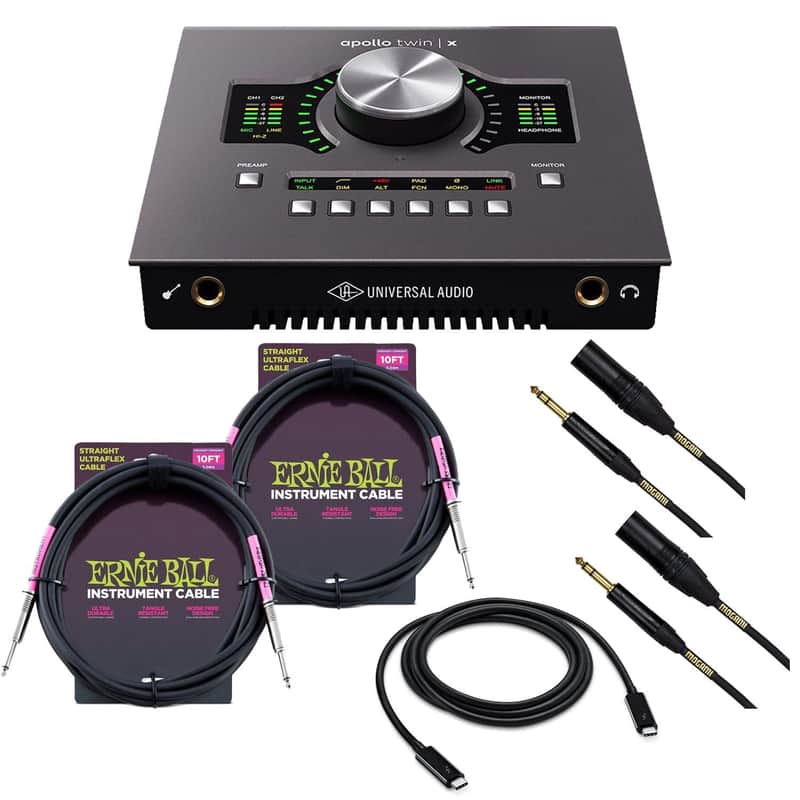

Universal Audio Apollo Twin X QUAD Heritage Edition, Thunderbolt 3 Cable, (2) Mogami XLR to 1/4, (2) ErnieBall 1/4 Cables Bundle

Poised to be the center of a home studio or mobile rig, the Universal Audio Apollo Twin X QUAD Heritage Edition desktop 10x6 Thunderbolt 3 audio interface combines the sound, feel, and flow of analog studio recording with powerful QUAD Core real-time UAD processing and a hearty bundle of 25 stellar UAD plug-ins. Furnished with elite-class 24-bit / 192 kHz conversion akin to the popular Apollo X rackmount interfaces, the Apollo Twin X QUAD gives musicians, producers, songwriters, and audio engineers the appreciable value of crystal-clear, high-resolution recording and mixing with low distortion (-117 dB) and immense dynamic range (127 dB). The interface features two XLR-1/4" mic/line combo inputs and a 1/4" Hi-Z input, all with Unison integration for precise UAD emulations of classic analog preamps—impart vintage character of your choosing on microphone and instrument recordings while bypassing the unpredictable nature of old equipment. Thanks to the switchable low-cut filter, pad, polarity inversion, 48V phantom power, and stereo linking on each analog input, you can efficiently optimize your incoming signals with straightforward buttons on the Apollo Twin X QUAD's face. In addition to the two primary analog inputs, you can record up to eight more channels by connecting external preamps with ADAT or S/PDIF optical outputs to the TOSLINK optical input port on the Apollo Twin X QUAD. The built-in QUAD Core processing allows you to monitor and record audio using classic analog emulations with near-zero latency and no burden on your computer's CPU. The plug-in bundle included with the Heritage Edition empowers you with 25 top-notch plug-ins ranging from vintage compressor and EQ collections to virtual guitar/bass amps and time-based processors. The included Console application provides control and recall of all interface and UAD plug-in settings including channel-strip presets, drag-and-drop functionality, and dynamically resizable windows. Mac and Windows drivers ensure compatibility with all major DAWs including Pro Tools, Logic Pro, Cubase, Ableton Live, and more. The interface also integrates seamlessly with LUNA, Universal Audio's free Mac-based, single-window recording system with unlimited track counts and full Audio Units plug-in support. The Apollo Twin X QUAD offers a comprehensive monitor section with talkback functionality and dedicated front-panel controls for Alt Speakers, Dim, and Mono functions, as well as input and output metering capabilities. In addition to the dedicated stereo monitor feed and front-panel headphone output, two 1/4" line outputs are available for connection to a second set of monitors. At any point, you can increase the power and capability of the Apollo Twin X QUAD through integration of qualified Universal Audio hardware. Up to four Apollo interfaces and six total UAD-2 devices can be combined, allowing Thunderbolt users the ability to expand their I/O and DSP without abandoning the Apollo Twin X QUAD. The Thunderbolt 3 port is backward-compatible with Thunderbolt 1 and 2 via a qualified adapter (available separately). Heritage Edition

The Heritage Edition features the same Apollo Twin X QUAD interface found in the standard edition but with more plug-ins. The standard Apollo Twin X QUAD includes the Realtime Analog Classics bundle (14 plug-ins), and the Heritage Edition adds 11 more for a total of 25 revered UA-powered plug-ins.

The Power of Apollo

• Track, overdub, and mix with high-resolution AD/DA conversion and DSP-powered plug-ins
• QUAD Core UAD processing for tracking through models of vintage compressors, EQs, tape machines, mic preamps, and guitar amps with near-zero latency and no burden on your computer’s CPU
• Unison technology nails the tone of sought-after tube and solid-state mic pres including their input impedance, gain-stage sweet spots, and the component-level circuit behaviors of the original hardware
• High-speed Thunderbolt 3 connectivity for Mac and Windows computers (Thunderbolt cable available separately)
• Convenient desktop form factor with reliable AC powering (external power supply included)
• Free, industry-leading phone/online technical support from knowledgeable audio engineers

I/O for the Studio

• 10x6 audio interface with two Unison-enabled microphone preamps (via XLR-1/4" combo mic/line inputs), providing emulations of classic analog preamps with near-zero latency
• One front-panel, Unison-enabled 1/4" Hi-Z input for direct connection of a guitar, bass, or keyboard
• Stereo 1/4" monitor output and one 1/4" headphone output, each with dedicated level control
• Two additional 1/4" line-level outputs, may be used for alternate monitor outputs
• Add up to eight extra input channels via one TOSLINK optical ADAT port (may alternatively be used for stereo S/PDIF)

Pro-Level Workflow

• Built-in monitor controller with monitor remote functions and mono, mute, dim, and alt monitor controls
• Integrated talkback and cues for easy communication and slate functionality
• Comprehensive front-panel metering and fast, intuitive controls, no menu-diving required

Expandable I/O and DSP

• Cascade up to four Thunderbolt-equipped Apollo interfaces and six UAD-2 Thunderbolt devices for expanded I/O and DSP
• Expand your studio with an Apollo X rackmount unit (available separately), so you can use your Apollo Twin X QUAD as a desktop monitor controller with additional I/O and DSP power
• Backward-compatible with Thunderbolt 1 and 2 via a qualified adapter (available separately)

25 Powered Plug-Ins

Includes Realtime Analog Classics plug-in bundle plus 11 additional plug-ins to complete the compressor, EQ, and preamp collections and provide another reverb (plug-ins support VST, RTAS, Audio Units, and AAX 64-bit for compatibility with all major DAWs):

• UA 610-A Tube Preamp and EQ (Vintage)
• UA 610-B Tube Preamp and EQ (Modern)
• Marshall Plexi Classic Guitar Amp
• Ampeg SVT-VR Classic Bass Amp
• UA 1176LN Limiting Amplifier (Legacy)
• UA 1176SE Limiting Amplifier (Legacy)
• UA 1176 Classic Limiter Collection (1176LN Rev E, 1176 Rev A, and 1176AE 40th Anniversary Edition)
• Pultec EQP-1A EQ (Legacy)
• Pultec MEQ-5 EQ (Legacy)
• Pultec Passive EQ Collection (EQP-1A, MEQ-5, and HLF-3C)
• Teletronix LA-2A Leveling Amplifier (Legacy)
• Teletronix LA-2A Classic Leveler Collection (LA-2A Silver, LA-2A Gray, and LA-2)
• Raw Distortion
• Precision Channel Strip (Precision Mix Rack Collection)
• Precision Reflection Engine (Precision Mix Rack Collection)
• Precision Delay Mod (Precision Mix Rack Collection)
• Precision Delay Mod L (Precision Mix Rack Collection)
• Pure Plate Reverb
• RealVerb Pro Custom Room Modeler

Integration with LUNA Recording System for Mac

• Works with all major DAWs including Logic Pro, Ableton Live, Pro Tools, and more
• Apollo Twin X QUAD becomes a fully integrated recording system with LUNA, a powerful free recording application for Mac from Universal Audio
• Bolstered by Accelerated Realtime Monitoring, LUNA lets you track and mix using an intuitive single-window workflow with unlimited track counts, full Audio Units plug-in support, and access to a suite of exclusive LUNA Instruments and Extensions such as Studer multitrack tape and Neve Summing

UPC: 819937003103
