Features

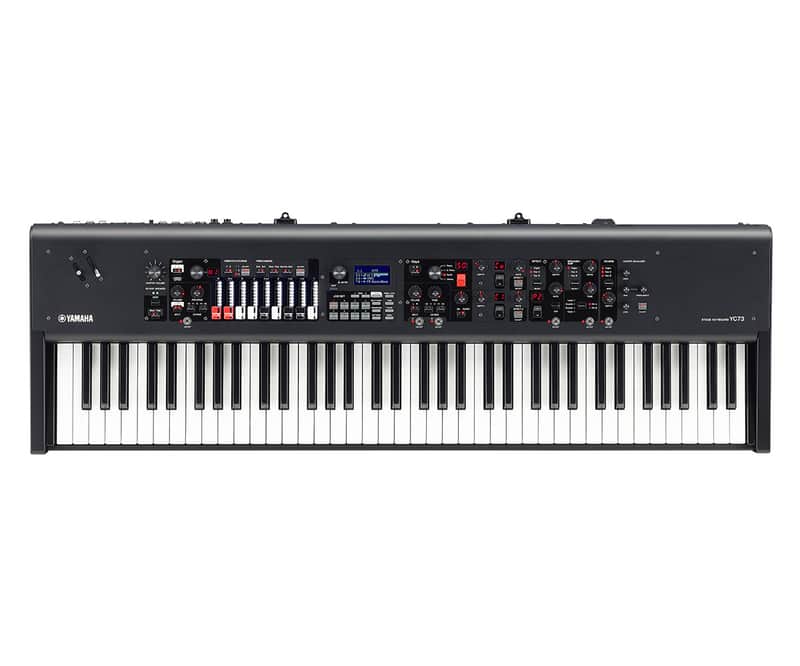

YC73 New Product Balanced Hammer Standard (BHS) Keyboard Model

The 73-key BHS keyboard uses the E-to-E layout, which is the standard for electric pianos. The compact yet capable range of piano music and uniform hammer action provide a comfortable playing feel that can handle a variety of sounds and performance expressions, from electric pianos to acoustic pianos, organs, and synthesizer sounds. It is the most versatile and versatile keyboard in the YC series.

YC's high versatility as a stage keyboard.

It is packed into the sound engine of the YC61/YC73/YC88 as a "premium keyboard sound" with unprecedented possibilities, from traditional Yamaha grand pianos to upright pianos, electric pianos and keyboards, tonewheel organs with rotary speakers, synthesizers, and acoustic instruments. Yamaha's unique VCM technology faithfully reproduces vintage analog EQ, compressor, and phaser circuits, even down to the behavior of transistors and resistors, using modeling technology. It brings to life the authentic sound of that era with delicate musical expressiveness that cannot be reproduced by simple digital simulation. Detailed information

Controllers

Keyboard Number of keys: 73 keys

Keyboard type: (E1-E7) BHS keyboard (black matte finish, balanced hammer)

Sound source/tone

Sound source Sound source type: VCM Organ, AWM2, FM

Polyphony Maximum polyphony VCM Organ + AWM2: 128 notes*, FM: 128 notes *Maximum polyphony of VCM Organ and AWM2 combined

Live set sound number: 160 (preset live set sound: 80)

Voice number: 145 (Organ: 6 / Keys: 143)

Effects

Effects: 32 types

Speakers/amplifiers: 6 types (rotary speaker: 2 types, amp: 4 types)

Reverb: 1 type

Insertion effects: Organ 1 system (predrive) / Key A 2 systems (1: 32 types, 2: 32 types) / Key B 2 systems (1: 32 types, 2: 32 types)

Master EQ 3 bands (MID: frequency changeable)

Connection

Connection terminals

Line out OUTPUT [L/MONO]/[R] (standard phone jack, unbalanced), OUTPUT [L]/[R] (XLR jack, balanced)

Headphones [PHONES] (standard stereo phone jack)

Foot controller FOOT CONTROLLER [1]/[2], FOOT SWITCH [SUSTAIN]/[ASSIGNABLE]

MIDI MIDI [IN]/[OUT]

USB USB [TO HOST]/[TO DEVICE]

AUX INPUT [L/MONO]/[R] (standard phone jack)

Other

Power supply

Rated power supply AC100V 50/60 Hz

Power consumption 15 W

Display Full dot LCD (128×64 dots)

Accessories Instruction manual (this manual) × 1, warranty card × 1, power cord × 1, 2P-3P converter × 1. Foot pedal FC3A x 1

Size and dimensions

Width 1086 mm

Height 145 mm

Depth 355 mm

Weight 13.4 kg
