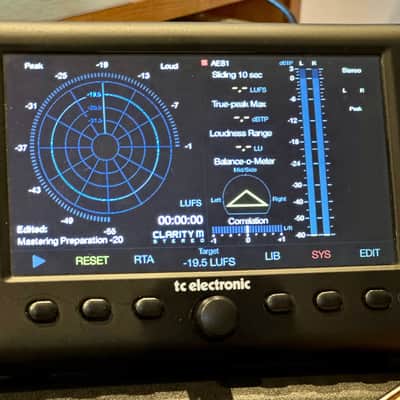

The TC Electronic Clarity M Stereo is a professional-grade hardware desktop audio meter designed for mixing, mastering, and post-production environments. It provides a 7-inch high-resolution display that offers precision visualization of various audio parameters, helping producers make informed decisions regarding loudness, frequency balance, and phase.

Key Features

• Metering Toolbox: Includes a wide array of tools such as the LM6 Loudness Radar Meter, True-Peak meter, Real-Time Analyzer (RTA) with 1/3 octave resolution, vector scope, correlation meter, and a Balance-O-Meter for L/R and M/S balance.
• DAW Integration: Features "Plug-in Metering" which allows it to integrate seamlessly into a DAW (VST, Audio Units, and AAX) via USB, enabling the meter to display audio data directly from your tracks.
• Broadcast Compliance: It is fully compliant with major international broadcast standards, including ITU BS.1770-4, ATSC A/85, EBU R128, TR-B32, and OP-59.
• Versatile Mounting: The unit includes an integrated desktop stand and contains mounting holes on the rear that are compatible with RAM-Mounts for wall, ceiling, or microphone stand attachment.

Technical Specifications

Display 7" TFT color LCD, 800 x 480 resolution

Digital Inputs Stereo 96 kHz AES3 (via BNC) and Stereo Optical (TOSLINK)

USB USB 2.0 (Micro Type B) for plug-in mode and firmware updates

GPIO 2 external switch inputs, 1 relay output (optically isolated)

Power 12 V DC / 0.5 A (Power Adapter included)

Dimensions140 x 182 x 38 mm (5.5 x 7.2 x 1.5 in)

Weight1.2 kg (2.6 lbs)

The device operates as both a standalone digital meter (using AES or optical inputs) and as a DAW-integrated plug-in, making it a flexible solution for various studio workflows.
