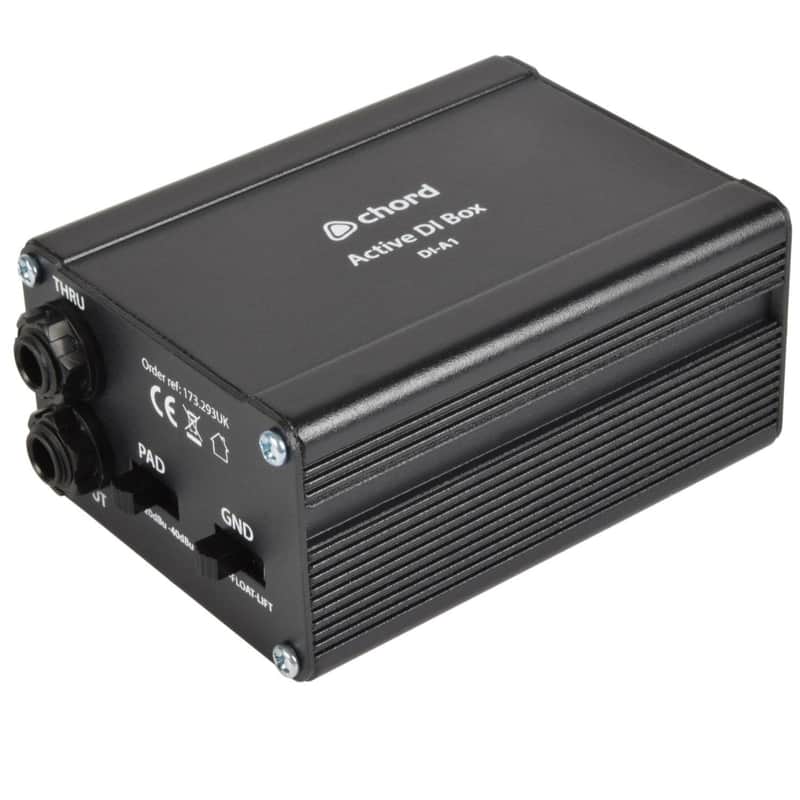

Chord Active Direct Injection DI Box DI-A1

Designed to connect instruments with an unbalanced signal - such as guitar, keyboard etc. to a PA system with balanced inputs. For example, where the PA runs through a multicore snake cable to a Front of House mixing console.

Ideal for acoustic and open mic nights, or gigging and session musicians alike.

Never be without a DI Box in your gig bag - they are immeasurably useful for getting you out of a fix.

Guidance:

• Active DI box for converting high impedance instrument outputs to low impedance line signals for feeding directly into a mixing console.
• Internal buffer amplifier to boost the signal, avoiding losses in long cable runs and 3-way pad switch for level matching.
• Ground-Float-Lift selector enables signal ground isolation with or without RF/mains filtering.

Specifications:

• Powered by 9-52V phantom power, optional 9V battery or 12Vdc adaptor
• Ground float option for ground lift with RF/mains filter
• Ground lift option isolates signal ground without filter
• 3 pad settings for level matching
• Power supply 9V battery (PP3 not supplied), 12Vdc adaptor (optional) or 9-52V phantom power
• Input 6.3mm jack (unbalanced)
• Outputs XLRM (balanced), 6.3mm jack through (unbalanced)
• Input impedance >100k Ohms
• Output impedance 600 Ohms
• Controls 0/-20/-40dBu pad & Ground-Float-Lift switch
• Dimensions 103 x 70 x 45m
