Sine Effect MegaPara DX parametric EQ pedal 2025 - White
This seller has not set a shipping cost for Portugal. Please contact them to ask about shipping.
Our users rate Reverb
Fantastic EQ pedal with very little use.
---

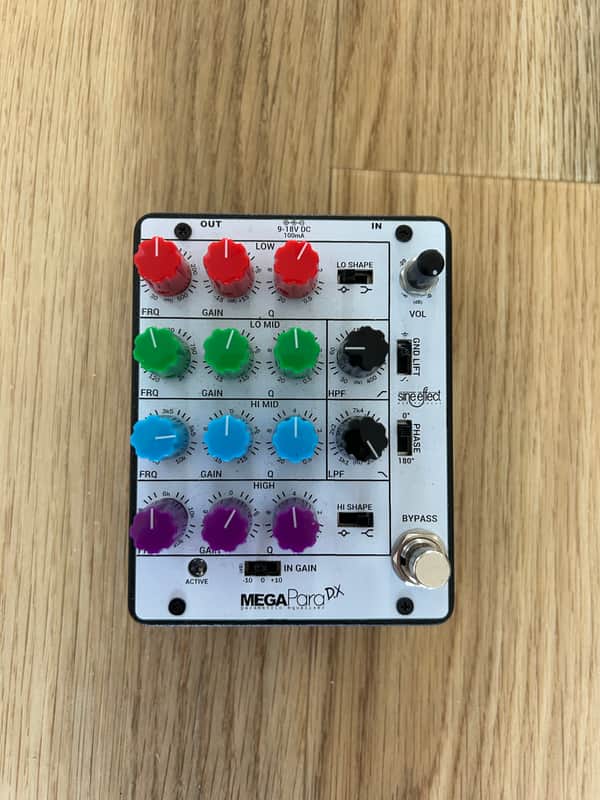

The MegaPara DX is a highly-versatile, 4-band parametric EQ pedal with high and low-pass filters, for electric, acoustic and bass guitar. This is essentially a single-channel version of the MotherPara pedal.
The MegaPara DX features four bell-curve parametric EQ bands (with the high and low bands being switchable to shelving filters), fully-independent high and low-pass filters, ground lift, phase invert and input pad switches.
Features:
•4 bands ranging from 30Hz to 20KHz, to suit bass, electric or acoustic guitar.
•Switchable Bell-curve/Shelf modes on High and Low bands (+/-15dB gain in both modes).
•High and low pass filters.
•Pad or boost the input by 10dB (true input pad preserves impedance).
•Phase invert switch.
•Ground lift switch.
•True Bypass.
•Very low noise. -105dB.
Specifications:
•Operating Voltage: 9-18V DC mains adaptor (not included). This pedal cannot be used with a battery.
•Current Draw: ~50mA.
•Input/Output Impedance: 1 Megaohm/100 ohm.
•Parametric Frequency Ranges: 30-500Hz, 120Hz-2KHz, 500Hz-10KHz, 1-16KHz.
•Filter Frequency Ranges: HPF = 30-400Hz, LPF = 1.1-20KHz.
•Slope: All bands and filters are 12dB/octave.
•Headroom: 16dBu @ 18V (around 30dBu if "Input Gain" set to -10dB).
•Noise: <-105dBu.
•Dimensions: ~12 x 9.4 x 5.8cm (including knob height).
