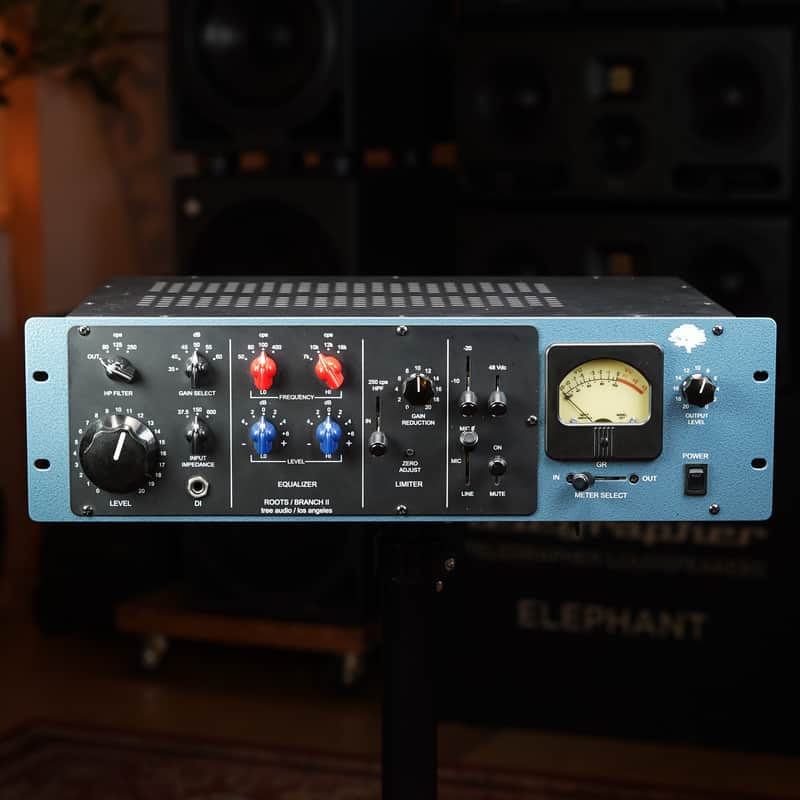

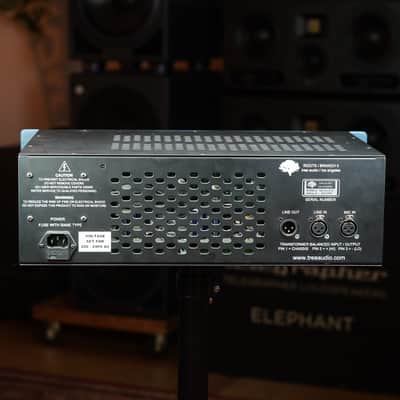

Tree Audio Branch II Tube Channel Strip (Used)

Excellent condition and full working order with 3 months warranty. No original box.

The Tree Audio Branch II is a 3U rack-mount, all-tube Class-A channel strip derived from the Roots console, featuring a mic pre, EQ, and limiter. It provides a warm, classic sound with updated features like a 3-position high-pass filter (variable input impedance, and a large, dedicated output level knob.

Key Features

• 80Hz, 125Hz, 250Hz Hi Pass Filter
• Variable Gain Select
• Output Level pot
• Input Impedance Select – 37.5, 150, 600 Ohms
Standard Features:
• Big Knob Level Control
• Direct Input (Hi Z)
• Hi EQ 7k, 10k, 12k, 16k CPS
• Lo EQ 50, 80, 100, 400, CPS
• Limiter In / Out, HPF (250 CPS)
• Gain Reduction
• VU Adjust
• Line / Mic / Mic Phase Reverse
• Pad Off, -10 dB, -20 dB
• 48 VDC
• Mute
• Meter with meter select switch (line input, gain reduction, line output)
• Custom wound input / output transformers
• Vacuum tube and linear, fully regulated power supply
