Sonifex S1 Radio Mixer (Pre-Owned)

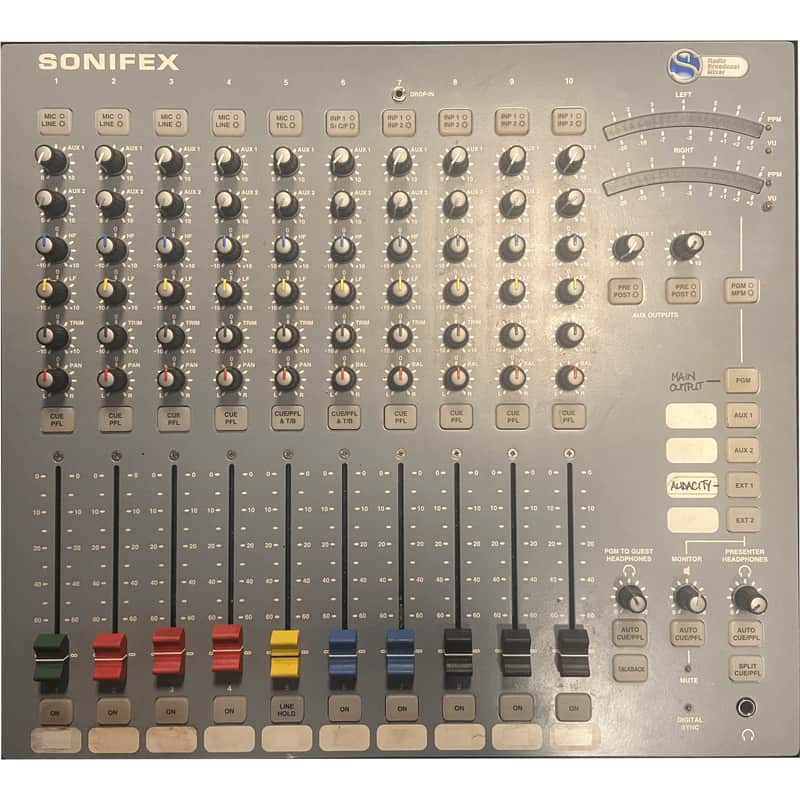

The Sonifex S1 mixer is a high performance compact, low cost, fixed format mixing console designed for on-air radio use. It can be fitted flush into a desk-top or can be rack-mounted by the addition of optional rack ears.

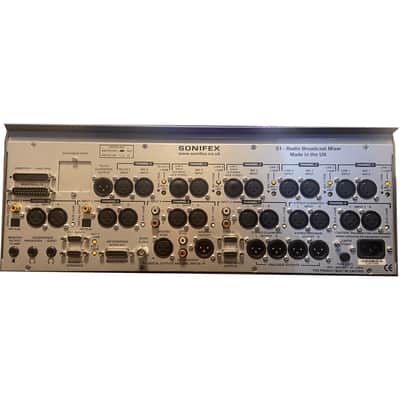

The rear connectivity panel can be rotated 90ž onto the base of the unit providing easier connection to the unit when it is rack-mounted. It has an integral universal switch mode power supply, which uses an IEC inlet.

• High performance, ultra-reliable on-air radio mixer.
• Low cost.
• Easy to use.
• Small footprint, flush-mounting or rack-mounting.
• Analogue & digital inputs & outputs.
• Main stereo output buss plus 2 Aux output buses, pre or post fader selectable.
• Rotating rear panel for ease of installation.
• Integrated power supply.
• Remote outputs per channel.
• Fader start of ancilliary equipment such as CD players.
• Programmable general purpose I/O.
• Monitor muting on mic live.
• Mic-live/on-air sign switching.
• Monitor outputs for presenter & guest headphones, & speakers.
• Bright LED meter display PPM/VU selectable with separate meterbridge output.
• 100mm ALPS long-throw faders with control via VCAs.
• Separate telco & stereo cleanfeed o/ps for use with a telephone hybrid & codec respectively.
• Advanced automation facilities.
• Remote control via free SCi software.

The console consists of ten input channels:

• 2 x mono XLR mic/mono XLR line inputs.
• 1 x mono XLR mic/mono XLR telco input.
• 2 x mono XLR mic/mono XLR line inputs/ stereo Ó jack unbalanced line input.
• 1 x stereo XLR line/stereo XLR cleanfeed input.
• 2 x stereo XLR line/stereo RCA inputs, one with a 3.5mm stereo aux input.
• 2 x stereo XLR line/stereo SPDIF & Toslink digital inputs.

Providing in total 5 mic, 4 mono line, 10 stereo analogue, 2 stereo digital, 1 telco & 1 stereo cleanfeed inputs which you can switch between.

Specifications

• Mic Input: > 1k5 electronically balanced
• Mono Line Input: > 20k electronically balanced
• Stereo Line Input: > 20k electronically balanced
• PGM Output: < 50 electronically balanced
• Monitor Outputs: < 75 unbalanced
• AES Input/Output: 110
• S/PDIF Input/Output: 75
• BNC Wordclock Input: 50

• Mic Input: Preset pot +21dB to +64dB ref -50dBu, TRIM pot ± 12dB
• Mono Line Input: Switch 0dB to +10dB ref 0dBu, TRIM pot ± 12dB
• Stereo Line Input: Switch 0dB to +10dB ref 0dBu, TRIM pot ± 12dB
• Telco Input: Switch 0dB to +10dB ref 0dBu,
• TRIM pot ± 12dB
• Stereo Cleanfeed Input: Switch 0dB to +10dB ref 0dBu, TRIM pot ± 12dB
• Digital Input: 0dBFS = +18dBu on input; TRIM pot ± 12dB allowing 0dBu to +24dBu
• Digital Output: 0dBFS = +18dBu

• Mic Input: 40Hz to 20kHz 1dB, +0dB
• Line Inputs: 20Hz to 20kHz 0.5dB, +0dB
• RCA Inputs: 20Hz to 20kHz 0.5dB, +0dB

• Mic Input E.I.N.: -130dB with 150 source.
• Stereo Inputs -92dBu ref 0dB (fader down, no routing), -91dBu (fader down, one channel routed), -86 dBu (unity gain, one channel routed), -83 dBu (unity gain, two channels routed)

• Total Harmonic Distortion: 0.015% at 1kHz, 0dBu 0.015% at 10kHz, 0dBu
• Inter-Channel: < -80dBu typically
• LF: Shelving at 100Hz ± 7dB
• HF: Shelving at 6.5kHz ± 7dB

• Pan Range: Off/-3dB centre/off
• Balance Range: ± 6dB

• Mic Input: >60dB typically
• Sync Input Sample Rate Range: 32kHz 96kHz
• Output Sample Rates: 32kHz, 44.1kHz, 48kHz, & 96kHz (Using Onboard Clock)
• Output Sample Width: 24 bit

• Headphone Output Load: >45 ohms, recommended 400
• Maximum Output (Analogue): +26dBu balanced into 2k or greater

• Phantom Power: +48V individual per mic input
• Gain Switch: +10dB per XLR balanced mono & stereo input & EXT 1, EXT 2 inputs

• Analogue Inputs: 5 x Microphone XLR 3 pin sockets, 2 x Mono line XLR 3 pin sockets, 2 x Mono/stereo line combi XLR 3 pin sockets & 6.35mm stereo jack sockets, 1 x Telco XLR 3 pin socket, 5 x Stereo line pairs XLR 3 pin sockets, 2 x Stere line pairs phono sockets, 1 x Stereo cleanfeed pair XLR 3 pin sockets, 1 x Stereo insert, 3.5mm jack socket
• Digital Inputs: 2 x S/PDIF phono sockets,, 2 x TOSLink optical connectors
• Analogue Outputs: 2 x XLR 3 pin plug (balanced), 9-way ÔDÕ-type socket (balanced), XLR 3 pin plug (balanced), 2 x XLR 3 pin plug (balanced)
• Monitor Outputs: 6.35mm stereo jack sockets (2 x Presenter, 1 x Guest, 1 x Monitor)
• Digital Outputs: AES/EBU XLR 3 pin plug (balanced) or S/PDIF phono socket.
• Digital Sync Inputs: Wordclock on BNC, AES/EBU on XLR socket and S/PDIF on phono socket.
• EXT Inputs: 9-way ÔDÕ-type socket
• Mono Remotes: 25-way ÔDÕ-type plug
• Stereo Remotes: 25-way ÔDÕ-type plug
• Meterbridge Port: 15-way ÔDÕ-type socket
• Talkback Interface: 9-way ÔDÕ-type socket
• RS232 Serial Port: 9-way ÔDÕ-type socket
• Mains Input: Filtered IEC, continuously rated 85-264VAC, 47-63Hz, 45w nominal, 50w peak
