JourneyTek Ep101KM - Mini 3 piece passive piezo 2026

Brand new and boxed

A premium,  upgradeable, clear and transparent passive 3-piezo pickup for acoustic guitars. Uses high-output German piezo elements and requires no batteries.

This model differs from our other pickups in that it has smaller 12mm piezo pickups for use on guitars with small bridge plates (Such as the Martin Jr. or Taylor GS Mini). If you have a vintage or higher end steel string guitar with a smaller bridge plate, this is the pickup you want in place of the EP001K.

General Specs and Details:

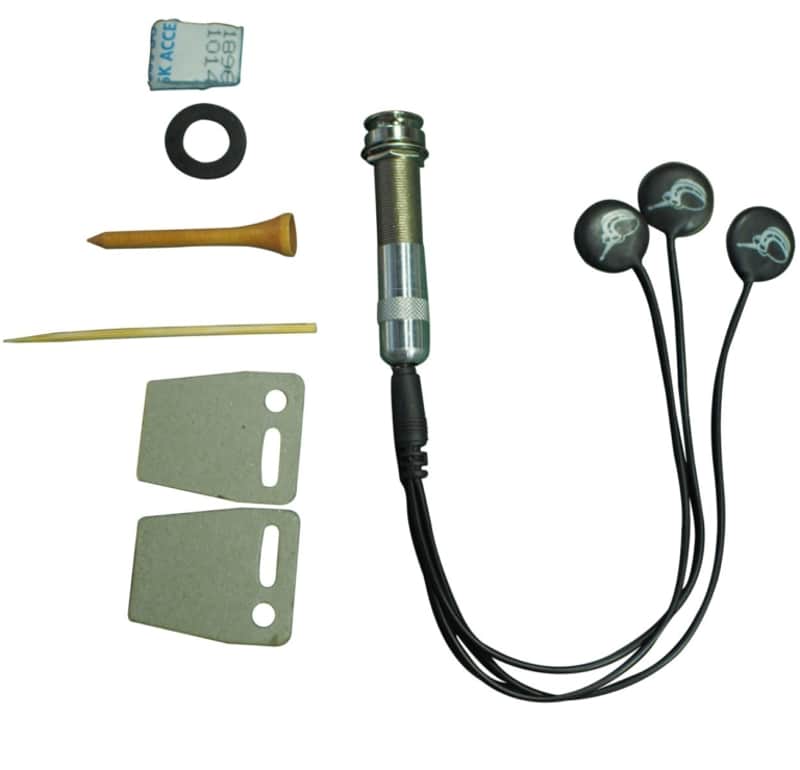

• 3 balanced German-made ceramic piezo elements – 12mm diameter
• Standard 1/4 inch (6.3mm) mono output jack

• 2.5mm mono input jack from piezo elements
• no batteries needed
• length of wire from peizo element to pickup jack: 22cm
• frequency response 22Hz-18kHz
• EADGBE guitar frequency range is E2 (82 Hz) to F6 (1,397 Hz)
• impedance under 1 MΩ
• Installation Guide Here:

You can also use our volume wheel with this pickup The EPA01 is sold on here too
