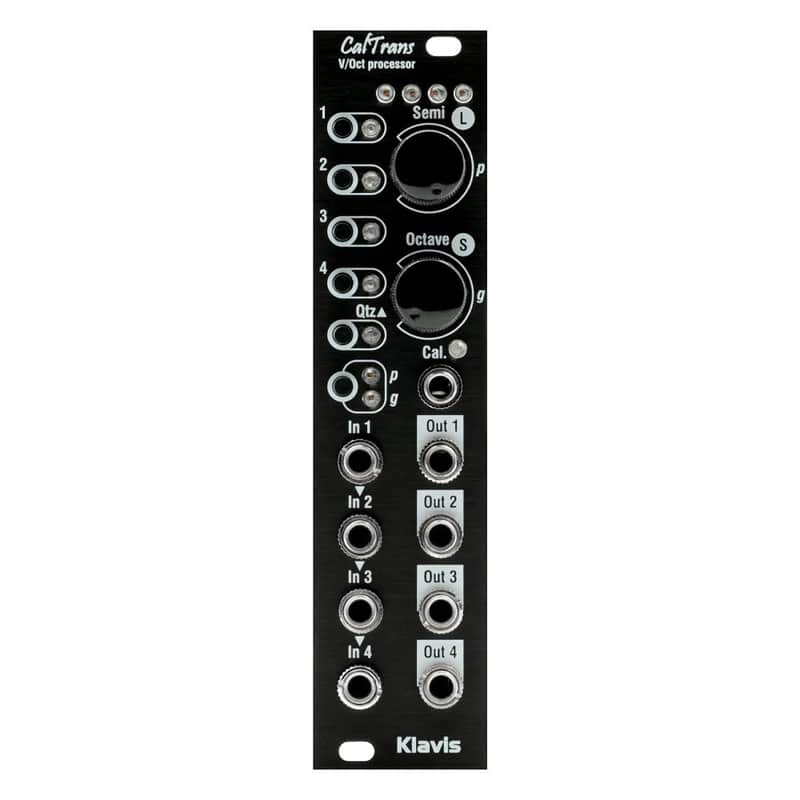

Klavis CalTrans Eurorack CV Calibrator Module (Black)
This seller has not set a shipping cost for Malta. Please contact them to ask about shipping.
Only 1 left
Grab it before it's gone
14-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
The CalTrans solves issues encountered when playing tonal music with a modular system: tracking problems, curves unrelated to Volt per octave ratio, limited octave range, cumbersome transpose...
The Caltrans corrects and expands the range of troublesome VCOs and brings V/Oct tracking to anything that oscillates.
Besides calibration, the CalTrans offers live play features. Each channel can be quantized and any combination of them transposed jointly. VCOs that don't require calibration can be used simply in "Neutral" mode to benefit from the transposition and other musical features.
A pair of rotary encoders with detent allow a precise selection of octaves and semitones. VCOs whose tracking doesn’t go high (low) enough to follow the leader will see their pitch repositioned in their highest (lowest) possible octave so that the global harmony is unaffected. You can add a pinch of portamento and glissando to each channel and save the whole in user presets.
The latest firmware adds user editable scaling of the inputs to match sources that do not generate perfect 1V per octave signals.
Features- Four V/Oct processing channels, each with
- Curve correction and range expansion for any VCO, VCF or other oscillating circuit with a CV acting on pitch
Works with other range systems (e.g. Buchla) - 1:1 in/out V/Oct mode for use without calibration
- Switchable semitone quantizer
- Adjustable portamento time
- Adjustable glissando time
- Curve correction and range expansion for any VCO, VCF or other oscillating circuit with a CV acting on pitch
- Separate semitone and octave transpose click-encoders
- Inputs cascading with no added load for stable pitch control
- Four user presets storing transpose, portamento and glissando
- Storage of the calibration profile for each channel
- Maximum voltage range covering 10 octaves
- Presets, calibration and current state retained over power cycle
- Volt/Oct inputs factory-calibrated in flash memory
- User adjustable input scaling to correct voltage inaccuracies in your sources
- Settings restored after power cycle
- Easy firmware update via a simple audio file
- High-quality push-encoders with metal shaft
- Skiff-friendly & compact module
- User manual in English and German
