About this listing

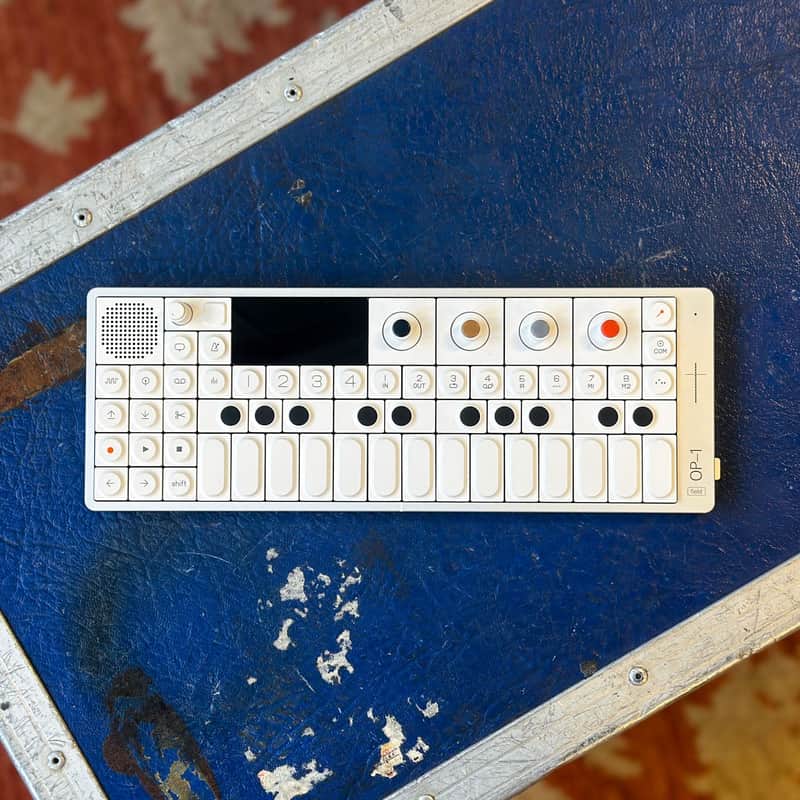

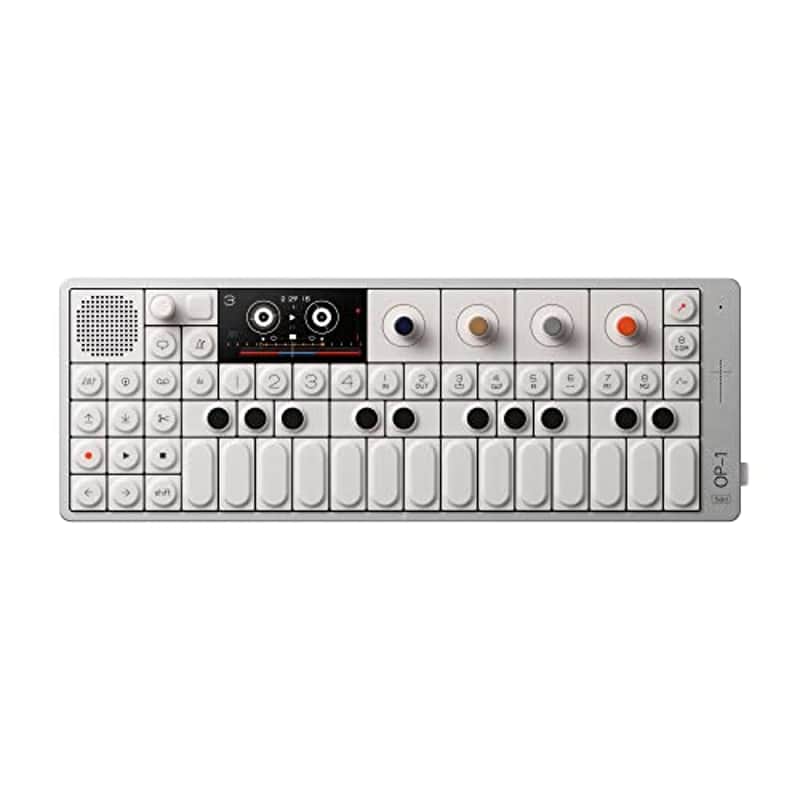

Professional musicians, recording artists, and sound designers in search of a highly portable music making device will be thrilled with the teenage engineering OP-1 Field, the latest flagship instrument that builds upon the success of the original OP-1 with over 100 enhancements, refinements, and upgrades. The aluminum body has been lowered around the keyboard and feels thinner, lighter, and more precise. There's also a 2.4 GHz antenna system that's been fitted inside, and the rear panel now has a plastic cover with two soft Velcro rings for fastening to covers and other accessories.
The OP-1 Field is now stereo throughout its entire signal chain and includes Bluetooth MIDI, USB-C, and an updated speaker system with a passive driver for detailed, fat, and loud sound. The battery has been expanded to 24-hours of continuous use, while the system engine offers multiple tapes and recording formats including Studio 4-Track, Vintage 4-Track, Porta, and Disc Mini. You'll love the new reverb effect and the Dimension synth engine. A flush, all-glass, high-resolution display is easier to read with all new graphics. The unit can also broadcast over FM for even more flexibility.
Firmware Update 1.4.2
New vocoder synth engine
Start armed tape recording on external MIDI
MTP allows AIFF and AIFC files for patches
Vocoder
Operation
With the vocoder active, press mic to select the input source. this is the input for the voice, the modulator, and you can use any input source, such as the built-in microphone, a headset or even the radio or usb. after you've selected your input source, speak and play notes on the musical keyboard. you should now hear your OP–1 field burst into beautiful singing.
In the OP–1 field vocoder, the audio input (the modulator/your voice) is passed through a bank of 20 filters with controllable bandwidth and formant shift. The carrier signal is built-in: a custom 7-oscillator polyphonic synth that goes from a single sawtooth to pure white noise. Everything is fully real-time and modulate-able. The controls at your hand are as follows:
Blue: One knob synth engine
Ochre: Formant shift
Gray: Number of bands
Orange: Controls the dry/wet mix
Features
All new low-profile aluminum body
High-resolution flush display
Internal FM antenna for both RX and TX
Eight swappable tapes for recording
Four different tape styles
All-new drum-kit packs
New Reverb Effect: Mother
New Synth Engine: Dimension
New speaker with passive radiator
MFi/iPhone USB MIDI and audio connectivity
Battery life increased to 24 hours
Slimmer and sleeker profile
New color scheme
Dual Velcro back fasteners
Twenty new preset synth patches
Zoomed in sample editing
Bluetooth Low Energy for wireless MIDI
Pro quality 32-bit audio throughout the signal chain
Stereo mixdown from synth and drum to stereo tape tracks
Stereo drum sampler engine
Improved drum envelope for better transient control
Drum sample stacking
Stereo audio input processing
Improved tape looping
Stereo synth sampler engine
Over 160 minutes of sample storage
4-pole audio jack for headset mic support
Configurable MIDI filtering
New volume setting per patch
Afterburner ground-loop noise suppressor
Built-in user guide
Dual BLE antennas for stable wireless performance
New and improved built-in microphone
Added encoder click functionality
Tape name editor
New external velocity LFO
New range of custom accessories
Up to 500 user patches
Adjustable pitch bend range
Automatic headphone impedance adjustment
BLE advertising toggle
BLE central for connecting controllers
BLE connection list view
Built-in FM radio transmission
Charge power status LEDs
Click-to-hold sequencer
Completely reworked user interface
Custom MIDI settings for connected devices
Custom volume encoder with higher resolution
Detailed country settings for radio
Dual role USB Type-C connector
Ergonomic power switch
Ultrafidelity headphone output
High-resolution accelerometer
Improved averaging for a more reliable tap tempo
Improved equalizer with higher resolution and smoother interpolation
Improved input signal to LFO with smoother envelope
Adjustable MIDI filtering
Refined original patches
Increase to 256MB internal memory
Improved envelope follow in Nitro effect
More random LFO target parameters
Increased tombola simulation accuracy
MTP content management
New custom USB cable
New factory sequencer presets
New font
New form factor
New high resolution VU LED meter
New hold sequencer
New keyboard module
Improved line in signal quality
New metronome sound
New packaging
New pan LFO target
New sawtooth and square LFO shapes
New sketch image
OB-4 compatible using FM, TX, or wire
Pop-up info graphics
Precise master level meters
Printed manual included
QR code guide link
Refined acoustic side shooting loudspeaker grill
Save tempo and sync settings with tapes
Screen brightness control
Smooth knob interpolation
Stereo cluster synth engine
Stereo digital synth engine
Stereo FM synth engine
Stereo phase synth engine
Stereo pulse synth engine
Stereo string synth engine
Stereo tape tracks
Stereo voltage synth engine
System settings
USB audio host
USB audio/MIDI direct connectivity to OP-Z, TX–6, OP–1 and compatible devices
USB MIDI host
User patch rename
Wireless MIDI connectivity to OP-Z and TX–6
Box Contains
teenage engineering OP-1 Field Portable Synthesizer Workstation
1 x teenage engineering OP-1 Field Portable Synthesizer
