About this listing
The RME Fireface UCX II Audio Interface is a highly integrated pro audio solution in an ultra-compact format for studio and live recordings. It continues RME's long tradition of designing compact advanced interfaces, packing into a half-rack size unit what usually would be spread out over two or three 19 inch panels.

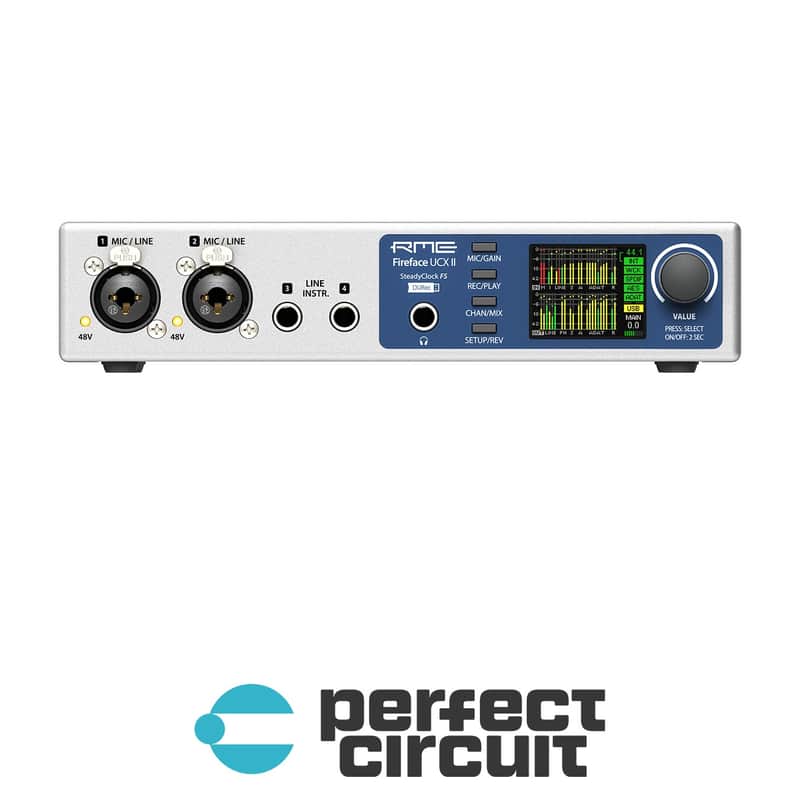

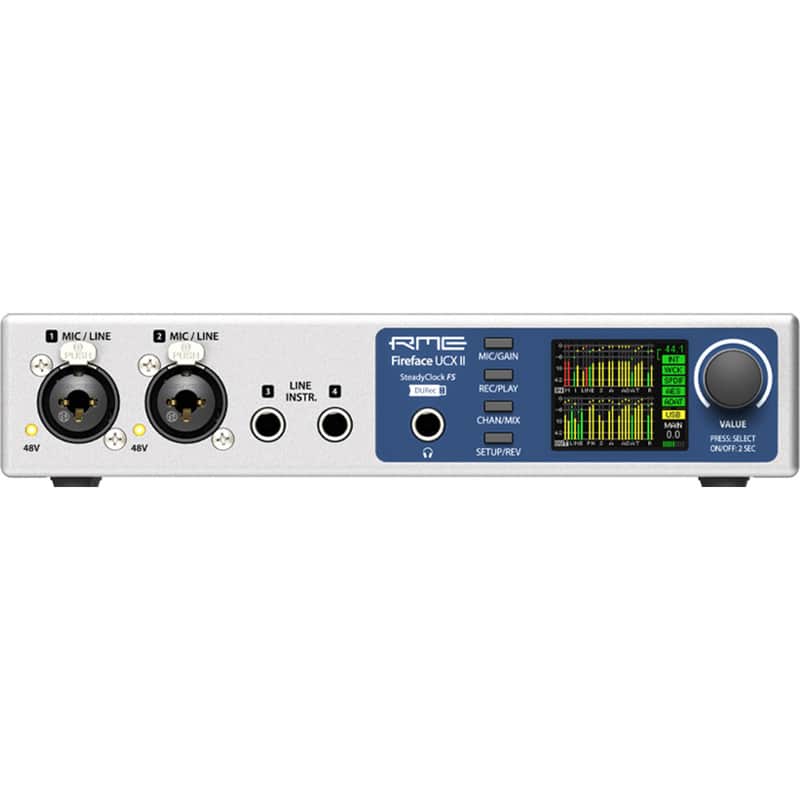

This unique audio system is capable of transferring analog and digital audio data directly to Windows and Mac computers. The latest Plug and Play technology guarantees a simple installation, even for the inexperienced user. Numerous unique features like a well thought-out Settings dialog and an integrated routing solution realize a quick, comfortable and efficient operation of the Fireface UCX II. The Fireface UCX II houses two mic/line preamps in XLR combo configuration on the front panel, along with two digitally controlled line/instrument inputs, followed by a headphone jack, various control buttons, a display, and the main volume knob. At the rear is a set of ten analogue balanced line inputs and outputs, MIDI I/O, ADAT I/O, AES/EBU and SPDIF I/O, USB 2.0 as well as a switchable word clock I/O. With the SteadyClock FS, the Fireface UCX II features the latest clock and jitter rejection technology from RME. Based on a femtosecond clock, SteadyClock FS reduces the intrinsic jitter when converting from and to analogue over all digital formats to a new all-time low.
Full Stand-alone FunctionalityControl all device states directly from the front panel for convenient, direct access to all features. Four keys and the encoder, the high-resolution and clear color display, and a well thought-out menu structure enable the user to quickly change and configure the device’s settings. Additionally internal memory allows for the permanent storage of six different states of the unit. Therefore the Fireface UCX II is able to operate fully stand-alone, without any connected computer. In stand-alone operation it can transform into totally different devices by the simple click of a button. Furthermore TotalMix FX can also be controlled via MIDI.
40-Channels ready for your Mobile Recording RigDURec is an integrated digital recorder for all inputs and outputs directly to USB memory devices via the rear USB port. It allows to record on USB thumb drives or hard drives with up to 2 TB capacity. The recording functionality is provided by the internal DSP, and is therefore independent from a connected Windows or Mac computer. This USB port can alternatively be used for direct connection of RME’s optionalARC USB remote control. The Direct USB Recording converts the Fireface UCX II into a stand-alone field recorder and a powerful multichannel live player for previous recordings, e. g. for virtual sound checks. Live concerts, band rehearsals or spontaneous jam sessions can be directly recorded and played back from the medium - even completely stand-alone without computer or software. All input and output channels can be individually chosen for recording and playback.
Powerful Applications for Mixing, Monitoring and Measurement includedThe Fireface UCX II comes with the TotalMix FX DSP mixer offering comprehensive routing and monitoring options, as well as the DIGICheck Analyzer allowing to measure and analyze the digital data feed in both directions with maximum precision. TotalMix FX can completely replace an external mixer, enabling the creation of multiple latency-free monitor mixes with EQ, Dynamics, Reverb and Delay for any outputs, incl. main monitors and headphone mixes for musicians.The additional TotalMix Remote is a remote control for TotalMix FX, to control the hardware mixer and effects in RME audio interfaces. TotalMix Remote mirrors the current state of the host system on the iPad and Windows/Mac computers - the entire mixing state, the complete routing, all FX settings, up to the level meters, and everything in real-time. Easily adjust all the mixer and FX settings from a distance, via Ethernet and WiFi.
DC-Coupled Outputs - CV/Gate Voltage ControlMost audio interfaces are traditionally designed with what is called 'AC-coupled outputs', where capacitors are used to filter out any extreme low frequencies. Whilst these frequencies are generally considered undesirable for audio - eating into headroom and potentially causing damage to other equipment - one instance where DC-coupling remains desirable is the world of modular synthesizers, where static or slow-moving signals are used for control over various parameters such as pitch note values or LFOs. All of the Fireface UCX II’s line-level outputs are fully DC-coupled, allowing for the sending of control voltages (CV) or Gate information to modular synthesizers (such as the popular Eurorack and Moog/MOTM/Synthesizers formats) and other studio hardware.
Sonarworks and RME ColaborationThanks to the DSP in certain RME audio interfaces, a unique and powerful colaboration between RME and Sonarworks, brings new possibilities in monitoring calibration and audio reproduction. Certain RME interfaces are now compatible with the SoundID Reference calibration profile, allowing you to export it directly onto the DSP and eliminating the need to run the software in the background.
Compatible Interfaces include:UFX+MADIface XT II
If you own a perpetual license for Sonarworks’ SoundID Reference you can load your exported profile directly to these interfaces to run them via the interface's built in DSP - no longer needing to run the software in the background.
How does it works:Step 1: Measure your set upMeasure and calibrate your studio speakers using the microphone provided by following the steps in the set-up guide.
Step 2: Choose your target modeChoose your calibration Profile and correct for the Dolby Atmos Music curve, flat frequency response or create custom profiles.
Step 3: Export your ProfileExport up to 32 unique Profiles directly to RME interface’s internal memory, watch as your settings are automatically adjusted.
Step 4: You’re Now Ready to MixSit back and enjoy a consistent translation of your audio no matter what format you are working in.
This gives you benefits in room correction, once only available with the likes of Genelec's GLM profiles being able to be stored on the Genelec SAM series monitors, but with this colaboration - you get the functionality with any monitoring system. Further this works for stereo and ATMOS (immersive audio) systems.
RME Fireface UCX II Audio Interface Features
Full standalone operation, no computer required
DURec-integrated digital recorder allows you to record directly to USB memory devices
All channels (20 inputs and 20 outputs) can be individually chosen for recording and playback
CV/gate low-latency voltage control for automating synthesizers, mixing consoles, and effects
SteadyClock FS reference-class digital clocking
USB out for ARC USB remote control (available separately)
Compatible with TotalMix FX for iPad
DIGICheck turns the interface into a highly versatile front-end for audio measurements and software development
Class-compliant mode for Linux environments
Crisp high-resolution color display shows metering for all input and output channels
RME Fireface UCX II Audio Interface Specifications
8 x Analog I/O
2 x XLR/TRS Mic/Inst/Line
2 x Line/Inst Input
1 x Phones Output
1 x AES I/O
1 x ADAT I/O
1 x SPDIF I/O Coax
1 x Word Clock I/O
1 x MIDI I/O
Class Compliant Mode
TotalMix FX
ARC USB (available separately)
RME USB 2.0
DC-coupled Outputs
SteadyClock FS
DURec
AutoSet Digital Gain Control
