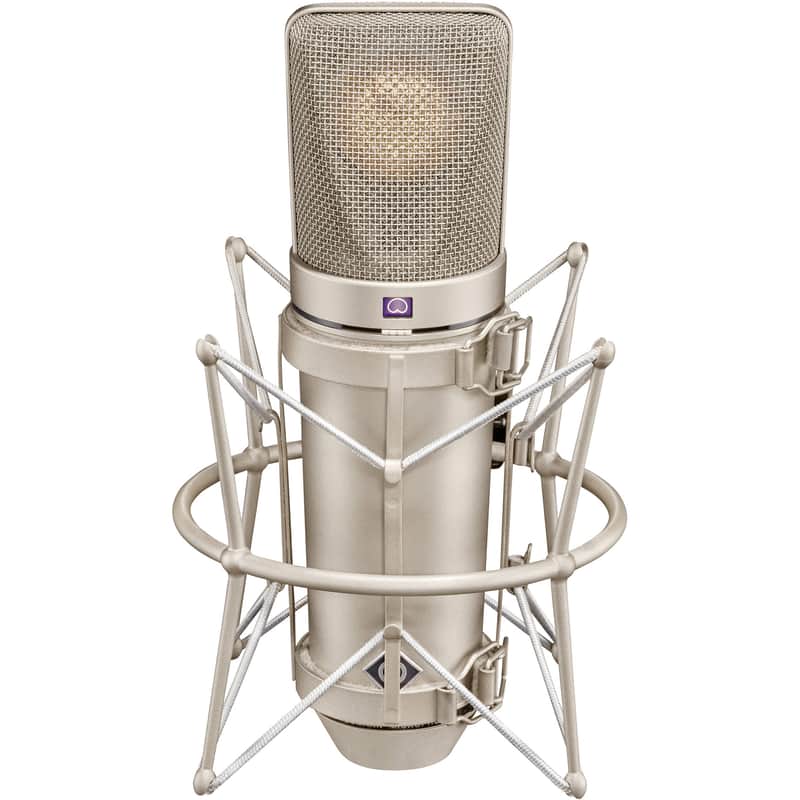

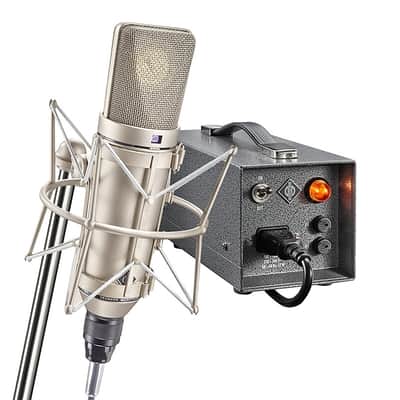

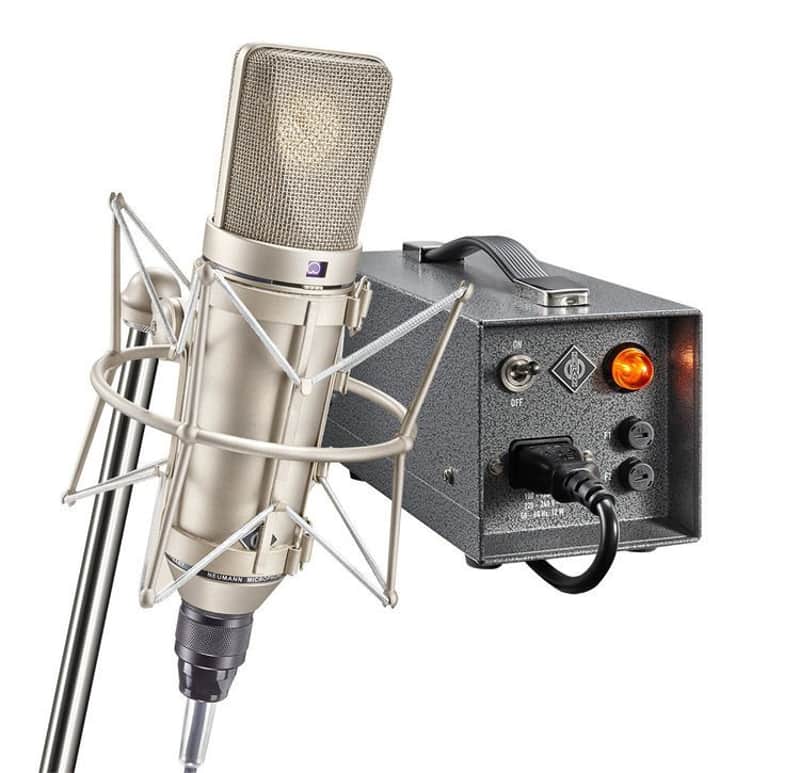

Neumann U67 Studio Tube Microphone Set
This B-Stock re-issue of the Neumann U67 is in good condition and has been used for client demos. It has been fully inspected by our service engineers and is functioning to spec and sounding fantastic. The original warranty is still valid.The U67 is a landmark moment in sound recording. The U67 is one of the most sought after microphones that been out of production for decades. The Neumann U 67 is a universal studio microphone suitable for all applications. Its smooth top-end with a subtle tube shimmer makes the U 67 an outstanding vocal microphone. Due to its essentially linear response in three polar patterns – omni, cardioid, and figure-8 – the U 67 is also a very versatile microphone for all kinds of instruments such as strings, woodwinds, brass, piano, drums, acoustic and electric guitar, bass guitar and upright bass.
Introduced in 1960, the U 67 was the quintessential studio workhorse throughout the formative years of modern music. Today, more than ever, its inimitably smooth sound continues to be in high demand. Now, for the first time in decades, Neumann’s legendary tube microphone is back in production, built to the original specifications.
Others have tried to imitate the U 67, but Neumann have referred back to archived documentation and the re-issue is sonically identical to the U 67 made from 1960–1971. It uses the same capsule and electronic design. Key parts, such as the BV 12 output transformer, are meticulously reproduced according to original documentation. EF86 tubes are carefully selected for optimal characteristics and lowest noise in a dedicated measurement facility. The power supply was redesigned to meet today’s strict safety requirements and to accommodate the slightly higher filament current of newer premium grade tubes. The new power supply NU 67 V is fully compatible with older U 67 microphones.
Return of a LegendIntroduced as the successor to the eminent Neumann U 47, a lesser microphone would have failed. But the U 67 was quickly adopted as the new studio standard, offering many advantages over its predecessor. With three selectable polar patterns and advanced tube circuitry, including low cut and pad switches, the Neumann U 67 was well-equipped for virtually any recording task. It still is: To this day, many top level engineers would choose the U 67 as their "desert island" microphone for its extraordinary versatility and unmatched sound quality.
Neumann-Engineering at its BestThe U 67 was the first microphone equipped with the famous K 67 capsule, which has since become associated with “the Neumann sound” and continues to be used in its successor, the U 87 A. No less important is the U 67’s masterful tube circuit featuring a clever pre-emphasis/de-emphasis scheme to minimize tube hiss. The U 67 was also the first microphone to address modern recording techniques such as close miking. Its switchable low cut filter compensates for the proximity effect occurring at short recording distances. Using its preattenuation, the U 67 can handle high sound pressure levels of up to 124 dB without distortion (and much more if you don’t mind a bit of "tube grit").
As timeless as its sound and technical design is its outer appearance. The U 67’s cone-shaped body and the tapered headgrille have since become iconic for the Neumann brand; the same elegant design would grace its solid state successor, the U 87, for the next 50+ years.
Neumann U67 Features
Classic tube circuit, transformer balancedReissue of the legendary Neumann U 67Made to original specifications using archived documentationNew power supply NU 67 V automatically adapts to the local mains voltageHandmade and hand soldered in GermanyBalanced sound in three polar patternsVintage case, handmade in Germany
Specifications
Acoustical operating principle: Pressure gradient transducer
Directional pattern: Omnidirectional, cardioid, figure-8
Frequency range: 20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm: 15/24/16 mV/Pa1)
Rated impedance: 200 ohms
Rated load impedance: 1 kohms
Equivalent noise level, CCIR2): 32/28/31 dB1)
Equivalent noise level, A-weighted2): 21/17/20 dB-A1)
Signal-to-noise ratio, CCIR2) (rel. 94 dB SPL): 62/66/63 dB1)
Signal-to-noise ratio, A-weighted2) (rel. 94 dB SPL): 73/77/74 dB1)
Maximum SPL for THD 0.5%3): 114 dB (cardioid)
Maximum SPL for THD 0.5% with preattenuation3): 124 dB
Maximum output voltage: -9.8 dBu
Power Supply: NU 67 V
Matching connectors:
Microphone: spec. 7pin
Power Supply: XLR 3 F
Weight: 560 g
Diameter: 56 mm
Length: 200 mm
Preis€6,801.20
+ €49.51 Versand
€43.32 Kombinierter Versand
14 Tage Rückgaberecht
Genieße Sorgenfreiheit mit deinem neuen Equipment
