About this listing

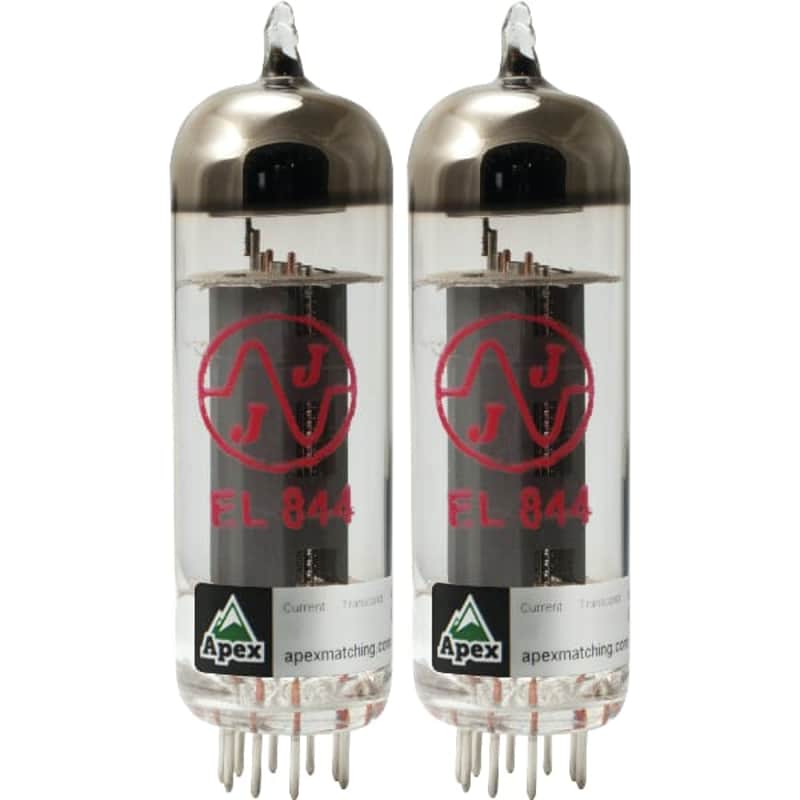

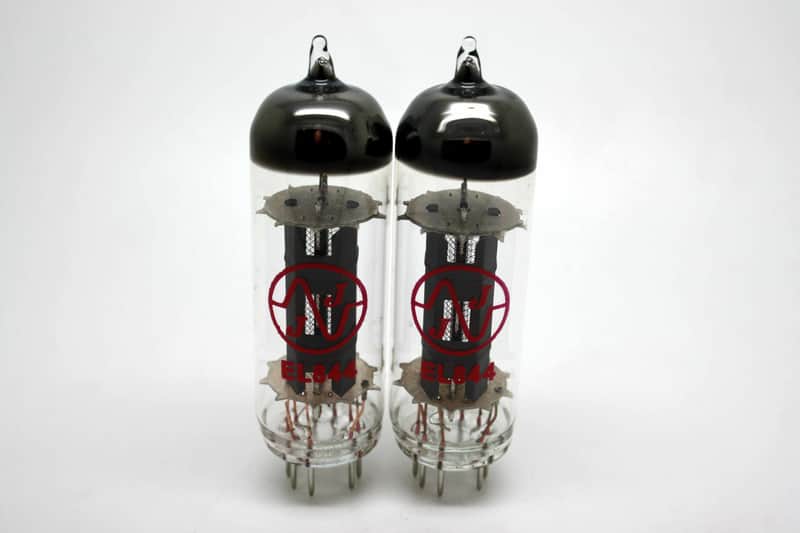

The JJ Electronic EL844 is a variation on the classic tube which reduces the overall headroom by 25%. With the reduced power, hitting that rich distortion that the EL84 is notorious for is more manageable. This tube will hit full saturated power tube sounds without having to crank the amps volume as high which makes them a great choice for recording as well as home / bedroom use.
These tubes are Apex® Matched.Product MeasurementsItem Diameter: 22 mmItem Height: 77.8 mmBody Height: 71.4 mmFilament Voltage (Uf): 6.3 VFilament Current (If): 0.76 APlate Voltage (Ua): ≤ 300 V, 250 V typicalPlate Current (Ia): 10 mAGrid Voltage 1 (Ug1): ≥ -100 V, -7.3 V typicalGrid Voltage 2 (Ug2): ≤ 300 V, 250 V typicalTransconductance (S): 6.5 mA/VInternal Resistance (Ri): 0.1 MΩPlate Dissipation (Wa): ≤ 9 WCathode Current (Ik): ≤ 60 mAHeater to cathode voltage (Uk/f): ≤ 100 VGrid Circuit Resistance 1 (Rg1), Fixed Bias: 0.5 MΩGrid to Cathode Capacitance (cg/k): 10.8 pFPlate Capacitance (ca): 6.6 pFGrid to Plate Capacitance (ca/g): 0.1 pFGrid 1 to filament capacitance (cg1f): 0.15 pFGrid Circuit Resistance 1 (Rg1), Automatic Bias: 1 MΩ
Price$49.03
Free Shipping
Free Shipping
from Tempe, AZ
30-Day Return Policy
Enjoy peace of mind with your new gear
1
10+ in stock
