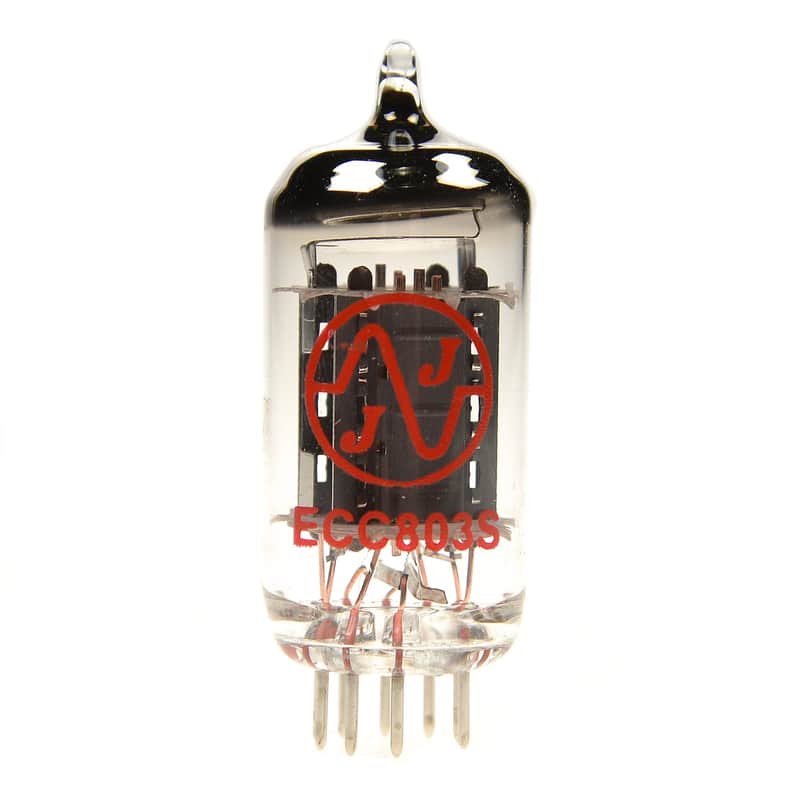

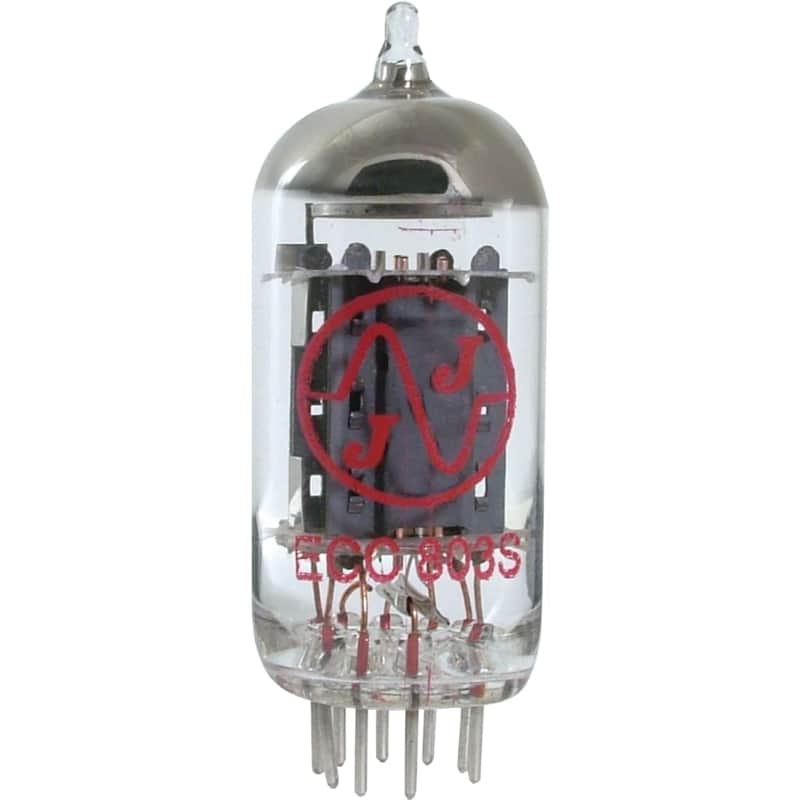

The JJ Electronic ECC803 is a high performance, long plate version of the ECC83 / 12AX7. Like all JJ preamp tubes, these are built into a rugged package using the spiral filament and robust plate structure resulting in low microphonics and high reliability. The long plate version of this tube differs from the standard version with its stronger and fuller sound which offers a wider and more balanced frequency response. This tube ranges from deep rich lows to pristine highs covering a spectrum of harmonically dynamic mids along the way. This tube is an excellent choice for any guitar amp and perfect for studio and Hi-Fi equipment as well. This tube will work in any 12AX7 or ECC83 position.
For a Performance Tested or Matched version of this tube, see T-ECC803-S-JJ-GX.
Product MeasurementsItem Diameter: 22.2 mmItem Height: 57.6 mmBody Height: 51.2 mmFilament Voltage (Uf): 6.3 / 12.6 VFilament Current (If): 300 / 150 mAPlate Voltage (Ua): ≤ 300 V, 250 V typicalPlate Current (Ia): 1.2 mATransconductance (S): 1.6 mA/VGain (μ): 100Internal Resistance (Ri): 62.5 kΩPlate Dissipation (Wa): ≤ 1.2 WCathode Current (Ik): ≤ 9 mAHeater to cathode voltage (Uk/f): ≤ 100 VGrid Circuit Resistance (Rg): 2,2 MΩGrid capacitance (cg1): 1.6 pFPlate Capacitance (ca): 0.46 pFGrid to Plate Capacitance (ca/g): 1.7 pF
Price$28.90
Free Shipping
Free Shipping
from Tempe, AZ
30-Day Return Policy
Enjoy peace of mind with your new gear
1
10+ in stock
