About this listing

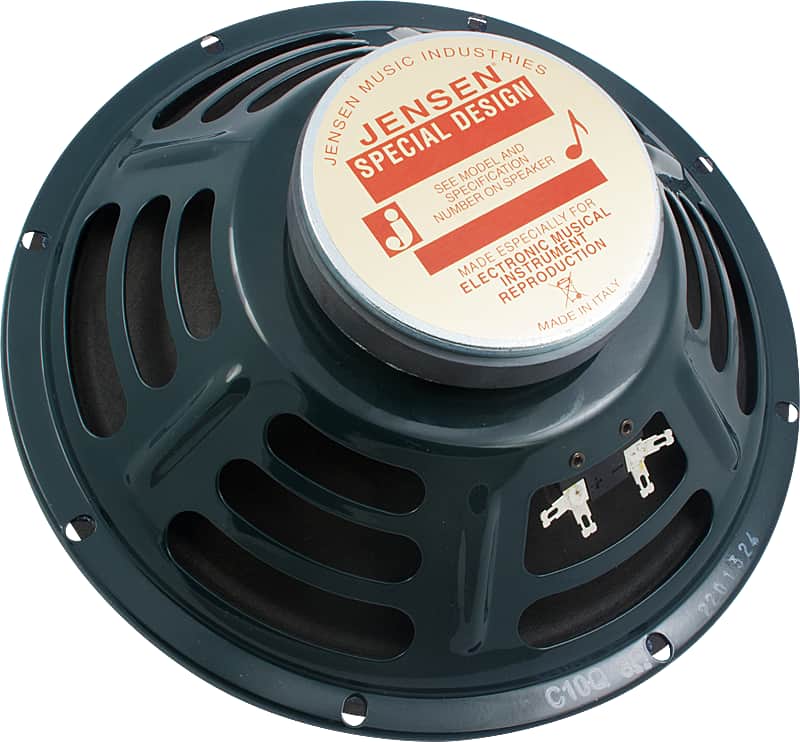

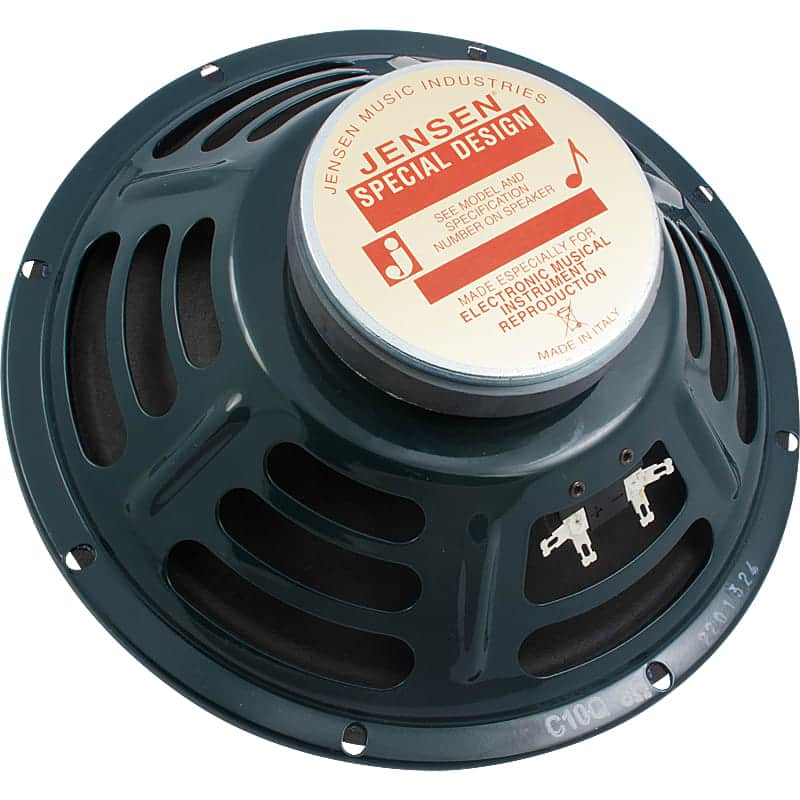

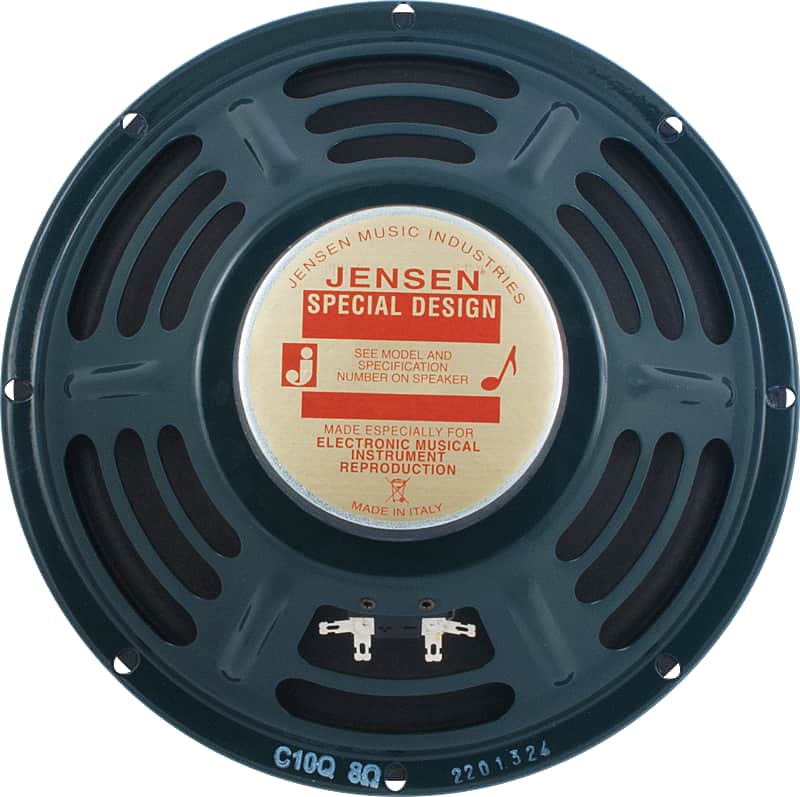

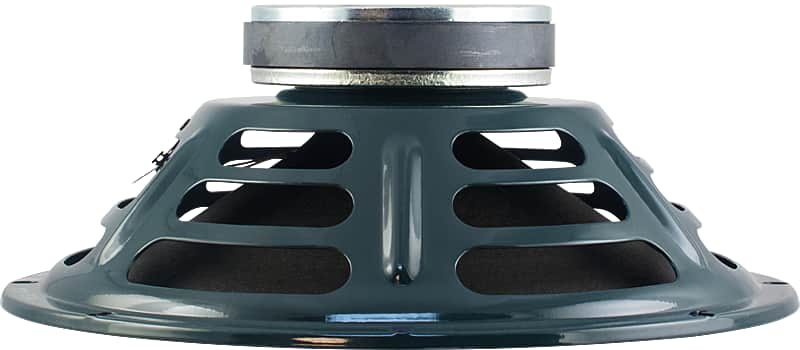

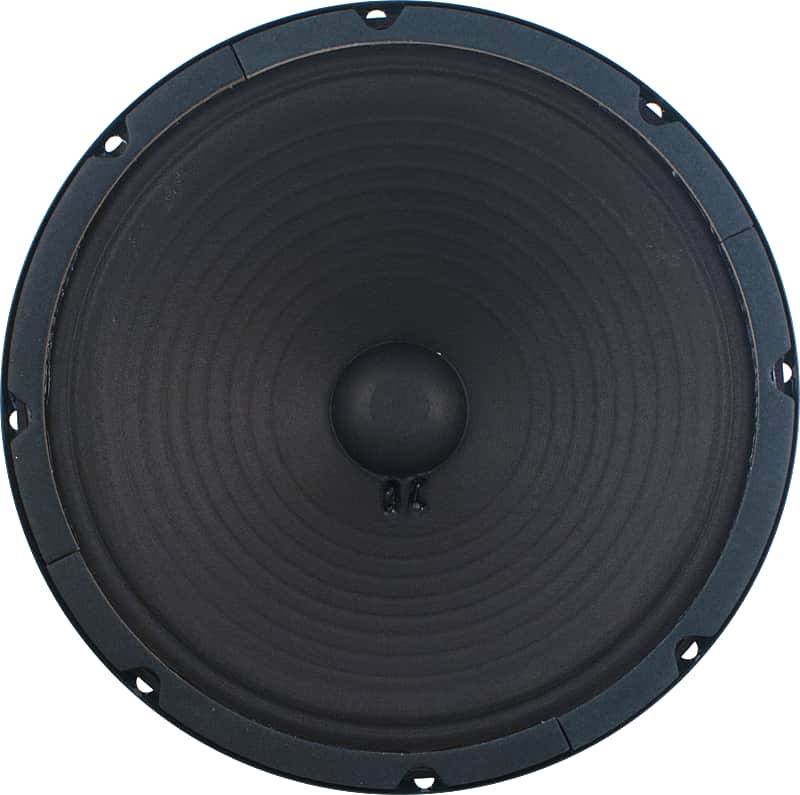

Adopted primarily in the Vibrolux® and Vibroverb® amps of the Brownface and Blackface era, the C10Q is a very easy to drive speaker that breaks up nicely with straightforward biting character. It was also very common in many Silvertone® and Valco® amps. It loves the 2x10 configuration and the floating baffles.
Guitarist Description: Straightforward tone with mid-frequency bite. Presented with overdrive distortion, it can sound edgy.
Lows: Loose
Mids: Aggressive
Highs: Bright
Overdrive: Edgy
Product MeasurementsDiameter: 10 in.Voice Coil Diameter: 1.25 in.Depth: 3.8779 in.Outer Diameter: 10.1969 in.Inner Diameter: 9.0944 in.Mounting Hole Bolt Circle Diameter: 9.6456 in.Magnet Assembly Diameter: 4.0157 in.Mounting Hole Diameter: 0.2559 in.Nominal Overall Diameter: 259.00 mmNominal Voice Coil Diameter: 32.00 mmFlux Density: 0.92 TVoice Coil Winding Depth: 9.00 mmMagnetic Gap Depth: 6.00 mmMagnet Type: FerriteVoice Coil Winding Type: CopperVoice Coil Former: EpotexCone Material: PaperSurround Material: Integrated PaperDust Dome Material: Solid PaperBasket Material: Pressed Sheet SteelSurround Treatment: NoVoice Coil DC Resistance (Re): 6.00 ΩResonance Frequency (ƒS): 96.00 HzMechanical Q Factor (QMS): 9.78Total Q Factor (QTS): 1.30Mechanical Moving Mass (MMS): 18.30 gMechanical Compliance (CMS): 150.00 µm/NForce Factor (BxL): 6.64 Wb/mEquivalent Acoustic Volume (VAS): 23.20 litersLinear Displacement, maximum (XMAX): 1.50 mmReference Efficiency (nO): 1.61 %Diaphragm Area (SD): 330.10 cm2Losses Electrical Resistance (RES): 52.00 ΩVoice Coil Inductance @ 1 kHZ (LE): 0.62 mHRated Power: 355.00 WMusical Power: 70.00 WSensitivity @ 1W, 1m: 94.70 dB
Price$91.30
