About this listing

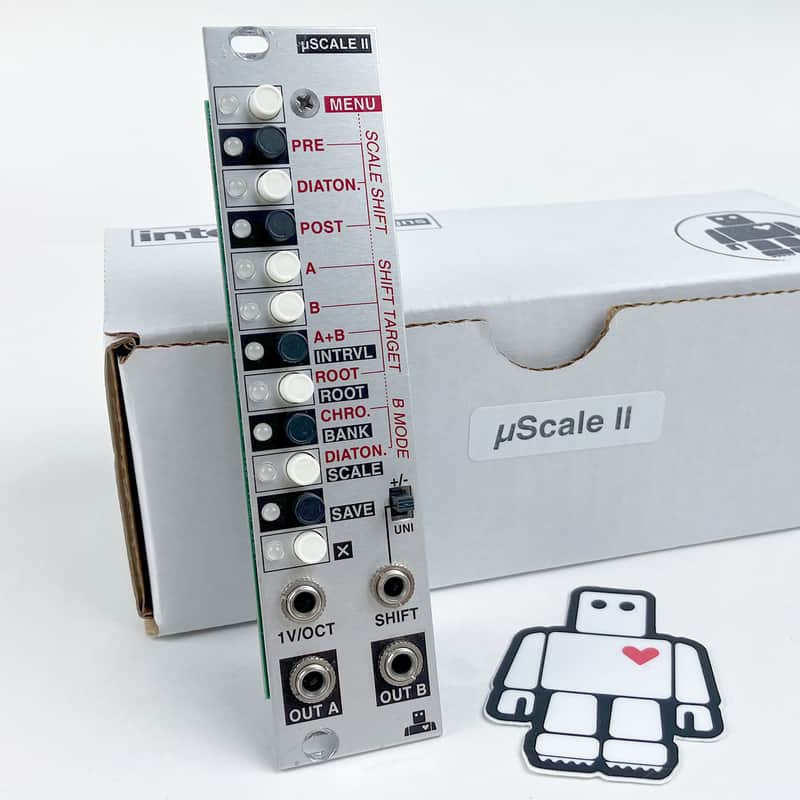

This listing is for an Intellijel uScale II module, which was purchased new in 2015. It comes with a power ribbon, screws, sticker and original box. The unit has been tested and is in working order. Please refer to the photos for more details.———————————————————————————————————Manufacturer's Description:The Intellijel uScale II is an intuitive quantizer in a mere 6HP. The module is capable of converting almost any analog CV source into intriguing, melodic, and canorous riffs. It features a logical, compact, and tactile interface that enables users to alter crucial parameters—such as the scale root—on-the-fly.uScale II Features12 buttons with matching dual color leds for selecting scale notes in real time (and visual feedback of quantizing)Processes 0-10v (as 1v/oct) in the ‘in’ inputAccepts 0-10v or ±5v on the ‘shift’ input (jumper selectable) for a shift range of ±12semitones or ±12 scale degreesTwo 0-10v outputs (a and b) with 1v/oct scalingOutput b is a user selectable interval based on the root note on output a. this interval can be chromatic (fixed semitones) or diatonic (interval is within the current scale and the value is based on scale degrees). this interval can be a bipolar value of ±12Shift has user selectable destinations of note a, b, a+b or the scale rootShift has user selectable modes of where shifting occurs: before scaling, in scale (diatonic) or post scale (key shifting)Menu for shifting the scale root manuallySpecial ‘scale shift” mode allows the “shift” input to select scales from the current bank (so 12 scales can be selected by cv)Can store 12 scales in 12 banks for a total of 144 different user scalesModule ships with 5 banks preloaded with scales (they can be erased by the user and reprogrammed)Precision trimmers on pcb for fine tuning and scaling the two outputsSkiff friendly depthuni/bipolar cv switch added to the panel16bit super low INL error TI DAC which translates to +/-0.0005V accuracy for pitch CVProduct DetailsEurorack Module6 HP Width51mm DeothCurrent Draw: 60mA @ +12V, 7mA @ -12V
Price$139
Free Shipping
