The 102 Series machine heads are a triumph in engineering and styling. The housing provides a maximum bearing for worm, gear, and string post. Worm and gear are precision-cut for perfect meshing, which eliminates backlash and slippage. Countersunk tension screw permits player to regulate turning tension to any degree. Enclosed gear box with special lubricant for a lifetime of trouble-free service.
Sealed-in, lubricated gears
Available in standard 14:1 gear ratio and fine 18:1 (102-18) gear ratio
25/64” post hole
Post length to hole: 23mm
Overall post length: 28.2mm
Weight per pc/per set: 1.6oz/9.6oz
Max. string gauge: .074”

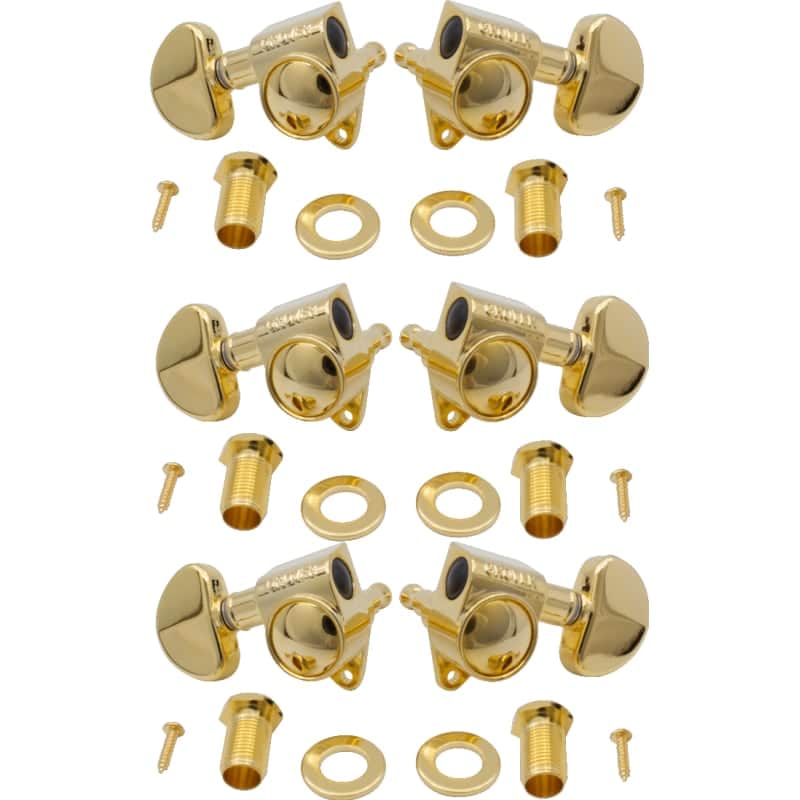

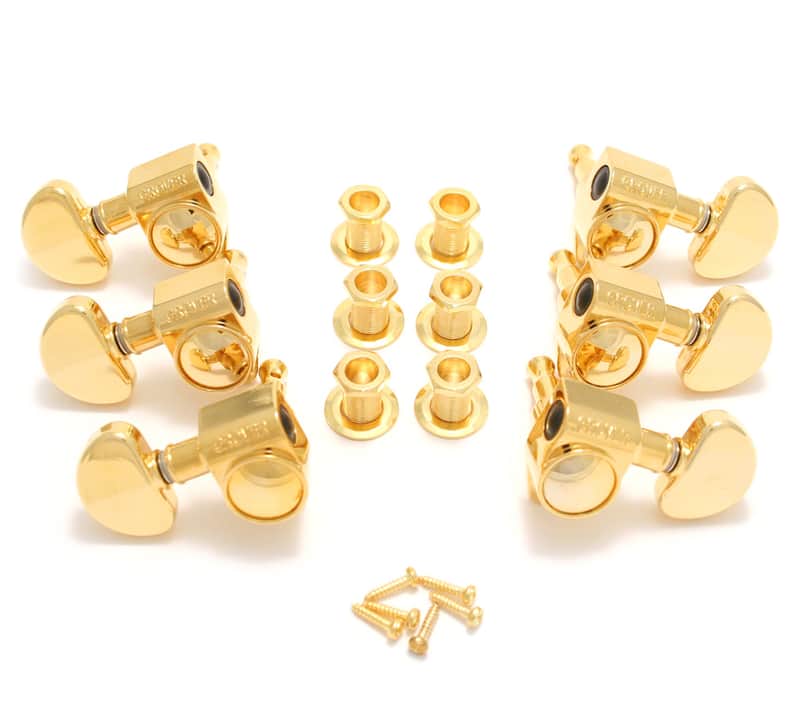

Hardware included (bushings, washers, screws)
Drop-in replacement for:
102-18 Series
102V Series
103 Series
106 Series
109 Series
109-18 Series
135 Series (Top mounting hole will be visible)
136 Series (Top mounting hole will be visible)
502 Series
509 Series
Product MeasurementsGear Ratio: 1:14Bushing Length: 13 mmKnob Depth: 8 mmKnob Width: 17 mmKnob Length: 23.85 mmItem Width: 42.4 mmItem Length: 27.2 mmMounting Hole Diameter: 2.6 mmString Post Diameter: 6 mm
