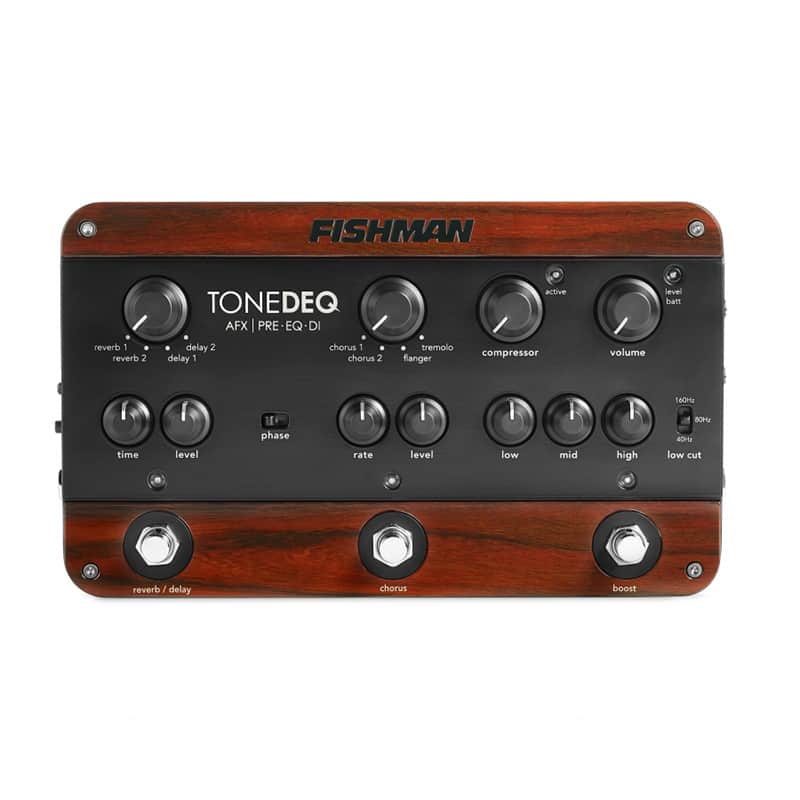

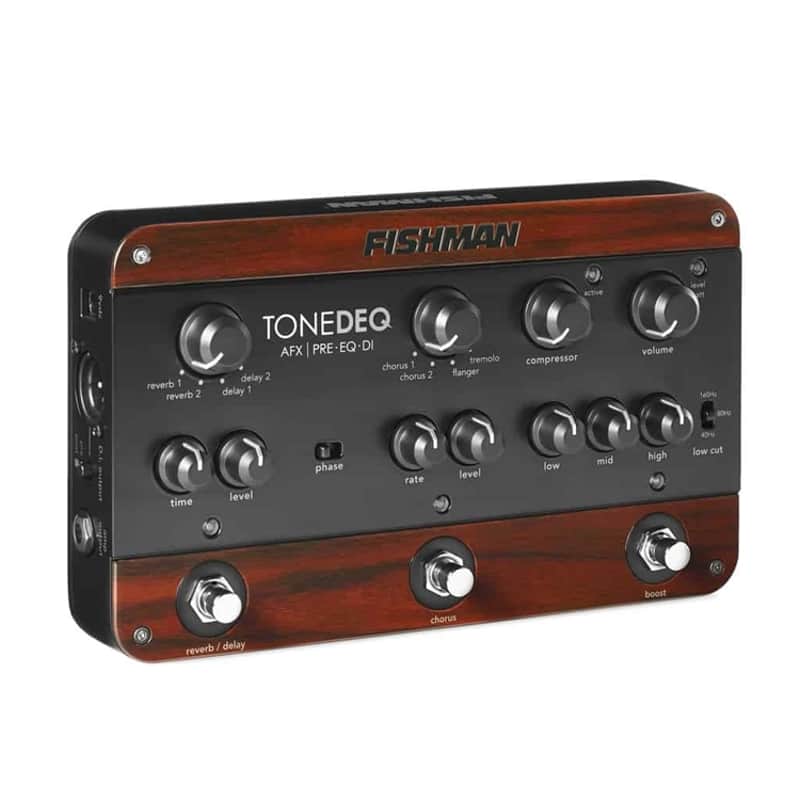

The ToneDEQ Preamp EQ Multi-effects is a complete performance solution for the acoustic musician. With a high-quality preamp, dual effects section, tone controls, a compressor, level booster and a balanced D.I. — it’s got everything you need in one box.
Pure Analog Circuitry
The ToneDEQ analog signal path goes from end to end — from preamp to output — to give acoustic musicians a richer tonal quality. Even the digital effects are mixed in parallel so they don’t affect the purity of your acoustic instrument.
Multi-effects
The ToneDEQ offers two separate effects sections: “reverb/delay” with 2 reverbs, 2 delays, time and level controls, and “chorus” with 2 chorus settings, one flanger, and one tremelo. There is also an onboard compressor.
Fully Balanced Stage D.I.
Flexible outputs include a 1/4″ amplifier output and XLR D.I. output for the lowest noise possible. Plus the D.I. features automatic ground-lifting and selectable pre/post EQ settings.
Discrete Class-A Preamp
With Fishman, you get quality discrete class-A signal conditioning created by the leader in instrument preamp design. The high-impedance input is a must when using a passive instrument pickup.
Advanced 4-Band EQ
Legendary 4-band equalizer design provides superior tone control for any acoustic instrument. The variable low-cut filter controls sub-bass effects produced by some passive pickups.
Specifications
INPUT:
10M Ohm, discrete class-A JFET design
AUDIO:
All-analog signal path with parallel digital effects
TONE CONTROL:
4-band EQ with Bass, Middle, Treble, and selectable Low Cut
DUAL EFFECTS:
Reverb (2) or Delay (2), Chorus (2), Flanger or Tremolo
DYNAMICS:
Soft-knee Compressor, Boost footswitch (up to 9dB)
FEEDBACK CONTROL:
Selectable Phase invert
AUDIO I/O:
1/4” mono instrument input, 1/4” amplifier output, balanced XLR D.I. output with pre/post routing
DIMENSIONS:
5.36” L x 9.5” W x 2.2” H (136 mm) (241 mm) (56 mm)
WEIGHT:
2.5 lbs (1.1 kg)
BATTERY
Powered by 9-volt battery (not included), or Fishman 910-R power adapter (optional) BATTERY LIFE 12 hours
