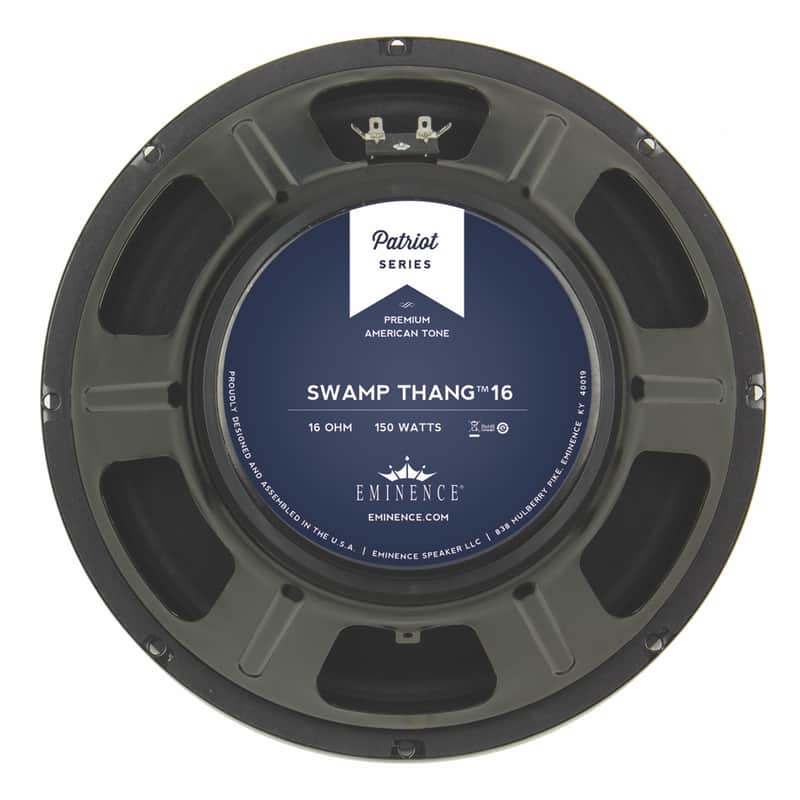

The Swamp Thang Guitar Speaker produces anything but a muddy tone. Whether you're looking for a thick, biting or smooth tone, the Swamp Thang will deliver.Eminence Swamp Thang Guitar SpeakerThe Eminence Swamp Thang is perfect for that time where you gotta run through a jungle. Thick dirty bite or searing smooth tone are both things this speaker excels at.SpecificationsNominal Basket Diameter: 12 inch, 304.8mmNominal Impedance*: 16 ohmsPower Rating - Music: Watts 150W, Program: n/a Resonance: 97HzUsable Frequency Range: 70Hz-5kHzSensitivity***: 102Magnet Weight: 59 oz.Gap Height: 0.312 inch, 7.92mmVoice Coil Diameter: 2 inch, 50.8mmThiele & Small ParametersResonant Frequency (fs): 97HzDC Resistance (Re): 6.92Coil Inductance (Le): 0.42HMechanical Q (Qms): 14.43Electromagnetic Q (Qes): 0.55Total Q (Qts): 0.53Compliance Equivalent Volume (Vas): 41.3 liters / 1.5 cu. ft.Peak Diaphragm Displacement Volume (Vd): 43ccMechanical Compliance of Suspension (Cms): 0.10mm/NBL Product (BL): 14.2 T-MDiaphram Mass inc. Airload (Mms): 26 gramsEfficiency Bandwidth Product (EBP): 177Maximum Linear Excursion (Xmax): 0.8mmSurface Area of Cone (Sd): 532.4 cm2Maximum Mechanical Limit (Xlim)Mounting InformationRecommended Enclosure: Sealed: Acceptable, Vented: Acceptable Overall Diameter: 12.01 inch, 305.1mmBaffle Hole Diameter: 10.95 inch, 278.1mmFront Sealing Gasket: fitted as standardRear Sealing Gasket: fitted as standardMounting Holes Diameter: 0.25 inch, 6.4mmMounting Holes B.C. D.: 11.63 inches, 295.4mmDepth: 5.2 inches, 132mmNet Weight: 11.1 lbs., 5 kgShipping Weight: 12.8 lbs., 5.8 kgMaterials of ConstructionCoil Construction: Copper voice coilCoil Former: Polyimide formerMagnet Composition: Ferrite magnetCore Details: Non-vented coreBasket Materials: Pressed steel basketCone Composition: Paper ConeCone Edge Composition: Paper cone edgeDustcap Composition: Zurette dust capzZounds is an authorized dealer of Eminence products.
Price$135.99
