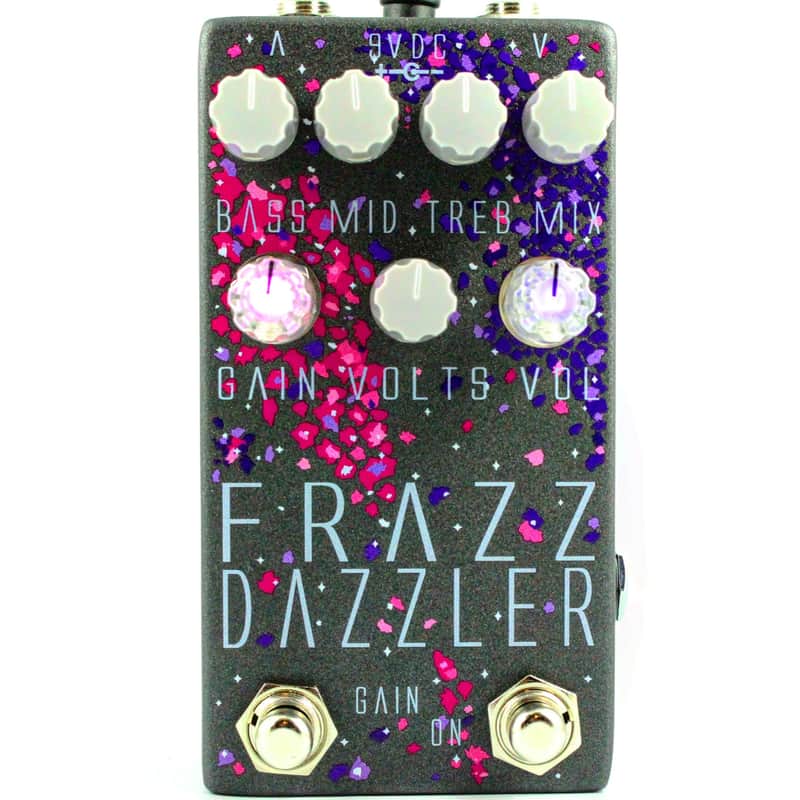

Frazz Dazzler by Dr. Scientist
The Frazz Dazzler is a dual-channel, aggressive fuzz with a wide gain range and a full 3-band equalizer. The Frazz uses a unique circuit topology for extremely high gain even on the low gain channel. The high gain channel offers over-the-top saturation with a built-in noise gate. Both channels make use of a variable regulator for a powerful voltage starve system resulting in a range of sounds from lower headroom/more clipping to glitchy, sub-octave tones. Like all Dr. Scientist pedals, the Frazz Dazzler can be used with guitar, bass, synths, and many other instruments.
Operation
500kΩ/1kΩ
100mA @ 9VDC, 2.1mm centre negative plug
True Bypass with soft touch relay switching
Additional Specs
Mono input, Mono output, TRS Expression input
Treble Control: +/-15dB 2nd Order peaking filter centred at 3kHz
Mid Control: +/-15dB 2nd Order peaking filter centred at 800Hz
Bass Control: +/-15dB 2nd Order peaking filter centred at 100Hz
Exp Input: TRS cable, 10kΩ to 100kΩ resistance
Dimensions: 70mm wide, 129mm long, 59mm tall (2.75” wide, 5.1” long, 2.3” tall)
Manual
FAQ
What kind of expression pedal can I use?
You need to use a passive expression pedal (not powered) with 10kΩ to 100kΩ of resistance with a TRS cable with no grounded connection (ie not a volume pedal).
What does the internal trim pot do?
The internal trim pot is used to set the lowest threshold of the voltage starve knob. To get the widest range of the Volts knob, turn the Volts and Gain knobs down, your instrument volume up, and adjust the trim pot until the pedal produces audio (It will produce suboctave tones).
What does the side jack do?
The side jack is for an expression pedal input. The pedal you plug in will take over for the Mix knob.
