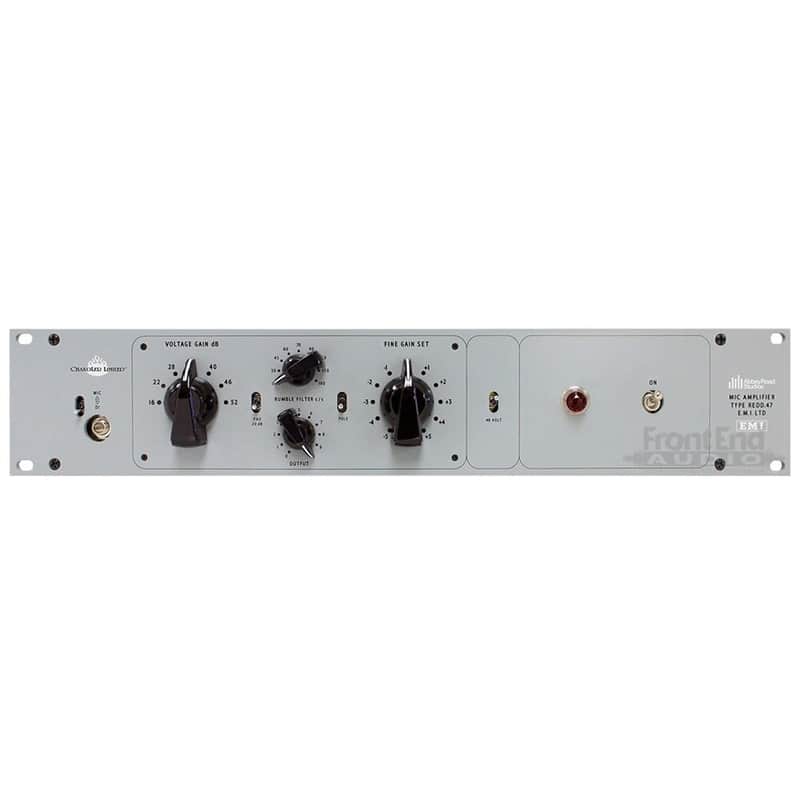

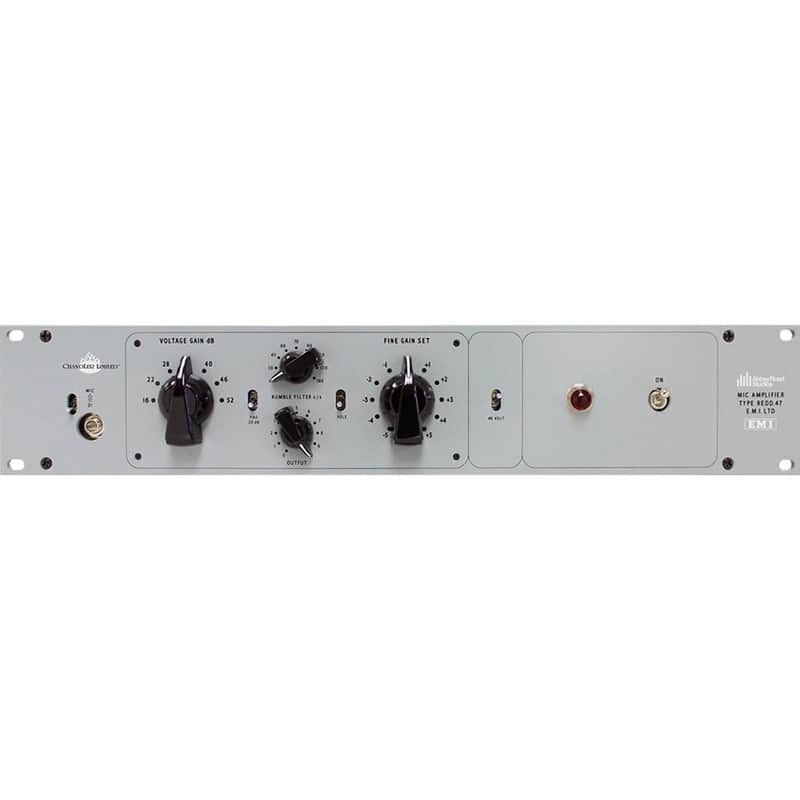

The Chandler Limited's REDD.47 microphone preamp is a recreation of the original valve line amplifiers used in Abbey Road Studios' heralded and incredibly rare EMI REDD.51 recording consoles circa 1959-1968.
Designed as a central component to the EMI REDD.51 recording console, the original REDD.47 line amplifier was used to amplify virtually every stage of the audio path (mic inputs, line inputs, echo sends and monitors). The REDD.47 lent its unmistakably punchy, aggressive character to music recorded at Abbey Road Studios between 1964 and 1968, including many tracks by The Beatles. The Chandler Limited REDD.47 preamp offers many additional benefits to the original design including increased gain, allowing a range of tonal options from pristine clean sound to classic rich, saturated tone with up to 2% harmonic distortion before clipping. The REDD.47 easily reproduces the distortions heard on The Beatles' "Revolution."
Chandler Limited's REDD.47 tube microphone preamp delivers the legendary sound of Abbey Road Studios' "Holy Grail" preamp, with extra features to meet today's recording studio standards.
Chandler Limited REDD.47 Preamp Features
It's THE BEATLES preamp from the EMI REDD.51 console - yes... the REAL one!
Stepped switch 16-52db selectable gain
Increased gain allows for 2% harmonic distortion effects before clipping
Selectable Hi-Pass "Rumble" Filter (30,45,60,70,90,110,130,180hz)
EF86, E88CC valve circuit
THE SOUND you've always wanted for your own, brought to you by those who would know: Chandler Limited!
Chandler Limited REDD.47 Preamp Specifications
CHANNELS: Mono
CIRCUIT: Tube (EF86, E88CC)

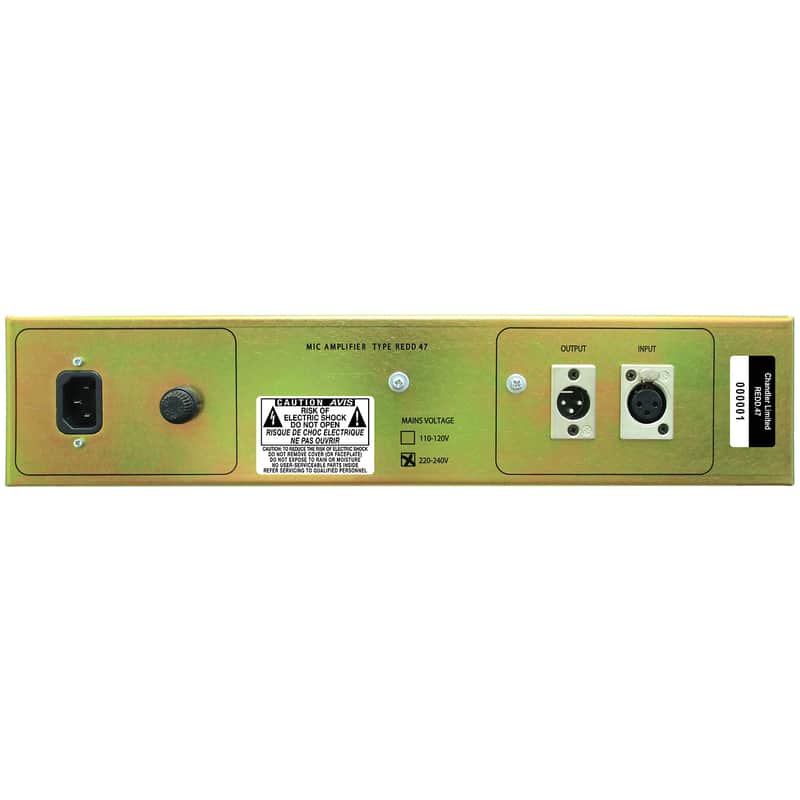

CONNECTIONS
Inputs: Mic/Line XLR (pin 2 hot), D/I (1/4")
Output: XLR (pin 2 hot)
I/O Topology: Transformer balanced I/O (custom wound)
CONTROLS
Voltage gain: Stepped 16-52db
Fine gain: variable +/-5db
Total Gain: +57db
Output control: variable
Rumble filter: Inductor based, switchable (30,45,60,70,90,110,130,180hz)
PAD: 20db, switchable
Phase: switchable
Phantom Power: +48v, switchable
POWER: Internal 120V / 60Hz power supply (factory pre-set)
Chandler Limited REDD.47 Preamp Includes
Chandler Limited REDD.47 Preamp
IEC Power Cable
Manual & Literature
Internal power supply
Manufacturer Warranty
