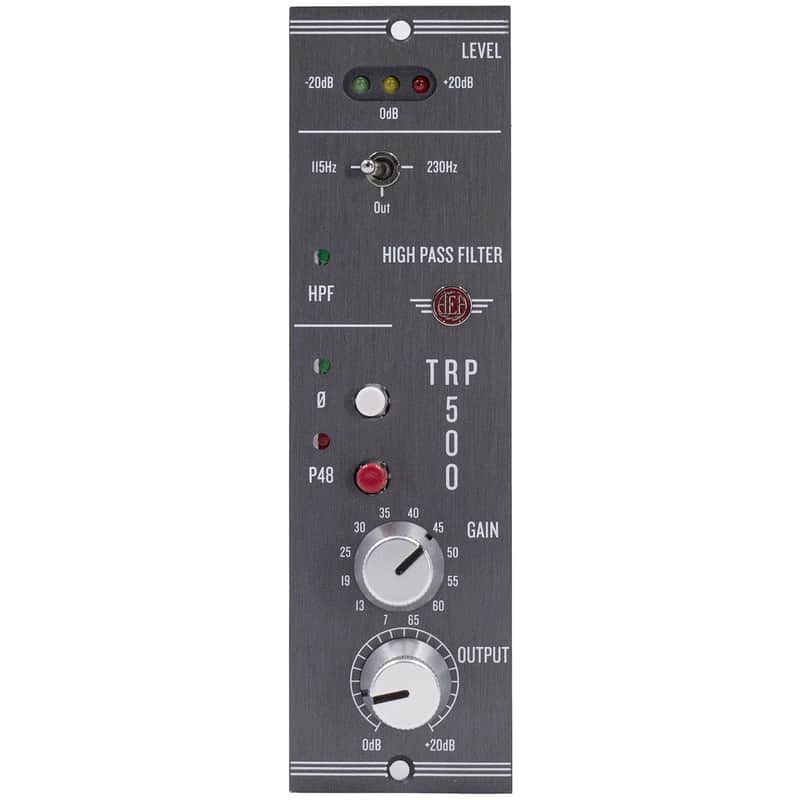

The AEA TRP500 500-Series Ribbon Microphone Preamp leans on the side of neutral but is unlike other clean preamps because of its rich and musical tonality. Optimized for ribbon mics, the TRP500 offers up to 85dB of effortless gain for any microphone.
The AEA TRP500 500-Series Ribbon Microphone Preamp is the first product in the AEA 3rd-generation of microphone preamps that has surpassed the limitations of 20th century electronics, allowing you to fully appreciate the sonic complexities of your microphone.
Enhance Your RibbonsBased on the circuit and topology of the company’s original AEA TRP preamp, the TRP500 500-Series Ribbon Mic Preamp has the low noise, musical sonics, and ultra-high gain and impedance (100,000 Ohms) that AEA is renowned for. The AEA TRP500 excels at drawing out the warmth and lush sound of ribbon mics as well as other top-level microphones. With up to 85 dB of quiet DC-coupled gain, minimal path architecture, and a gentle 115 Hz or 230 Hz high pass filter, this preamp puts as little as possible between you and your audience.
Handcrafted in PasadenaLike all AEA products, the TRP500 500-Series Ribbon Microphone Preamp is handcrafted in Pasadena, California from locally sourced parts. AEA is a family-owned company with a small crew of skilled technicians, many of whom are musicians themselves.
High Impedance Makes a Huge DifferenceThe ultra-high gain DC-coupled JFET circuit has two input impedances: 11,900 Ohms with phantom power “ON” and 100,000 Ohms with phantom power “OFF.” The 100,000 Ohm mode brings out the best in passive ribbons and tube mics, and also provides a unique balanced input for vintage, high-impedance dynamic mics. This versatility ensures the highest sensitivity, bandwidth, transient response, and clarity possible for a wide variety of microphones.
AEA TRP500 500-Series Ribbon Microphone Preamp Features
Single-channel, 500 series format
85dB of quiet, DC-coupled JFET gain
Ultra-high impedance (66,000 Ohms)
Switchable 115 Hz or 230 Hz high-pass filter
Switchable phantom power and polarity reverse
AEA TRP500 500-Series Ribbon Microphone Preamp Specifications
Max Gain at 1kHz: 85 dB of Gain, Balanced-in to Balanced-Out
EIN (Max Gain): < –128 dBu (22 Hz to 22 KHz, Unweighted, 40 Ohm Source), Typically -130 dBu
DC Current Draw: (From +16/-16V Rails) 130 mA
Frequency Response:
30 dB Gain: (+0/-0.6 dB from <10 Hz to 200kHz)
85 dB Gain: (+0/-1 dB <20 Hz to >100kHz), (+0/-2.5 dB <10 Hz to 200kHz)
THD+N: 0.0017% (1kHz, 22Hz-22kHz @30 dB Gain +4 dBu Output)
XLR Output Max Level: +28.5 dBu into 600Ω Load (before 1% THD)
Input Impedance: 11.9kΩ (with Phantom), 100kΩ (no Phantom)
Output Impedance: 50Ω
Max Input Signal Level: 21.5 dBu at Minimum Gain (Before 1% THD)
Mic Gain Control: 12-Position Switch Provides from +7dB to +65dB of Gain for the Preamplifier Circuit, as Measured Between the Input and Output When the OUTPUT Control is Set Fully Counterclockwise (0 dB)
Mic Output Trim: Output Potentiometer Provides from 0 dB (Unity Gain) to +20 dB of Gain
High Pass Filter Frequencies: 3-Position On-Off-On Switch Provides Switchable First Order Passive High Pass Filter (-6 dB Per Octave) with Cutoff Frequencies (-3 dB) at 115 Hz and 230 Hz
XLR Connector Polarity: Pin-1 is Ground, Pin-2 is High, Pin-3 is Low
LED Signal Level Indicators: The green LED Snaps On at -20 dBu to Indicate the Presence of Signal; the Yellow LED Snaps On at 0 dBu; the Red LED Snaps On at +20 dBu to Warn of Approaching Signal Overload, Which is 8 dB Prior to Clipping
Dimensions:
Front Panel: 0.125” (0.32 cm) Anodized Aluminum
Width: 1.5" (3.81 cm)
Depth: 6.8" (17.27 cm)
Height: 5.2" (13.21 cm)
Weight: 10.1oz (~0.29 kg)
AEA TRP500 500-Series Ribbon Microphone Preamp Includes
AEA TRP500 500-Series Ribbon Microphone Preamp
Power Cable
Manufacturer Warranty
