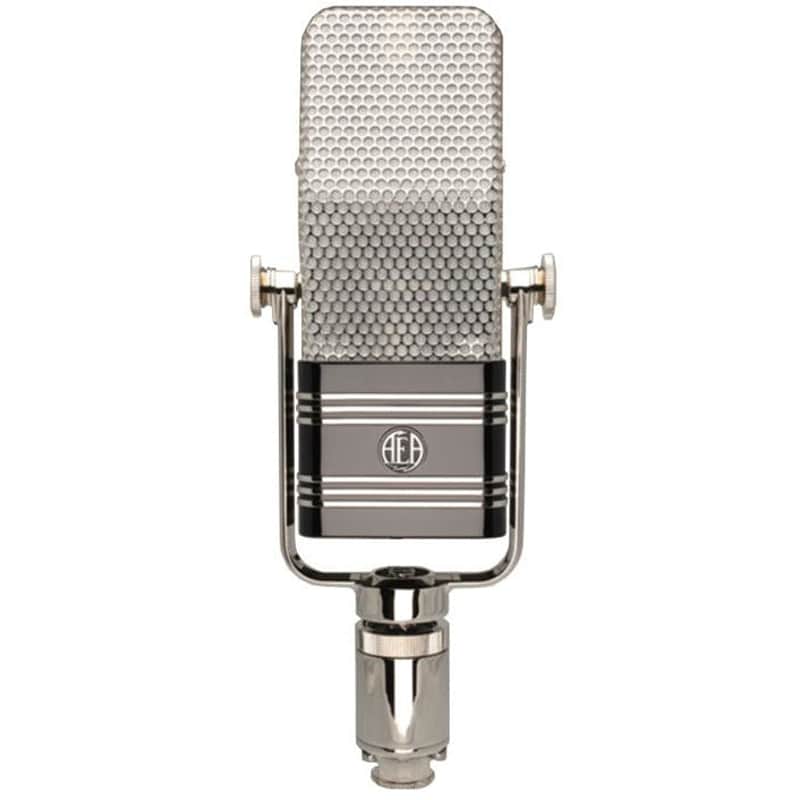

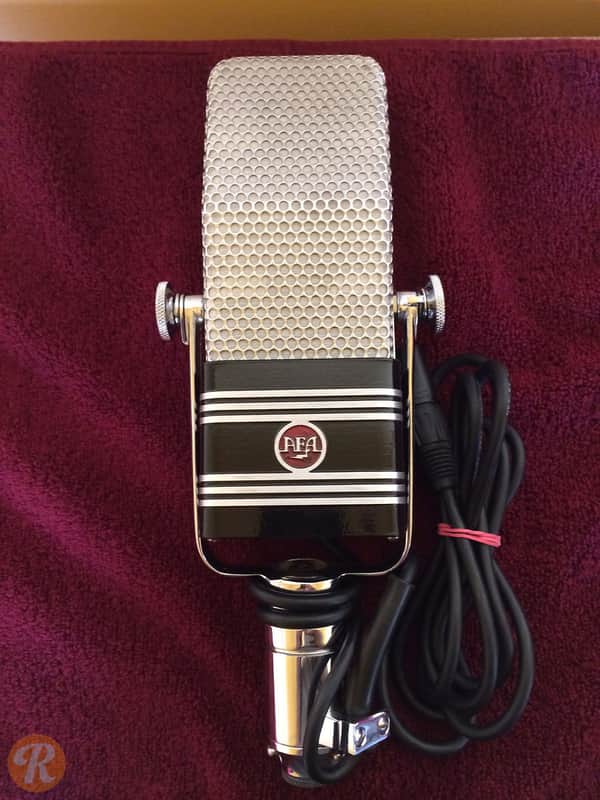

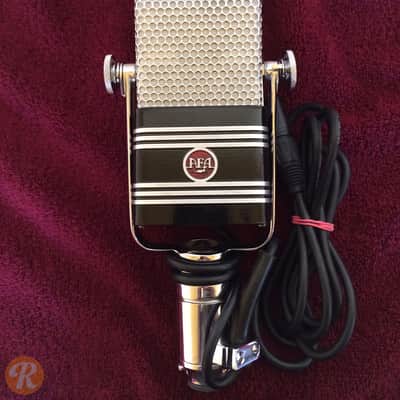

AEA R44C
The R44 from AEA is one of those rare mics that has remained relatively unchanged from its inception, and still sounds great some 75 years later. Wes Dooley, a specialist in ribbon mics of all kinds, has now restored the 44 type microphone to its rightful position in the studio. After tracking down the engineers who designed and built the original RCA 44, AEA acquired ribbon material, made the tooling and custom machined all the parts necessary to build the original RCA 44 B/BX design to its original specifications, just as it was in the 1930s. After years of painstaking work, AEA has again begun production of the most important ribbon mic of all time: the AEA R44C.
RCA 44 ribbon microphones have remained an essential part of studio life well after RCA stopped manufacturing them in 1955. The sound and response of the 44 B/BX were unlike anything else available, and was cherished for its smoothness, forgiving nature and unique tonal balance. As collectors began to buy up the supply of RCA 44's through the 90's, the availability of this wonderful ribbon mic to the studio was greatly endangered.
The 44 was RCA's best microphone from the 1930s into the '50s. Is AEA's R44 that good? Both listeners and measurements say that the R44 is better and AEA has been listening to both users and ex-RCA engineers for over 25 years. They start by using only ribbon material originally manufactured for RCA. This is the best way to ensure that AEA's R44 ribbon mics are as close as humanly possible to vintage RCA 44s.
Features
An accurate reproduction of the original RCA Ribbon Mic
Uses the same ribbon material as the original
Built to the highest studio standards possible
A single diaphragm Figure 8 ribbon microphone
High null-axis rejection
Custom AEA Transformer
High SPL capability, max level of 140dB plus above 200Hz
Low Self Noise
Consistent polar response
Operable in high humidity environments
Sounds equal to or better than the original RCA 44
Museum grade reproduction of the RCA 44B/BX
New-old stock (NOS) RCA ribbon material
Legendary character with more than 80 years of studio history
Full and rich sound; smooth highs and warm lows
‘X’ motor option delivers 6 dB more dynamic range for film scoring
Specifications
Operating Principle: Velocity microphone
Frequency Response: Below 30 Hz to above 20 kHz
Maximum SPL: 140 + dB SPL above 200Hz for 1% third harmonic
Output Sensitivity: 2.25 mV / Pa into unloaded circuit
Output Impedance: 270 ohms broadband
Recommended Load: 1.2 K ohm or greater
Powering: Not required or recommended
Polarity: Pin 2 high for positive pressure on the front of the microphone.
Connector: XLR-3M wired to a 2 meter captive cable
Polar Pattern: Native bi-directional pattern
Horizontal: Level changes with angle, frequency response is consistent, -90 dB null at 90 / 270 degrees
Vertical: Level changes with angle, reduced HF response above and below 0/180 degree axis, null at 90/270 degrees
Ribbon Thickness: 1.8 microns ( .0000018 meter ) of pure aluminum
Ribbon Width: 4.7 mm
Ribbon Length: 59.7 mm
Accessories Included: Custom storage/shipping case, stand adapter, manual and attached two-meter microphone cable
