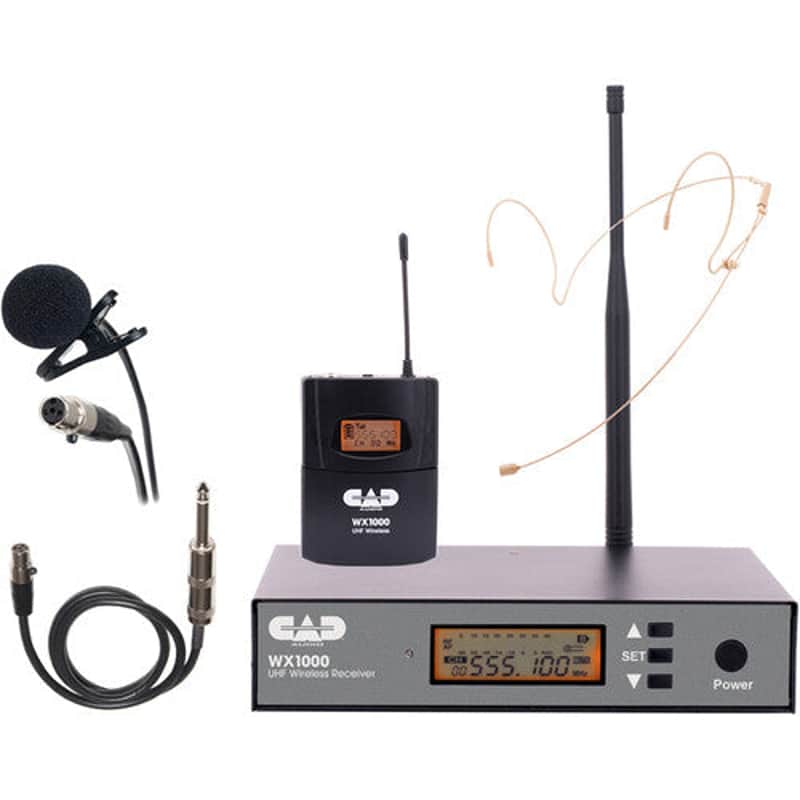

CAD WX1000BP Wireless Bodypack Microphone System with Lavalier/Headset/Guitar Cable (510 to 570 MHz)
Dorval, Canada
About this listing
Shipping Policy: Please note that we currently ship within Canada only. Offers and orders from outside Canada will not be accepted.
Key Features
For Presenters, Performers & Musicians
WX9 Cardioid Lavalier & WX7 Headset Mics
WX5 Guitar Cable
Lightweight Bodypack Transmitter
All-Metal Rackmount Receiver
100 Autoscan Frequencies
Large LCD Display
12-Hour AA Batteries
Rackmount Hardware
Expandable to 20 Mic Channels/295' Range
reat for a wide variety of applications, the CAD WX1000BP is a versatile rackmount wireless bodypack microphone system that includes a lavalier mic, a headset mic, and a guitar/instrument cable. Easy to use, it offers reliable transmission and quality audio to presenters, performers, clergy, instructors, and musicians working in business and educational settings, houses of worship, broadcast studios, or on musical stages.
Lavalier and Headset Mics Optimized for Lectures and Presentations
The WX9 lavalier microphone delivers a natural sound optimized for speech intelligibility. Its directional, cardioid pickup pattern helps to reject unwanted background sound and feedback, making it ideal for use onstage or in spaces with loud sound reinforcement.
The WX7 headset is discreet, stable, and easy to place over either ear. It provides improved clarity and additional protection against feedback when compared to a lavalier mic.
Guitar/Instrument Cable for Freedom Onstage
The heavy-duty WX5 cable connects your guitar, bass, or other instrument to the bodypack transmitter. The cable is terminated with a 1/4" connector on one end and a TA4F connector on the other.
Easy-to-Use System That's Quick to Set Up
Quick to set up at the press of a button, the frequency-agile receiver autoscans 100 selectable frequencies to locate a clean RF channel that's free from interference and delivers clear audio at a range up to 300'. Just use the Set button to effortlessly sync the receiver with the transmitter via IR, and you're ready to go.
The bodypack transmitter is equipped with a TA4M input connector to connect either the lavalier, headset, or guitar cable. It features a volume control to accommodate varying mic and guitar levels. The transmitter provides up to 12 hours of operation on two AA batteries, with a battery-level indicator on both the transmitter and receiver so you know when to replace the batteries.
Backlit LCD displays on the transmitter and receiver show frequency, mute status, battery life, and more.
The receiver's rear-panel connections include a balanced XLR and an unbalanced 1/4" output connector to connect to any mixing board or PA system.
The all-metal, half-rack receiver that can be rackmounted in portable flight cases or for permanent installations with the included hardware.
WX1000BP Wireless System at a Glance
Headset and lavalier microphones, plus guitar/instrument cable included
Frequency-agile design with 100 switchable frequencies
Up to 295' range between transmitter and receiver
XLR balanced and 1/4" unbalanced output connectors
For setups requiring multiple wireless microphones, up to 20 systems can operate at the same time
Rugged, all metal construction
Auto scan finds the optimal frequency setting
IR sync wirelessly matches transmitter and receiver frequencies
Transmitter and receiver feature low battery indicators
Transmitter utilizes 2 AA Batteries for over 12 hours of operation
Rackmounting hardware and antennal relocation kit included
CAD WX1000BP Specs
System
Wireless Technology
Analog UHF
Number of RF Channel Frequencies
100
Included Transmitters
1 x Bodypack
Diversity
Non-Diversity
RF Frequency Band
510 to 570 MHz
RF Channel Scanning
Auto-Scan
Max Operating Range
295.3' / 90 m (Line of Sight)
Max Transmitters per Band
20
Built-In Recorder
No
Control App Support
No
Latency
< 3 ms
Dynamic Range
>100 dB
Encryption
None
Modulation
FM
SNR
>85 dB
THD
<0.5 %
Receiver
Receiver Type
Tabletop / Rackmount
Mounting Options
Rackmount (with Included Hardware)
Rackmount Size
1 RU (1/2 Rack)
Antenna
1 x Rod, TNC (Rear-Mount)
Number of Audio Channels
1
Audio I/O
1 x XLR 3-Pin Male Balanced Output1 x 1/4" TS Female Unbalanced Output
Frequency Response
30 Hz to 18 kHz
Network I/O
None
Word Clock I/O
None
USB/Lightning Connectivity
None
Standalone Audio Interface Capable
No
Approximate RF Sensitivity
108 dBm
Power Requirements
AC/DC Power Adapter
AC/DC Power Adapter
VDC Included
DC Input Power
12 VDC at 1A
Display & Indicators
1 x Backlit LCD (AF Level, Channel, Mute, RF Level, Transmitter Battery Status)
Housing
Metal
Dimensions
16 x 12.1 x 2.8" / 40.6 x 30.7 x 7.1 cm
Weight
3.3 lb / 1.5 kg
Transmitter
Transmitter Type
Bodypack
RF Output Power
10 mW
Audio I/O
1 x TA4/Mini XLR 4-Pin Male Input (Lockable)
Included Cable Connector
1/4" TS
Auto-Level Control
No
Frequency Response
30 Hz to 18 kHz
Sync Method
IR
Antenna
1 x Flexible Whip, Fixed
Power Requirements
Battery
Battery Type
2 x AA
Approx. Battery Life
12 Hours
Display & Indicators
Backlit LCD (Audio Level, Battery Status, Channel, Signal Strength)
Housing
Metal
Microphone
Microphone Type
Headset
Sound Field
Mono
Capsule
Electret Condenser
Outputs
1 x TA4/Mini XLR 4-Pin Female (Lockable, on Attached Cable)
Microphone 2
Microphone Type
Lavalier
Sound Field
Mono
Capsule
Condenser
Polar Pattern
Cardioid
Outputs
1 x TA4/Mini XLR 4-Pin Female (Lockable)
Charging Case
Capacity
Not Specified by Manufacturer
