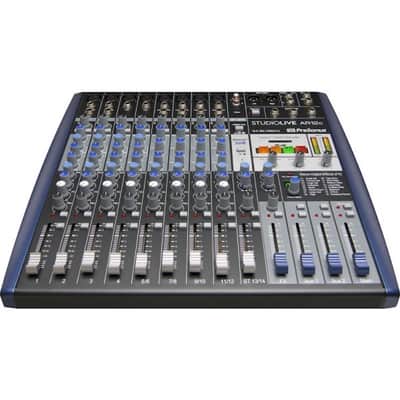

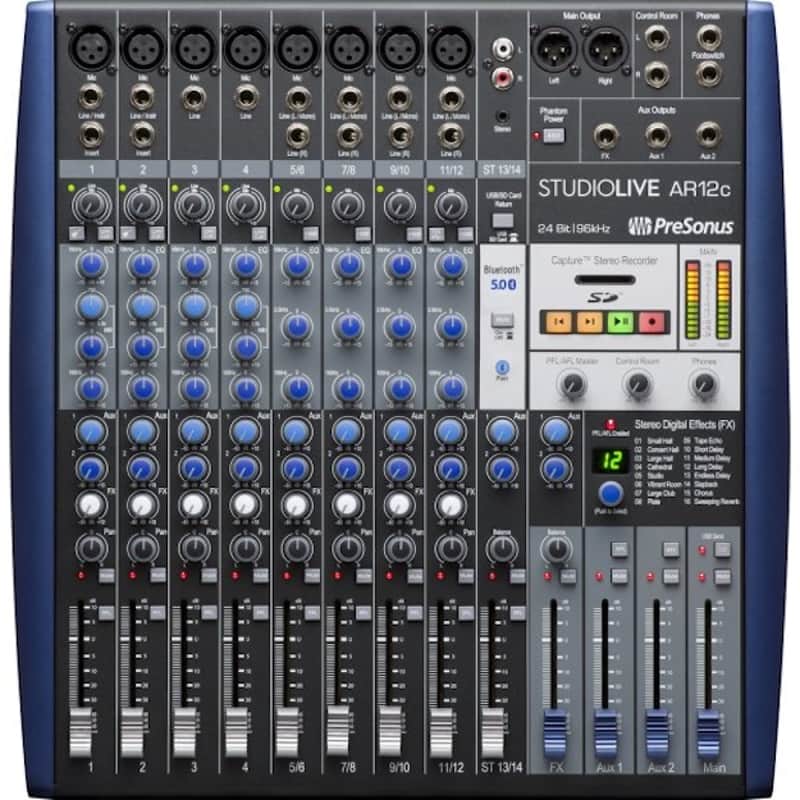

PRESONUS USB-C 14-Channel Hybrid Performance and Recording Mixer

Don’t let the classic analog mixer design fool you—the StudioLive® AR12c was built to record. With a pristine analog front-end, eight high-gain XMAX mic preamps, and a 14x4 24-bit, 96 kHz, USB-C compatible USB 2.0 audio interface.

Recording

14x4 24-bit/96 kHz, USB 2.0 (over USB-C™ connection) audio recording interface

Record every channel plus the main mix

2x2 SD recorder to capture the main mix

Supports SD™ and SDHD™ formats up to 32 GB

Mixing

14-channel analog mixer

8 balanced microphone inputs with XMAX mic preamps

2 insert points

2 instrument/line inputs

12 balanced line level inputs:

4 mono

4 stereo pairs

Stereo Super Channel (Ch. 13/14) with Bluetooth 5.0 input, RCA inputs, 1/8-inch stereo input, and switchable SD/USB stereo playback

4 mono and 4 stereo channels, each with level knob, pan, mute, PFL solo, highpass filter, and 3-band semi-parametric EQ

2 monitor buses with dedicated channel sends, AFL solo, and balanced TRS output

L/R Control Room outputs with level control

Headphone output with level control

Signal Processing

Highpass filter on every channel

3-band quasi-parametric EQ with sweepable mid-band on each mono channel

3-band semi-parametric EQ on each stereo channel

Stereo effects processor with 16 presets, dedicated send and return, and bypass footswitch jack

Mic/line boost on stereo channels for low-level input sources and consumer devices

Included Software

Capture™ live multitrack recording software

Studio One ® Artist recording and production software (DAW)

Studio Magic plug-in suite

Power

Internal power supply

Standard IEC power connector

Physical

Sturdy metal construction

60 mm faders

Optional rackmount kit
