TASCAM Porta 02 MKII Ministudio Multitrack 4-Track Cassette Recorder

Overview

This TASCAM Porta 02 MKII has been serviced, cleaned, calibrated, and tested, and is ready for use.

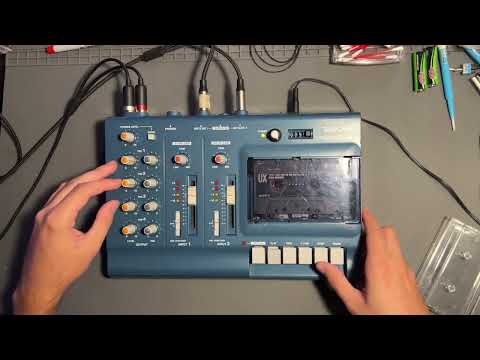

Recording and playback have been tested on all four tracks, and all core functions operate properly. A demonstration video is included with the listing showing recording and playback on all four tracks, along with the pitch modification in operation.

As with any analog cassette multitrack recorder, variations in frequency response and noise between tracks are normal.

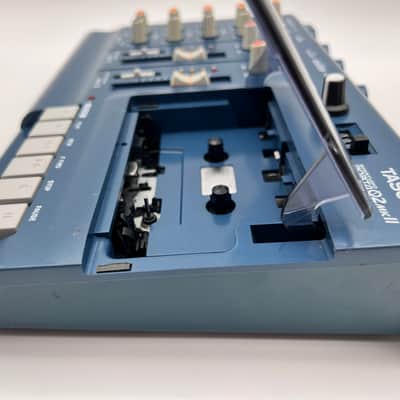

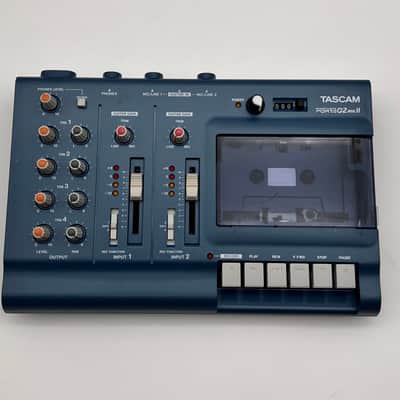

The unit is in great cosmetic condition with normal signs of use.

The headphone knob is a little scratchy.

Pitch Modification

This recorder has been modified with an adjustable pitch knob.

Adjusting the pitch knob will allow you to slow down the recording and playback speed of the cassette. The pitch knob can be adjust so low that the motor stops moving. The knob is pretty sensitive but can produce some interesting results when messed with.

The modification is demonstrated in the attached video.

Service Performed

Each recorder is completely disassembled, serviced, reassembled, calibrated, and tested before being listed for sale.

Mechanical Service:

• Complete disassembly, cleaning, and reassembly
• Replaced all belts with factory equivalents
• Treated pinch roller with rubber rejuvenator
• Oiled the capstan bearing for lower wow and flutter
• Oiled the motor bearing for a quieter motor and optimal performance
• Rebuilt broken tape counter

Electrical Service:

• Cleaned all switches, potentiometers, and faders

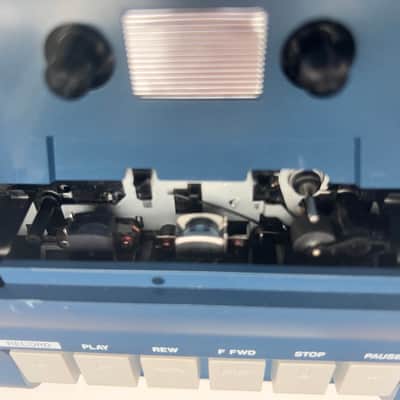

• Cleaned and demagnetized the tape transport for optimal performance
• Reflowed connector solder joints where needed to prevent intermittent connections caused by age and mechanical stress.
• Recapped all 4 tracks
• Recapped both MIC/LINE inputs
• Resoldered broken LED
• Repaired broken traces on mixer board

Calibration & Modification:

• Calibrated tape speed, playback level, record level, and record bias to ensure accurate recording and playback.
• Installed the pitch modification
• Measured wow and flutter at approximately 0.1% RMS (low)

Each unit includes a printed service form documenting any issues found, repairs performed, calibrations made, and the testing completed.

Testing

This recorder was tested by recording and playing back an entire side of a cassette tape on all four tracks. This test is performed a minimum of two times, totaling approximately 4–6 hours. During testing, music is recorded in stereo on two tracks at a time, making it easy to compare the recording and playback performance of each track for level, clarity, and consistency. Any issues discovered during testing are corrected before the recorder is listed for sale.

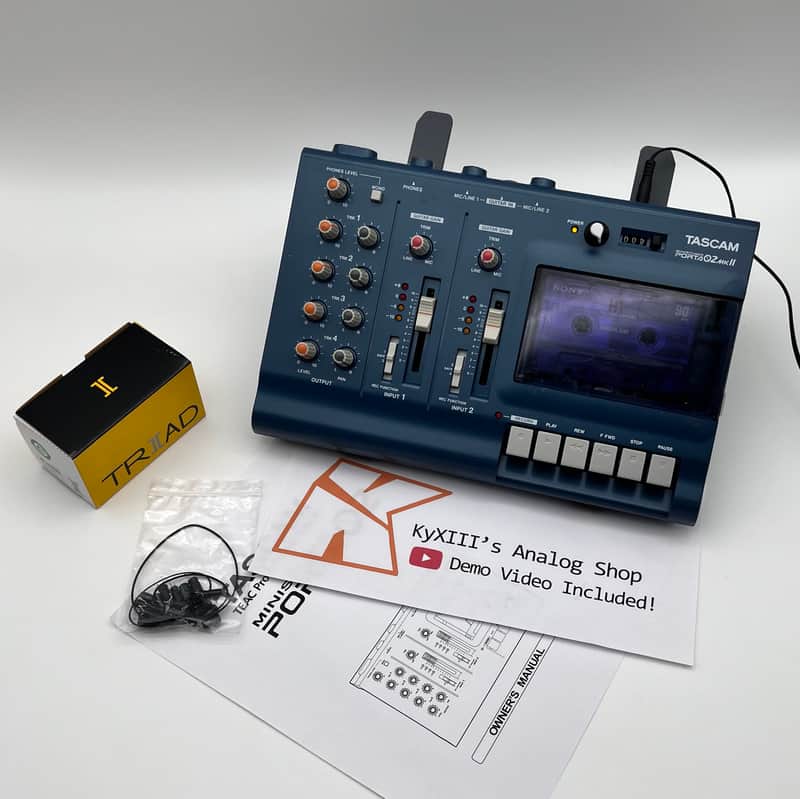

Included

• TASCAM Porta 02 Multitrack Cassette Recorder
• Printed instruction manual
• Original power adapter
• Printed service form


Shipping

The recorder is shipped via USPS with Reverb Safe Shipping (insured).

Each unit is tested once more immediately before packing. After testing, a confirmation message is sent before shipment.

Signature confirmation is required upon delivery.

Returns

This listing is sold AS-IS.

The recorder has been tested for the functions described above and demonstrated in the attached video.

Thanks for looking! If you have any questions, feel free to ask.

Serial Number: 0250963
