SSL 4000 E Racked Channel Strip - Original Vintage Cards (02/Brown Knob EQ) w/ External PSU - Rhoades Audio Designs (RAD)

SSL 4000 E Racked Channel Strip - Original Vintage Cards (82E02 Preamp / Brown Knob EQ 82E13 / 82E10 Dynamics) w/ External PSU - Rhoades Audio Designs (RAD)

Up for sale is a custom 1U racked SSL 4000 E Series Channel Strip, professionally converted and built by Rhoades Audio Designs (RAD).

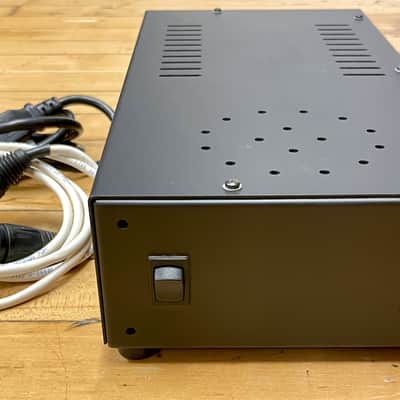

This unit is loaded with 100% genuine vintage Solid State Logic console cards pulled directly from an original 4000 E desk, housing a complete channel path, Mic/Line Preamp, "Brown Knob" EQ, and VCA Dynamics alongside an external dedicated power supply unit (PSU).

Condition & Functionality:

• Cosmetic & Mechanical Notes:
• • Line Gain Knob: Missing knob (the potentiometer shaft itself is intact and fully functional; just needs a replacement knob).

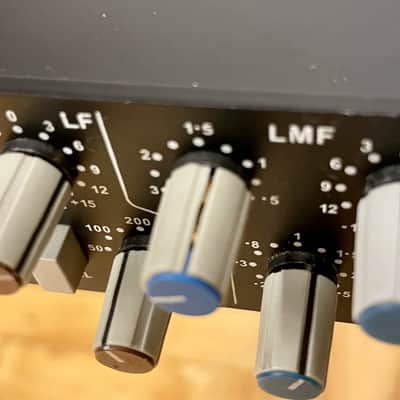

  • Mic Gain & LMF Q Knobs: Caps have cracks. They remain intact and functional, though they sit slightly loose on the pot shafts due to the age of the original vintage plastic.
  • Overall chassis and faceplate are in clean condition with standard minor wear.
• Operational: Tested and fully functional. All pots, switches, and meters operate as expected with clean audio pass-through and authentic console performance.

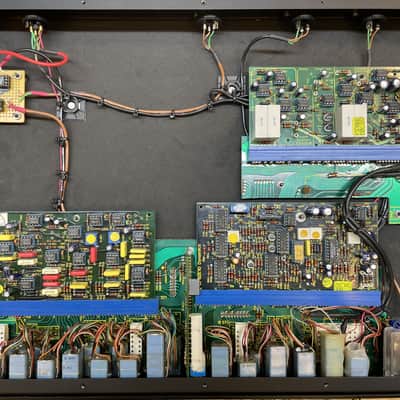

Internal Card Breakdown:

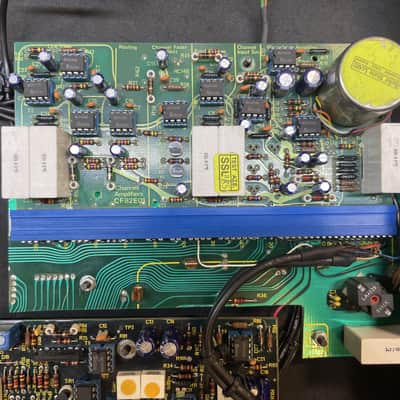

• Preamp Section (CF82E02): Classic vintage SSL Channel Amplifier PCB offering distinct, punchy mic and line input transformer-balanced tone with 48V phantom power and flip switches.

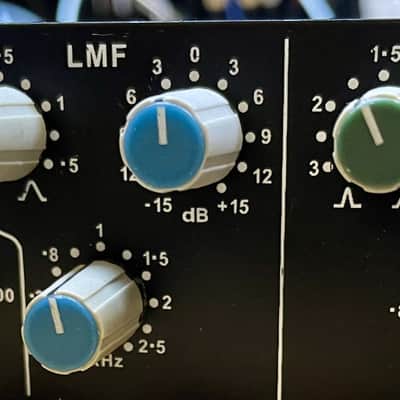

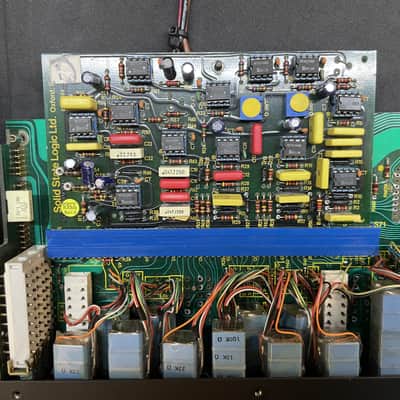

• EQ Section (CF82E13): The highly sought-after original "Brown Knob" 02 EQ. Renowned for its warm low-end, musical resonance, and classic early-80s analog grit on drums, bass, and electric guitars.

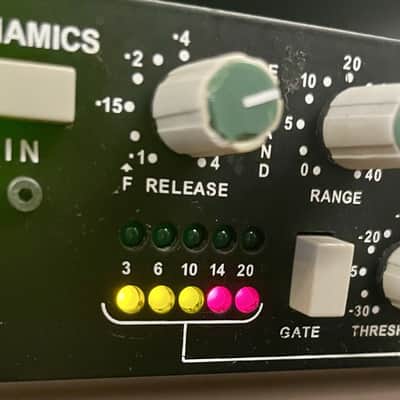

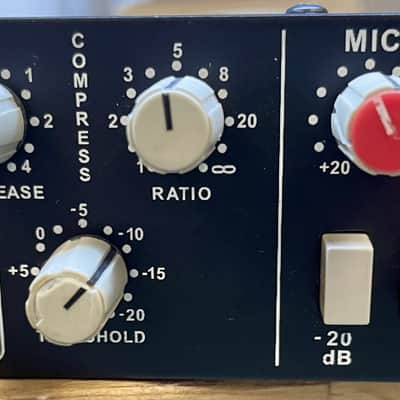

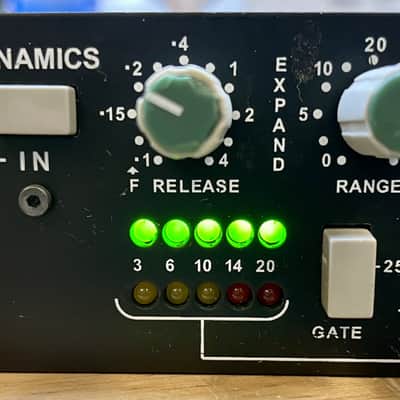

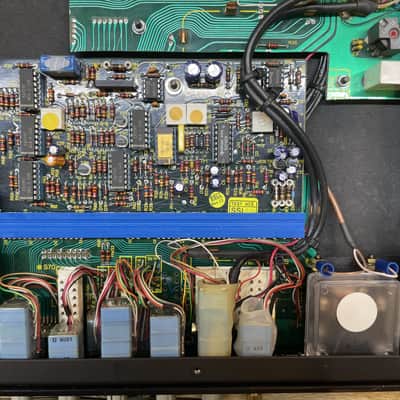

• Dynamics Section (CF82E10): Full VCA compressor/limiter and expander/gate circuit with classic SSL LED gain reduction metering.

Features & Build Details:

• Conversion by Rhoades Audio Designs (RAD)

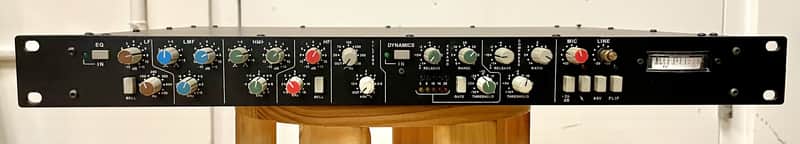

• Front Panel Controls: EQ In/Out, Dynamics In/Out, Mic/Line selection, Phase Reverse, 48V Phantom Power, Pad, VU Meter, and LED Gain Reduction display.
• Rear Panel I/O: Standard XLR connections for Mic Input, Line Input, Direct Line Output, and 4-pin DC Power input.
