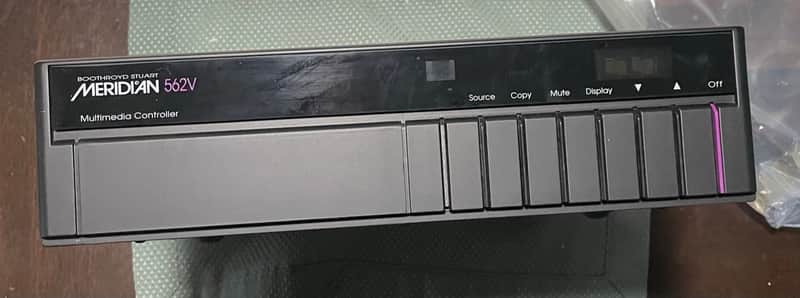

Meridian 562V.3 Multimedia Controller

The Meridian 562v is a classic audio-video control unit functioning as a digital preamplifier, analog-to-digital switcher, and video router. It features multiple digital and analog audio connections alongside composite and S-Video switching, designed to anchor vintage Meridian digital speaker systems or surround processors. [1, 2, 3, 4, 5]Audio Capabilities

• Digital Inputs: 5 coaxial cable inputs and 2 optical TOSlink inputs supporting up to 24-bit/96kHz precision.
• Analog Inputs: 7 phono inputs with a built-in high-quality stereo Delta-Sigma analog-to-digital converter (ADC).
• Outputs: Main coaxial digital, tape digital/optical, and analog connections for integrating recording devices and amplifiers. [1, 2]

Video Switching

• Composite Video: 6 unbalanced RCA inputs with dedicated main and tape outputs.
• S-Video: 4 mini-DIN inputs with full routing capability.
• Conversion: Built-in processing to convert S-Video signals down to composite for older display compatibility. [1, 2]

System Control

• Meridian Comms: Proprietary communication ports to link and sync with other Meridian 500-series components.
• RS232 Interface: 9-pin D connector for external computer setup and custom installation control.
• Triggers: 3.5mm jacks providing 8V DC output for external device switching. [1, 2, 3]
