The Nord Electro 7 elevates the Electro series with a powerful new Synth Section, dedicated per-section effects and a refined panel design with a high-resolution color display. Combining Nord's latest piano features with the Organ and Rotary Speaker from the acclaimed Nord Organ 3, the Nord Electro 7 offers exceptional versatility in a lightweight, stage-ready instrument.

FEATURES General

• New Panel design and new large color display
• Physical Drawbars on all models
• Pitch Stick and Modulation Wheel on 73 and HP models
• HP model - new 73-key Kawai Triple Sensor Hammer Action keybed
• Expression Pedal Assign, enabling pedal control of Synth Filter and effect parameters

Organ Section

• B3, B3 Bass, Vox, Farfisa, Soft B3 and Pipe organs from Nord Organ 3
• Rotary Speaker emulation from the Nord Organ 3
• 3 mic positions for Rotary Speaker
• Physical Drawbars with LEDs on all models

Piano Section

• Compatible with the Nord Piano Library
• Push Encoder for selecting Category and Sounds
• Dynamic Compression, Unison, Timbre

Effects Section

• Dedicated effects per section
• Rate and Amount for Modulation Effects
• New Spring reverb
• New Amps (Brit and Suitcase)
• Global Reverb with per layer Send

Synth Section

• Samples, Analog waveforms and FM synthesis
• Push Encoder for selecting Category and Sound
• Vibrato with adjustable rate, amount and delay
• Mono, Legato and Glide
• Unison
• Low-pass filter with Resonance control
• FM Partial and FM Amount
• Dual envelope for Amp and Filter/FM
• Compatible with the Nord Sample Library

HIGHLIGHTS General

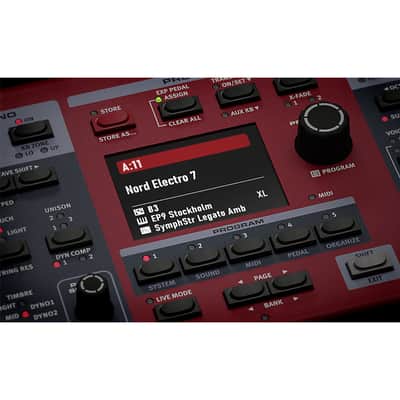

The new panel design, paired with a high-resolution color display enhances ease of use. Sound selection, settings and performance controls are easily accessible for a quick and intuitive workflow.

• Pitch Stick and Modulation Wheel on 73 and HP models: The Electro 7 73 and HP models feature Pitch Stick and Modulation Wheel for additional real time control.

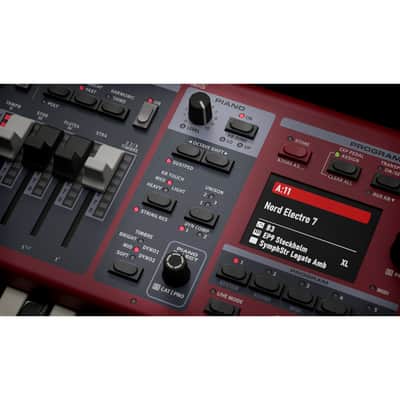

• Physical Drawbars with LEDs on all models: All Electro 7 models feature Physical Drawbars with LED indicators for both visual and tactile feedback and hands-on experience.
• New HP model with Kawai Hammer Action: The Electro 7 HP model introduces a new lightweight triple sensor keybed developed in collaboration with Kawai. Carefully balanced for playability and portability, the new Kawai keybed delivers excellent responsiveness for acoustic and electric pianos.

Organ Section

The Organ Section is based on the Nord Organ 3 engine and features stunning recreations of classic tonewheel, transistor, and pipe organs as well as the latest generation of Nord's acclaimed Rotary Speaker emulation with multiple microphone perspectives.

• B3: The B3 model features three different tone wheel modes ranging from the clean sound of a factory new unit to a road worn vintage character with increased tone wheel cross talk and leakage. The B3 Percussion effect includes a Poly mode, which enables polyphonic use of the Percussion even when holding chords or playing legato.
• Vox: The iconic sound of the Vox organ has been refined even further for the Nord Electro 7, with revamped waveform shapes and filters as well as updates to both the key click and vibrato character.
• Farfisa: The new generation Farfisa model conveys the character of the original tone generators and filters with great precision, including the complex filter interactions when combining registers.
• Soft B3 and Pipe: The Soft B3 model is based on the B3 tone wheel organ, but without the key click and other artifacts, for a softer and more mellow sound. The Pipe model faithfully recreates a set of principal pipe organ ranks.
• Vibrato and Chorus Scanner: The new vibrato and chorus captures the unique qualities of the original instruments, offering either the gentle character of a '50s B3 chorus scanner or the deep modulation of a '70s instrument.
• Rotary Speaker emulation: With a brand new approach to recreating not only the classic rotary sound, but also the characteristics of both the amp and speakers, the Nord Electro 7 features the exceptional Rotary Speaker emulation from the Nord Organ 3.
• >Microphone perspectives: The Nord Electro 7 offers three microphone positioning options corresponding to popular ways of reproducing the classic rotary speaker sound, both on stage and in the studio. These variations in microphone placement affect both the perceived movement as well as the tonal character of the rotary speaker, ranging from punchy and present to smooth and open.

Piano Section

The Nord Electro 7 contains a large selection of Grands, Uprights and Electric Pianos from the exclusive Nord Piano Library along with new features such as Dynamic Compression, Unison and Timbre. Nord's state-of-the-art sampling technique captures the extraordinary nuances and real character of the source instruments.

Nord Piano Library

In addition to the factory sounds, all sounds in the Nord Piano Library can be easily transferred to your instrument using the Nord Sound Manager software.

• Compatible with the Nord Piano Library
• Dynamic Compression
• Unison
• Timbre
• String Resonance

Synth Section

A brand new Synth Section introducing Analog Waveforms and FM synthesis alongside high-quality Samples from the Nord Sample Library. The Synth Section includes Mono, Legato and Glide modes for expressive performance control. Low-Pass Filter with resonance and dual ADR envelopes for Amp and Filter/FM Amount designed for exceptional real time control.

Nord Sample Library

The Nord Sample Library is an extensive collection of premium samples, including Spitfire Strings, Supreme Horns, Mellotron and Symphobia. Samples can be easily downloaded and transferred to your instrument using the Nord Sound Manager software.

• New Analog waveforms and FM synthesis
• Sample Synth
• Mono, Legato and Glide
• Low-pass filter with resonance
• ADR envelopes
• Compatible with the Nord Sample Library

Effect Section

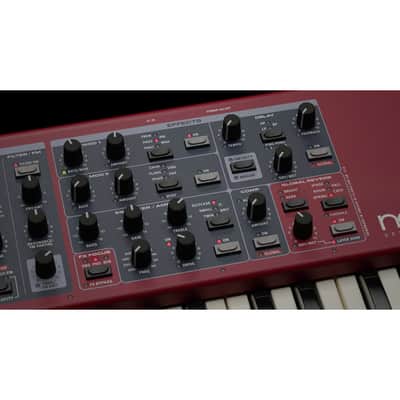

The Nord Electro 7 has an expanded new Effects section per Layer. The wide range of Effects includes brand new types of Reverb, Delay, Amps and Modulation effects.

Reverb, Delay and new Amplifier models

The Nord Electro 7 comes with a new authentic Spring Reverb, Brit and Suitcase amplifier models and a Delay effect including a vintage-style Analog mode with three selectable feedback filters for creative control.

Modulation effects

The Modulation effects include classics such as Chorus, Phaser and Flanger, each modeled after legendary hardware units, along with Ring Modulation for a variety of creative and experimental sounds and a versatile Tremolo effect.

• Dedicated Effects per Section
• New Spring Reverb
• Global Reverb with Layer Send, Chorale and Bright/Dark mode
• New amplifier models, including Brit and Suitcase
• Modulation Effects with Rate and Amount controls
• Delay with Feedback Filters, Ping-Pong, Analog Mode, Tap tempo and Global option
• Dedicated Compressor with Amount control
• 3 band EQ with sweepable mid

SPECIFICATIONS General

• Color display
• Organ, Piano and Synth sound sections
• Seamless Transitions
• Split Point Crossfades
• Pitch Stick and Modulation Wheel on 73 and HP models
• 20 banks with 25 programs - 500 locations
• Live Mode: 5 Live programs
• Selectable split point with LED indication (9 locations)
• Organize for programs
• Global Transpose: +/- 6 semitones
• Global Fine-tune: +/- 50 Cents
• Program Transpose: +/- 6 semitones
• MIDI over USB
• 61/73-key semi weighted waterfall keybed
• 73-key Triple sensor Kawai Hammer Action Portable keybed
• External keyboard feature (Aux KB)
• Expression Pedal Assign, enabling pedal control of Synth Filter and many effect parameters

Keybed

• Nord Electro 7 61: 61-key (5 octaves, C-C) Semi Weighted Waterfall keyboard
• Nord Electro 7 73: 73-key (6 octaves, E-E) Semi Weighted Waterfall keyboard
• Nord Electro 7 HP: 73-key (6 octaves, E-E) Triple sensor Kawai Hammer Action Portable keyboard

Organ Section

• B3, B3+Bass, Soft B3, Vox, Farfisa and Pipe model with full polyphony
• B3 Percussion Controls with Poly option
• Vibrato/Chorus with B3 Deep mode
• Adjustable percussion level and percussion decay
• 3 Tonewheel modes: select the level of "vintage" desired
• 2 Organ manual Presets and Live Drawbars
• Physical Drawbars with LED indicators
• Mount for Half-Moon Switch on Electro 7 61/73

Piano Section

• Categories: Grand, Upright, Electric, Digital/Layer, Clav/Harpsichord and Misc/Mallet
• Pianos can be added, replaced and organized using the Nord Sound Manager
• String Resonance
• Timbre settings - individually tailored for acoustic, electric and clavinet sounds
• 3 KB Touch settings
• Dynamic Compression for even sound level without altering the tonal character
• Unison with 3 amount options
• 120 Voices polyphony for Piano Library sounds.

Synth Section

• Sample, Analog and FM synthesis
• Samples can be added, replaced and organized using the Nord Sound Manager
• Preset library for Analog and FM sound
• Amp and Filter/FM ADR/ASR envelopes
• Velocity and Amount controls for Filter/FM envelope
• Low Pass Filter with Cutoff and Resonance controls for Analog and Sample sounds
• Amount and Partial controls for FM
• Mono, Legato and Glide options
• Unison with 3 amount options
• 3 Dynamics/amp velocity options
• Vibrato with adjustable rate, amount and delay
• Synth Vibrato button for real time control
• 30+ voice polyphony

Rotary Speaker

• Rotary Speaker emulation from Nord Organ 3
• Close, Wide and XY Mic Position options
• Bass Wide (stereo) option
• Dedicated tube Drive control
• Fix Angle option for Stop position (user adjustable)

Effect Section

• Dedicated Effects for Organ, Piano and Synth
• FX Focus with FX Bypass option
• Expression Pedal can be assigned to most effect parameters
• Mod 1:
  • Pan1 (Soft), Pan2 (Hard), Tremolo, Wah and Ring Modulator
  • Dedicated Rate and Amount Controls
• Mod 2:
  • Phaser, Flanger, Chorus, Vibe and Ensemble
  • Wide option for stereo width
  • Dedicated Rate and Amount Controls
• Equalizer/Amp Simulations:
  • Twin, Small, Suitcase, JC and Brit amp models
  • Drive
  • Three band EQ, with sweepable mid. +/- 15 dB gain/attenuation
• Delay:
  • Tempo with Tap function
  • Feedback and Dry/Wet controls
  • Low Pass, High Pass and Band Pass feedback filter options
  • Ping Pong with 3 amount options
  • Analog mode
  • Global mode
• Compressor: Amount control and Global option
• Global Reverb:
  • Spring, Room, Stage, Hall and Cathedral reverb types
  • Spring Reverb placed before Rotary Speaker
  • Chorale option for all reverb types
  • Bright/Dark options
  • Dry/Wet control with Layer Send mode for individual control of reverb level per section

Connections

• 2 Audio outputs L & R - ¼", 6,35 mm jacks, unbalanced
• 1 Monitor input - 1/8", 3,5 mm stereo jack
• 1 Headphone output - ¼", 6,35 mm stereo jack
• 1 Expression pedal input - ¼", 6,35 mm TRS stereo jack
• Sustain Pedal - ¼", 6,35 mm jack. Compatible with Nord Sustain Pedal 2 (continuous sensor), Nord Triple Pedal 1 and switch type pedals
• Rotary Control/Foot Switch - ¼", 6,35 mm jack.
• Use a momentary pedal or a switch type pedal.
• MIDI In - 5 pin DIN connectors
• MIDI Out - 5 pin DIN connectors
• USB - type B connector for USB MIDI, Software Update and Sound Transfer
• Power Cord with IEC C14 connector

Included Accessories

• User Manual
• Power cord

Dimensions

• Nord Electro 7 61: 901 mm (35.5") x 104 mm (4.1") x 294 mm (11.6")
• Nord Electro 7 73: 1066 mm (42") x 104 mm (4.1") x 294 mm (11.6")
• Nord Electro 7 HP: 1070 mm (42.1") x 130 mm (5.1") x 341 mm (13.4")

Weight

• Nord Electro 7 61: 8.3 kg (18.3 lbs)
• Nord Electro 7 73: 9.5 kg (20.9 lbs)
• Nord Electro 7 HP: 13 kg (28.66 lbs)
